Catalog excerpts

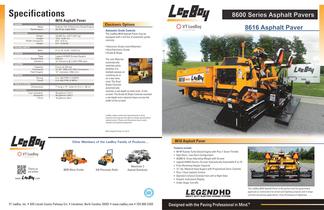

8616 Asphalt Paver Kubota Tier 3 Electronic Diesel Engine 99 HP @ 2,600 RPM Width (transport) Height PAVING WIDTH Basic SCREED Type Screed Heat Vibration Legend 816HD Screed System Electric (2) Vibrators @ 2,200 VPM each Capacity Conveyors Feed Augers 9 tons (8,164 kg) (2) 20” (508 mm) Slat Conveyors 12” diameter (356 mm) SPEEDS Paving Travel TRACK SYSTEM Dimensions CAPACITIES Fuel, standard Hydraulic Citrus 30 gallons (114 l) 40 gallons (190 l) 10 gallons (38 l) Electronic Options Automatic Grade Controls The LeeBoy 8616 Asphalt Paver may be equipped with a full line of automatic grade controls: • Electronic Grade (Joint Matcher) • Dual Electronic Grade • Grade & Slope The Join Matcher automatically matches joints whether it is multiple passes on a parking lot or on a two-lane road. The Dual Grade Controls automatically maintain a set depth on both ends of the screed. The Grade & Slope Controls maintain a set depth and a desired slope across the width of the screed. LeeBoy makes continuous improvements to all its products and reserves the right to change specifications without notice. Photos and illustrations may contain standard and optional equipment. 8616 Asphalt Deck Configuration •High Deck / Low Paver Maximizer 3 Asphalt Distributor •99 HP Kubota Turbo Diesel Engine Features include: SMART THROTTLE PLUS-1 • 9920,000 lbs Gross Operating Weight with Screed Throttle • HP Kubota Turbo Diesel Engine with Plus-1 Smart • Legend / Low Electric Screed • High Deck816HDDeck Configuration • 8' to 15' hydraulically extendable • 20,000-lb. Gross Operating Weight with Screed • 9-ton Receiving Hopper Capacity • Legend 816HD Electric Screed, Hydraulically Extendable 8’ to 15’ • 12-inch diameter Material Feed • 9-ton Receiving Hopper Capacity Augers with Proportional Sonic Augers • 12” dia. Material FeedControlswith Proportional Sonic Controls • Plus 1 Dual Joystick Control • Plus-1 Dual Joystick Control 110 HP Cummins Tier 3 Diesel Engine • Graphic Instrument Display • Operator’s Choice Controls from Left or Right Side 10’ • Operator ‘s Choice Controls • Graphic Instrument Auger Cut-offs • LeeBoy ‘s Under Display • Under Auger Cut-offs The LeeBoyLeeBoyAsphalt Paver is the the perfect tool for government The 8616 8616 Asphalt Paver is perfect tool for government agencies or contractors on street and highway projects and inin large agencies or contractors for street and highway projects and large commercial paving applications. commercial paving applications. From Driveways to Highways……
Open the catalog to page 1Operational Flexibility Large 12” Diameter Auger Feed and Non-Contact Auger Controls Legendary Screed Performance Infinitely Variable Widths LeeBoy Legend 816HD Screed System Cut-off plates enable varying paving widths as narrow as 1’ and as wide as 15’. Heavy-duty auger motors and 12” diameter feed augers (made of 5/8” AISI 4140 heat-treated steel) move material to the screed extensions. Dual vibrators enhance mat quality and adjustable extensions eliminate seams. Our heavy-duty Legend 816HD Screed System is standard on the 8616 and comes with an electrically heated main screed and...
