VT LeeBoy, Inc.
8515 Conveyor Paver

8515 Conveyor Paver

Product catalog summary

Operational Flexibility
The LeeBoy 8515 Asphalt Paver features large 12” augers that feed a 15’ Legend Screed. It includes sonic auger controls for automatic asphalt feeding, allowing for infinitely variable paving widths from 1 to 15 feet. The system is equipped with heavy-duty auger motors and dual vibrators to enhance mat quality.

Electronic Control Options
The paver can be equipped with automatic grade controls, including Electronic Grade, Dual Electronic Grade, and Grade and Slope controls. These systems ensure precise depth and slope maintenance during paving operations.

Engine and Power
Powered by an 87 HP Kubota Diesel Engine, the 8515 offers a two-speed hydrostatic drive and dual operator stations. The paver is designed with a high-deck/low-deck configuration to meet specific operational needs.

Design and Construction
The paver includes a self-cleaning crawler track system, heavy-duty radius hopper wings, and wide feed conveyors for efficient asphalt delivery. The Legend Screed System features propane burners and adjustable hydraulic screed extensions for seamless mat production.

Specifications
The 8515 has a paving width of 8 to 15 feet, a 7.5-ton hopper capacity, and is equipped with dual 2,400 VPM vibrators. It features a robust track system and a heavy-duty undercarriage designed for durability and performance.

Additional Features
Optional features include the Legend Plus Electric Heated Screed, single or dual sonic grade control, and a vandalism package. The paver is designed with the paving professional in mind, offering reliability and ease of maintenance.

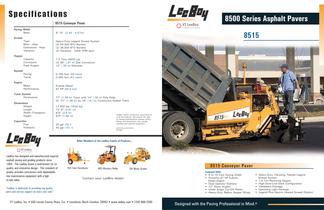

Catalog excerpts

Paving Width Basic 8-15Ғ (2.44 - 4.57m)Heavy-Duty Legend Screed System(2) 54,000 BTU Burners (2) 36,000 BTU Burners (2) Vibrators - 2400 VPM each7.5 Tons (6804 kg)(2) 36 (.91 m)Slat Conveyors12Ԕ (.35 m)Diameter0-160 fpm (49 mpm)0-265 fpm (81 mpm)Kubota Diesel87 HP (64.8 kw)77 (1.96 m)Track with 14Ԕ (.36 m)Poly PadsOr, 77 (1.96 m)by 16Ԕ (.41 m)Continuous Rubber Track17,500 lbs (7938 kg)12 6Ҕ(3.81 m)86Ҕ(2.6 m)66Ҕ(1.98 m)20 gal (76 l)40 gal (151 l) Screed Hopper Speeds Type Main - Heat Extensions - Heat Vibration Capacity Conveyors Feed Augers Paving Travel > Engine Make Performance Track System...
