Catalog excerpts

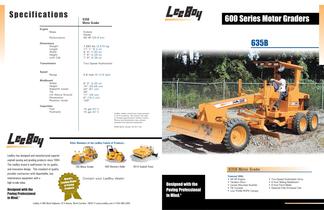

LbeBbi/ 600 Sries Motor Graders Spcifications 635B Motor Grader Engine Make Performance Kubota Diesel 48 HP (35.8 kw) Dimensions Weight Length Width Height with Cab 7,880 lbs (3,574 kg) 17' 1" (5.2 m) 6' 0" (1.83 m) 7' 6" (2.29 m) 7' 9" (2.36 m) Transmission Two Speed Hydrostatic Speed Range 0-8 mph (0-12.9 kph) Moldboard Width Height Sideshift (total) Tilt Lift Above Ground Penetration Rotation (total) 8' 0" (2.44 m) 14" (35.56 cm) 24" (61 cm) 30o 11" (28 cm) 6" (15.2 cm) 100o Capacities Fuel Hydraulic 15 gal (57 l) 15 gal (57 l) 635B LeeBoy makes continuous improvements in ail its products. We reserve the right to change specifications without notice. Photos and iiiustrations may contain standard and optionai equipment. 635B Motor Grader 03-05-7.5K LBgBOif 5 9 ioy Family of Pro LeeBoy has designed and manufactured superior asphalt paving and grading products since 1964. The LeeBoy brand is well-known for its quality and innovative design. This standard of quality provides contractors with dependable, low maintenance equipment with a high re-sale value. 400 Vibratory Roller 8515 Asphalt Paver 785 Motor Grader 635B Motor Grader Contact your LeeBoy dealer: Featured With: 驕 48 HP Engine Tandem Drive Օ Center Mounted Scarifier Tilt Console Օ Low Profile ROPS Canopy Two-Speed Hydrostatic Drive Օ 8 Foot Sliding Moldboard 6 Foot Front Blade Օ Optional Fully Enclosed Cab / Worttfs \ ieaiHngMaW» ofPavingVpooicts / Designed with the Paving Professional in Mind.® Designed with the Paving Professional in Mind.® LeeBoy ﯕ 688 North Highway 16 Denver, North Carolina 28037 Օ www.LeeBoy.com (704) 966-3300
Open the catalog to page 1LbcBbii Best In Class Features and Options Sliding Moldboard and Front Blade Articulated Design The LeeBoy 635B Series Motor Grader is designed with an 18 degree articulation in either direction. This articulation gives the 635B excellent maneuverability in tight spaces with its nine (9) foot inside turning radius. The 635B Motor Grader is equipped with all the tools necessary for fine grading in confined areas. The 8 foot sliding moldboard has a total sideshift reach of 24 inches. This feature enables the operator to shift the blade in or out of hard to reach areas. The moldboard also...
