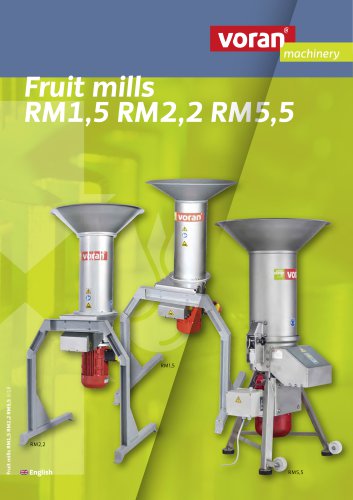

Fruit mills RM 1,5 RM 2,2 RM 5,5

Product catalog summary

Overview of Fruit Mills RM Series
The document provides detailed information on the RM series of fruit mills, specifically models RM 1.5, RM 2.2, and RM 5.5, manufactured by voran Maschinen GmbH. These mills are designed for processing various fruits and vegetables, suitable for distilleries and juice production.

Specifications

RM 1.5: Base model with a centrifugal mill and exchangeable stainless steel screens. It is ideal for mashing pomaceous fruit, stone fruit, and berries. It has a rated throughput of 650 kg/h and requires a 400 V/50 Hz electrical connection.
RM 2.2: Compact and efficient, suitable for similar applications as RM 1.5, with additional capability for processing quinces. It has a rated throughput of 1,000 kg/h.
RM 5.5: The universal device with replaceable screens, allowing for varied mash fineness. It is suitable for a wide range of fruits and vegetables, with a rated throughput of 4,200 kg/h.

Technical Features

All models feature a sturdy mill drive unit, stainless steel construction, and options for different screen sizes to accommodate various fruits.
RM 5.5 includes easy cleaning features and rollers for mobility.

Recommendations

For higher performance in automated processes, the document recommends using the combined WA LC 40/ WAR 65 and SA 200 systems.
Universal crushers are available for processing other food items like bread residues, grains, or nuts.

Company Background
Voran Holding is a mid-sized company based in Pichl bei Wels, Austria, known for its quality and innovation in the food processing sector. The company employs around 160 workers.

Contact Information
For more details, customers can contact voran Maschinen GmbH via phone or email, with contact details provided in the document.

Catalog excerpts

RM1,5—Base model Centrifugal mill with exchangeable stainless steel screens for setting the grinding fineness. Ideal for mashing for distilleries. Suitable for pomaceous fruit, stone fruit and berries. Suitable for producing cold-pressed fruit and vegetable juices. Sturdy mill drive unit Solid steel profile frame for added stability (optional)

Open the catalog to page 2

RM 2,2 — Compact and efficient Centrifugal mill with exchangeable stainless steel screens for s etting the grinding fineness. Ideal for mashing for distilleries. Suitable for pomaceous fruit, stone fruit and berries. The centrifugal mills RM 2,2 and RM 5,5 can also be used for processing quinces. Suitable for producing cold-pressed fruit and vegetable juices. Achieve more with voran® We recommend our combined WA LC 40/ WAR 65 and SA 200 for higher performance in automated processes. In addition to this, we also offer universal crushers for rocessing foods such as bread residues, grains or nuts....

Open the catalog to page 3

Centrifugal mills with replaceable screens. This makes it possible to achieve any desired mash fineness — ideal for the mashing for distilleries. The choice of the most diverse crushing tools and grinding screen enables this mill to also be used for the production of all kinds of fruit and vegetable juices. 33Different screens 33Short rotor 3360-mm foot extension for mash trough 33Corresponding mash troughs available in the sizes 200 l (image) and 300 l Suitable for producing cold-pressed fruit and vegetable juices. Easy cleaning due to tiltable drain Exchangeable screen without tools Different...

Open the catalog to page 4

Technical data Expressly subject to technical changes and errors Model Rated throughput in kg/h Rated throughput in kg/h Electrical connection* Electrical fuse protection in A Length/ width/height dimensions in mm** Filling height in mm*** High of the mash discharge in mm Weight in kg (without/ with frame) Material * Other mains voltages and designs on request ** with stand *** usage with stand

Open the catalog to page 5

voran business lines machines machine construction plant construction facades Vienna Bratislava Eisenstadt Salzburg Kufstein Villach Klagenfurt Wels interchange Linz interchange Traun interchange voran Maschinen GmbH Service hotline Production & Sales T +43 (0) 72 49 / 444-200 Inn 7 A 4632 Pichl bei Wels Austria | Europe T +43 (0) 72 49 / 444-0 F +43 (0) 72 49 / 444-888 [email protected] · www.voran.at

Open the catalog to page 6

Fruit mills RM 1,5 RM 2,2 RM 5,5
