VOGEL
Planetary gearboxes

Planetary gearboxes

Product catalog summary

Functional Description
The document outlines the structure and operation of a planetary gearbox, which includes components such as a sun gear, planet gears, a planet carrier, and an outer gear. The input is delivered through the sun gear, and motion is transferred to the planet carrier via the planet gears. Multi-stage gearboxes are formed by connecting individual stages, and right-angle drive combinations can be achieved with Vogel spiral bevel gear units.

Technical Data
Specifications cover materials and designs for components like housing, shafts, and gears. Housing options include cast iron, spherulitic graphite iron, aluminum, and stainless steel. Shafts are made from materials such as C45 or 42 Cr Mo 4, with options for stainless steel or chromium plating. Gear parts are case-hardened and made from materials like 16 Mn Cr 5 or 17 Cr Ni Mo 6. Details on oil seals, bearings, lubrication, and surface treatments are also provided.

Available Types
The document lists various planetary gearbox types, including foot-mounted and flange-mounted designs, with output torques up to 26,000 Nm. Types include P, PF, MP, MPF, LP, LPF, MLP, and MLPF, each with unique design features.

Ratio Plan
The ratio plan details gear ratios for different stages of planetary gearboxes, ranging from single-stage to three-stage configurations, with mathematically exact ratios depending on the gearbox type.

Usage Conditions and Size Selection
Guidelines are provided for calculating required input power based on shock factors and ambient temperature, explaining how to determine the appropriate gearbox size using calculated input power and output torque.

Maintenance, Lubrication, and Weight
Maintenance procedures, lubrication types, and gearbox weights are detailed, emphasizing adherence to guidelines for optimal performance.

Specifications
Detailed specifications for planetary gearboxes, specifically the MLPF 256 type, a 3-stage gearbox, include dimensions, motor flange types, and motor shaft dimensions.

Procedures
Motor mounting procedures are outlined for three versions (A, B, and C), each with specific instructions. Version A requires a motor shaft with a keyway for emergency stop torque transfer, Version B uses a profiled bush with a shrink disc, and Version C involves a shrink disc bush without a keyway, recommending motors with reduced shaft tolerance per DIN 42955 R standards.

Standards and Recommendations
For optimal performance, motors with reduced shaft tolerance and concentricity per DIN 42955 R standards are recommended. Necessary torque for tightening screws during assembly is specified to ensure secure connections.

Key Data from Tables
Tables detail permissible radial loads for different input and output speeds, motor flange dimensions, and motor shaft dimensions. For example, the permissible radial load for an output shaft of size 256 at 25 rpm is 100,000 N.

Critical Information
Emphasis is placed on using a keyway in the motor shaft for Version A to ensure torque transfer during emergency stops. The necessity of degreasing components before assembly and following the specified torque tightening sequence is highlighted to ensure proper assembly.

Specifications
Inertia values (kgcm²) for different gearbox types and sizes (P, PF, MP, MPF) across 1-stage, 2-stage, and 3-stage configurations are provided, indicating suitability for various applications.

Procedures
Details on input and output shaft dimensions for different gearbox types (P, PF, PH, PFH) and stages (1-stage, 2-stage, 3-stage) include shaft diameter, centring, key specifications, and thread depth.

Standards
DIN 6885 is referenced for keyway specifications, ensuring compatibility and standardization across applications.

Recommendations
Thermal power limits for industrial planetary gearboxes are specified, with conditions such as maximum input speed (2000 rpm), ambient temperature (20°C), housing temperature (90°C), and wind speed (1.25 m/sec) for optimal operation.

Contact Information
Contact details for Lenze distribution partners across various regions, including Germany, Australia, Austria, Belgium, Brazil, China, Czech Republic, Denmark, Finland, France, Hungary, India, Iran, Israel, Italy, and Korea, are provided for customer support and inquiries.

Catalog excerpts

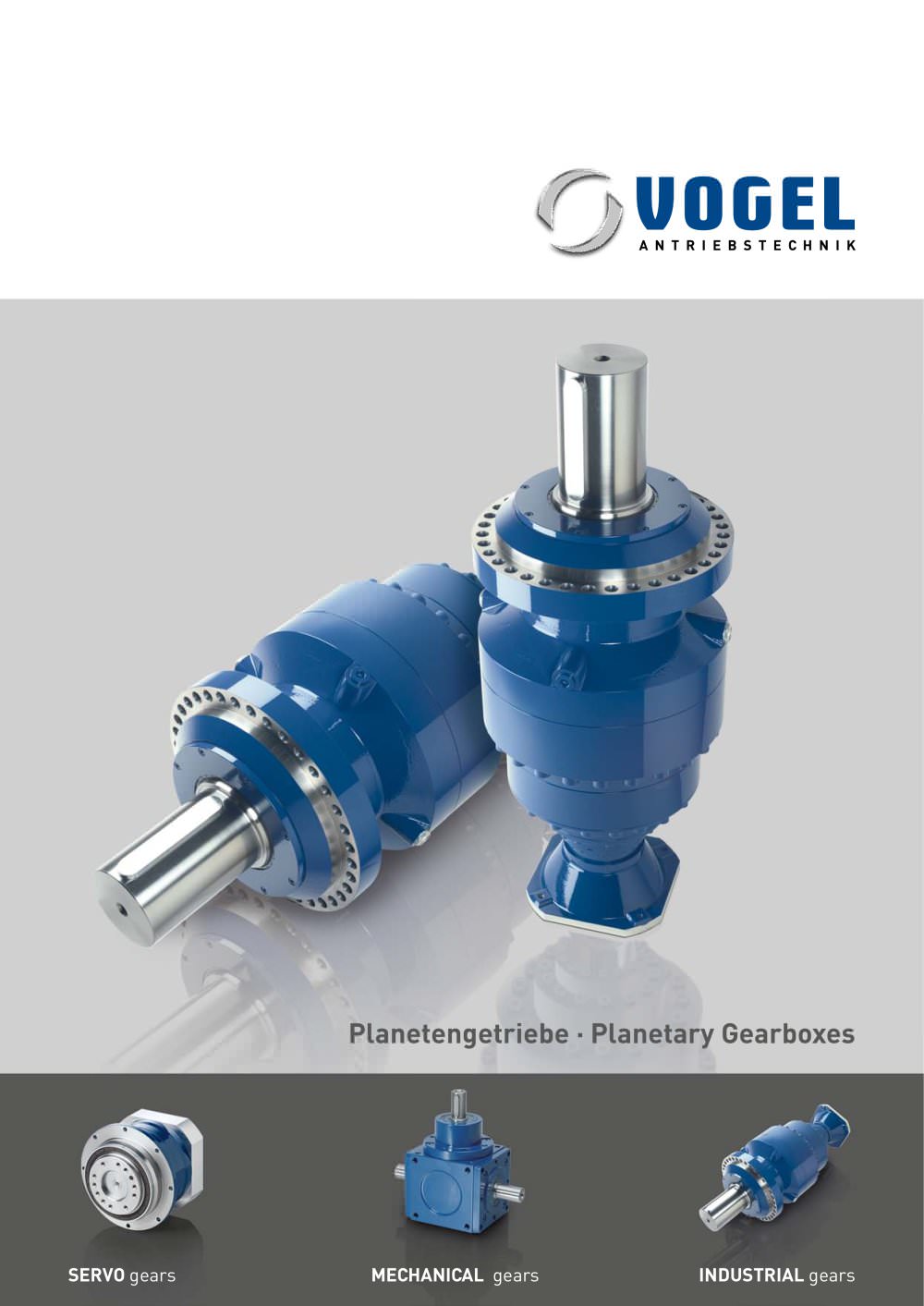

Planetengetriebe · Planetary Gearboxes SERVO gears Mechanical gears Industrial gears

Open the catalog to page 1

Funktionsbeschreibung Technische Daten Typenübersicht Übersetzungsplan Einsatzbedingungen Auswahl der Getriebegröße Wartung - Schmierung - Gewichte Einbaulagen Typschlüssel Checkliste Abmessungen Typ P 1-stufig 2-stufig 3-stufig Abmessungen Typ P 256 2-stufig 3-stufig Abmessungen Typ PF 1-stufig 2-stufig 3-stufig Abmessungen Typ PF 256 2-stufig 3-stufig Abmessungen Typ MP 1-stufig 2-stufig 3-stufig Abmessungen Typ MP 256 2-stufig 3-stufig Abmessungen Typ MPF 1-stufig 2-stufig 3-stufig Abmessungen Typ MPF 256 2-stufig 3-stufig Abmessungen Typ LP 3-stufig Abmessungen Typ LPF 3-stufig Abmessungen...

Open the catalog to page 2

Das einfache Planetengetriebe setzt sich aus den koaxial angeordneten Bauteilen, Sonnenritzel, Planetenträger und Hohlrad, sowie den auf konstanten Achsabstand im Planetenträger drehbar angeordneten Planetenrädern zusammen. Der Eintrieb erfolgt über das Sonnenritzel. Über die Planetenräder wird die Drehbewegung auf den Planetenträger (Abtriebswelle) übertragen. Durch das Abwälzen der Planetenräder im Hohlrad erfolgt eine entsprechende Übersetzung. The simple planetary gearbox comprises of the coaxial sun gear, planet carrier and outer gear sub-assemblies, and is combined with the planet gears...

Open the catalog to page 3

Ausführung Werkstoff Sonderausführung Rundform Befestigungsgewinde im Gehäuse-K= 2 x ø Grauguss EN-GJL-250 (0.6025) bzw. Sphäroguss EN-GJS-400-15 (0.7040) bzw. G-Al Si 10 Mg Stahlguss oder Schweisskonstruktion Nichtrostende Ausführung Wellenzentrierung nach DIN 332 Blatt 2 Passfeder nach DIN 6885, Blatt 1 j6 Ausführung Toleranz Werkstoff Sonderausführung Nichtrostende Ausführung oder hartverchromt Wellen ohne Passfedernut Evolventen-Zahnnabenprofile nach DIN 5480 Glatt mit Schrumpfscheibe Bohrung H7 C 45 (1.0503) Nichtrostende Ausführung Evolventen-Zahnnabenprofile nach DIN 5480 Planetenräder+...

Open the catalog to page 4

Design Material Special design Design Tolerance Material Special design Design Tolerance Material Special design Roundly form Attachment thread in the housing-K= 2 x ø Cast iron EN-GJL-250 (0.6025) or spherulitic graphite iron EN-GJS-400-15 (0.7040) or aluminum G-Al Si 10 Mg Cast steel or fabricated Stainless steel Shaft centring DIN 332 sheet 2 With keyway DIN 6885, sheet 1 j6 C 45 (1.0503) or 42 Cr Mo 4 (1.7225) Stainless steel or chromium plated Shafts without keyway Involute spline DIN 5480 With shaft locking device H7 C 45 (1.0503) Stainless steel Involute spline DIN 5480 Spur gear Planetgears+...

Open the catalog to page 5

Kurzzeichen Shortcode Übersetzung Ratio Abtriebsdrehmoment Outputtorque Planetengetriebe mit Motor- u. Abtriebsflansch Flange mounted planetary gearbox to suit motors Kegelrad-Planetengetriebe mit Fuss Foot mounted Bevelplanetary gearbox Kegelrad-Planetengetriebe mit Abtriebsflansch Foot mounted planetary gearbox to suit motors Planetengetriebe mit Motorflansch und Fuss Flange mounted planetary gearbox Foot mounted planetary gearbox Seite Page Ausführungsform Designdescription Flange mounted Bevelplanetary gearbox Kegelrad-Planetengetriebe mit Motorflansch und Fuss Foot mounted Bevel-planetary...

Open the catalog to page 6

Typ/TypeP/PF/PFH/MP/MPF/MPFH Übersetzung Ratio Planetengetriebe Planetarygearbox Typ/TypeLP/LPF/LPFH/MLP/MLPF/MLPFH Übersetzung Ratio Kegelradgetriebe Bevelgearbox Planetengetriebe Planetarygearbox AllegenanntenÜbersetzungensind mathematischgenau

Open the catalog to page 7

Bei der Berechnung der max. geforderten Einsatzleistung P der anzutreibenden Maschine müssen folgende Einsatzbedingungen beachtet werden: c1 = Stoßfaktor in Abhängigkeit von der Anzahl der Anläufe pro Stunde und der Betriebsdauer c2 = Umgebungstemperatur Die geforderte Eingangsleistung P errechnet sich wie folgt: When calculating the maximum required input power P of the machine to be driven, the following application conditions have to be observed: c1 = Shock factor – this depends on the “starts per hour” and on the “duration of operation” c2 = Ambient temperature the required input power P...

Open the catalog to page 8

Selecting the right size Die vorgesehene Betriebsart ist S5. Bei anderen Betriebsarten bitten wir um Rucksprache. *TTRTEB^E~™ The planned operating mode is S5. Please contact us if you intend to use other operating modes. Planetengetriebe Planetary gearboxes Die Nenndrehmomente konnen kurzzeitig mit dem The nominal output torque you can overload a short Faktor 1,8 iiberlastet werden. time with factor 1,8.

Open the catalog to page 9

Alle Getriebe werden mit Ölfüllung geliefert. Bei Ölfüllung wird der Entlüftungsfilter separat mitgeliefert und muss vom Kunden montiert werden. All gearboxes are oil filled. With oil filled gearboxes the breather screw with filter is supplied loose and must be fitted upon installation. Erster Ölwechsel nach 500 Betriebsstunden; weitere Ölwechsel nach jeweils 3000 Betriebsstunden. First oil change after 500 operating hours, therafter every 3000 operating hours. Getriebegewicht Gearbox weight [kg] 21 /28 Größe Size Übersetzung Ratio Die Gewichts- und Mengenangaben sind ca.-Werte. Für die Ölmenge...

Open the catalog to page 10

Seitenansicht Side view Einbaulage (untenliegende Seite) Mounting position (underside) Seite der Ölarmaturen Side of oil fittings Seitenansicht Side view Einbaulage (untenliegende Seite) Mounting position (underside) Seite der Ölarmaturen Side of oil fittings Seitenansicht Side view Einbaulage (untenliegende Seite) Mounting position (underside) Seite der Ölarmaturen Side of oil fittings Seitenansicht Side view Einbaulage (untenliegende Seite) Mounting position (underside) Seite der Ölarmaturen Side of oil fittings * Wenn keine besonderen Angaben gemacht werden, sind die Ölarmaturen auf den fettgedruckten...

Open the catalog to page 11

Um ein Planetengetriebe genau definieren zu können, sind je nach Ausführungsform folgende Angaben erforderlich: BestellbeispielTypP,PF,MP,MPF For correct planetary gearbox definition, the following data is required: Ölschmierung / Einbaulage untenliegende Seite OrderingexampletypeP,PF,MP,MPF Type Oil lubrication / Mounting position Output speed Pitch circle diameter Centring diameter OrderingexampletypeLP,LPF,MLP,MLPF Type Oil lubrication / Mounting position Output speed Centring diameter Pitch circle diameter DieeingerahmtenFeldermüssenzwingendausgefüllt werden!
