VITO-Glazingmount 400

Product catalog summary

Product Overview: VITO Glazingmount 400 is a double-sided self-adhesive polyurethane foam tape used as a spacer in structural glazing systems. It is designed for applications such as curtain walls and skylight domes, providing excellent shear resistance and weathering properties.

Specifications: The tape is available in various thicknesses (3.2 mm, 4.8 mm, 6.4 mm, and 8.0 mm) and dimensions, with a high-performance acrylate-based adhesive. It is compatible with major structural glazing silicones and sealants.

Product Characteristics: The tape offers high-grade pure acrylate for excellent adhesion on glass, steel, and anodized aluminum. It has a low thermal conductivity value of 0.079 W/m2K, aiding in heat transfer reduction. It is resistant to UV radiation and weathering.

Testing and Compatibility: VITO Glazingmount 400 has been tested by the Institut für Fenstertechnik, with a report available upon request. It is compatible with products from Dow Corning, General Electric, Rhône-Poulenc, and Wacker Chemie.

Usage Recommendations: While the tape has strong adhesive properties, it should not replace permanent mounting systems or reduce recommended silicone quantities. Users should conduct suitability tests for specific applications.

Catalog excerpts

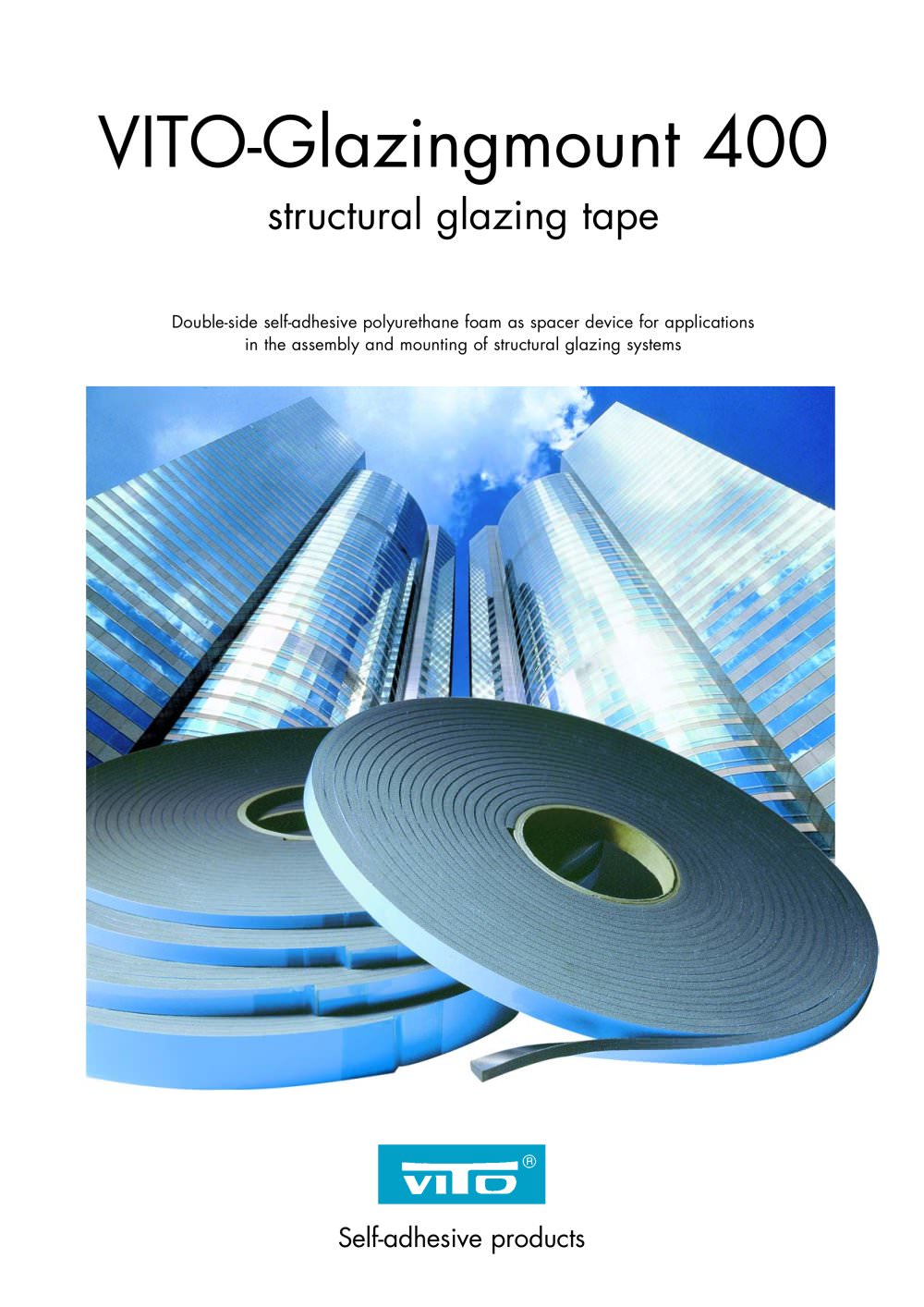

Double-side self-adhesive polyurethane foam as spacer device for applicationsin the assembly and mounting of structural glazing systems Self-adhesive products >

Open the catalog to page 1

VITOGLAZINGMOUNT400 consists of a high densitydouble-side self-adhesive mixed cellular polyurethanefoam. This quality is equipped with a high performanceacrylate-based adhesive.This product is especially conceived as spacer device ֖for applications in the assembly and mounting of structuralglazing systems with entire glass faades such as forexample 疖 curtain walls and skylight domes. Product characteristics Exclusive use of high-grade pure acrylate ensures ex-cellent shear resistance on surfaces consisting of glass,steel and anodized aluminium. This tape excels by itsparamount weathering resistance...

Open the catalog to page 2
