Overview: The document provides technical specifications and descriptions for various types of electronic displays and clocks, including built-in display counters, digital clocks, numeric large displays, alphanumeric text displays, text panels, and modular small displays. It also mentions the development of customer-specific applications.

Built-in Display Counters: These include types AD500, AD900, EZ, and M500. They feature LED displays with figure heights of 14 mm and are available in dimensions of 75x33 mm or 96x48 mm. They operate on 230 AC or 24 VDC and can display analog values such as voltage, current, temperature, and weight. The M500 series includes BCD/serial/impulse preselection counters.

Electronic Digital Clocks: Types LH 60, LH 100, LH 150, and LH 200 are described with character heights ranging from 60 mm to 200 mm. They feature automatic LED brightness adjustment, quartz or DCF77 radio timing, and optional time and temperature display. They can be extended with radio master clocks.

Numeric Large Displays: These displays offer character heights from 60 mm to 200 mm and use LED-7 segment technology. They are programmable for precise measurement of analog values and can connect directly to temperature sensors. They support various interfaces including profibus DP and Ethernet.

Alphanumeric Text Displays: Types LA, LC, LD, LG, LI, LT, and LZ offer character heights of 40, 60, and 100 mm using LED-Dotmatrix technology. They can display texts with effects like flashing and scrolling, and preserve data even during power failures.

Text Panels: The VTP series includes types VTP 40, VTP 60, and VTP 100, with character heights of 40 mm, 60 mm, and 100 mm. They offer interfaces like RS 232/485 and field bus interfaces, and support various display effects.

Modular Small Displays: The KD series (KD 8 to KD 20) and KC series (KC 2 to KC 6) offer modular displays with widths ranging from 8 mm to 20 mm. They support numeric and hexadecimal displays and are compatible with VISUAL-ELECTRONIC decode switches.

Decoding Switches: These are available in the KC series with housing widths of 7.62 mm to 10 mm and heights of 15 mm to 33 mm. They support BCD or decimal decoding and are compatible with VISUAL-ELECTRONIC small displays.

Catalog excerpts

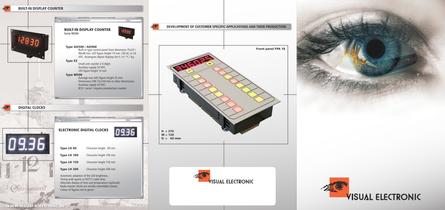

BUILT-IN DISPLAY COUNTER BUILT-IN DISPLAY COUNTER Built-in type control panel front dimension 75x33 / VDC. Analogues digital displays for V / A / °C / kg Small unit counter 2-4 digits Average raw with figure height 25 mm. Dimensions DIN 72x144 mm or other dimensions. BCD / serial / Impulse preselection counter DIGITAL CLOCKS ELECTRONIC DIGITAL CLOCKS Automatic adoption of the LED brightness. Timing with quartz or DCF77 radio time. Alternate display of time and temperature (optional). Radio master clocks are serially extendable (slave). Colour of figures red or green. DEVELOPMENT OF CUSTOMER SPECIFIC APPLICATIONS AND THEIR PRODUCTION VISUAL ELECTRONIC

Open the catalog to page 1

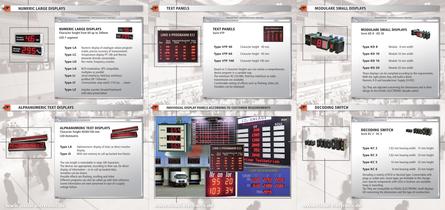

NUMERIC LARGE DISPLAYS NUMERIC LARGE DISPLAYS Character height from 60 up to 200mm Numeric display of analogue values program- mable, precise accuracy of measurement. Temperature display PT 100 and thermo elements directly connectable. Rev meter, frequency counter. Serial interfaces, field bus interfaces Impulse counter, forward-backward with data preservation ALPHANUMERIC TEXT DISPLAYS ALPHANUMERIC TEXT DISPLAYS Type LX Alphanumeric display of texts as direct monitor Type iS With text memory to call up backed text blocks The raw length is extendable in steps 4/8 characters. The devices are appropriate,...

Open the catalog to page 2
