Vision Components
VCProfessional+Base family

VCProfessional+Base family

Product catalog summary

Overview of VC Series Smart Cameras

The document provides detailed specifications and features of various models in the VC series of smart cameras, emphasizing their capabilities in high-speed processing, image acquisition, and industrial robustness.

1. VC4016 Specifications

Sensor: 1/3", 1024(H) x 768(V) pixels
Shutter Speed: High-speed up to 46.7 µsec, Low-speed up to 2 sec
Frame Rate: 16 fps
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 90 x 50 x 35 mm, 250 g

2. VC4018 Specifications

Sensor: 1/3", 640(H) x 480(V) pixels
Shutter Speed: High-speed up to 36.2 µsec, Low-speed up to 2 sec
Frame Rate: 32 fps
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 90 x 50 x 35 mm, 250 g

3. VC4038 Specifications

Sensor: 1/3", 640(H) x 480(V) pixels
Shutter Speed: High-speed up to 5 µsec, Low-speed up to 8 sec
Frame Rate: 63 fps (126 fps with 2x binning)
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 110 x 50 x 35 mm, 400 g

4. VC4058 Specifications

Sensor: 1/3", 640(H) x 480(V) pixels
Shutter Speed: High-speed up to 5 µsec, Low-speed up to 2.2 sec
Frame Rate: 242 fps (484 fps with 2x binning)
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 110 x 80 x 35 mm, 500 g

5. VC4065 Specifications

Sensor: 1/2", 768(H) x 582(V) pixels
Shutter Speed: High-speed up to 5 µsec, Low-speed up to 7.4 sec
Frame Rate: 55 fps (110 fps with 2x binning)
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 110 x 50 x 35 mm, 400 g

6. VC4066 Specifications

Sensor: 1/3", 1024(H) x 768(V) pixels
Shutter Speed: High-speed up to 5 µsec, Low-speed up to 16.2 sec
Frame Rate: 20 fps (40 fps with 2x binning)
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 110 x 50 x 35 mm, 400 g

7. VC4067 Specifications

Sensor: 2/3", 1280(H) x 1024(V) pixels
Shutter Speed: High-speed up to 5 µsec, Low-speed up to 17.6 sec
Frame Rate: 14 fps (28 fps with 2x binning)
Processor: 3200 MIPS, 400 MHz
Memory: 32 MB SDRAM, 4 MB Flash EPROM
Interfaces: RS232, 100Mbit Ethernet
Dimensions: 110 x 50 x 35 mm, 400 g

General Features of VC Series

Multitasking operating system (VCRT) for parallel process execution.
High-speed trigger input for jitter-free image acquisition.
Optimized image acquisition with parallel exposure and readout.
Industrial-grade design resistant to shock and vibration.
Multiple I/O lines for external equipment control, interfacing with PLCs.

VC4068 Overview

The VC4068 smart camera is highlighted for its jitter-free image acquisition, high-speed processing, and industrial robustness. It features a 1/2" sensor with a resolution of 1280 x 1024 pixels, supporting high-speed shutter speeds up to 5 µsec and low-speed up to 17.6 sec. The camera operates at a frame rate of 14 fps, which can be increased to 28 fps with 2x binning. It includes a 3200 MIPS, 400 MHz processor, 32 MB SDRAM, and 4 MB Flash EPROM, expandable with a 128 MB SD card.

Image Acquisition

The VC4068 optimizes image acquisition by allowing exposure, readout, and processing to occur in parallel, unlike standard progressive scan cameras. It includes an 8-bit color overlay feature for image enhancement.

Industrial Application

Designed for industrial use, the camera is resistant to shock and vibration. It includes multiple I/O lines for equipment control and can interface with PLCs for complex tasks.

Connectivity and Power

The camera supports RS232 and 100Mbit Ethernet interfaces, with a supply voltage requirement of 24V DC. It includes various electrical connections for I/O, VGA output, and triggering.

Dimensions and Weight

The camera measures approximately 110 x 50 x 35 mm and weighs around 400 g.

Catalog excerpts

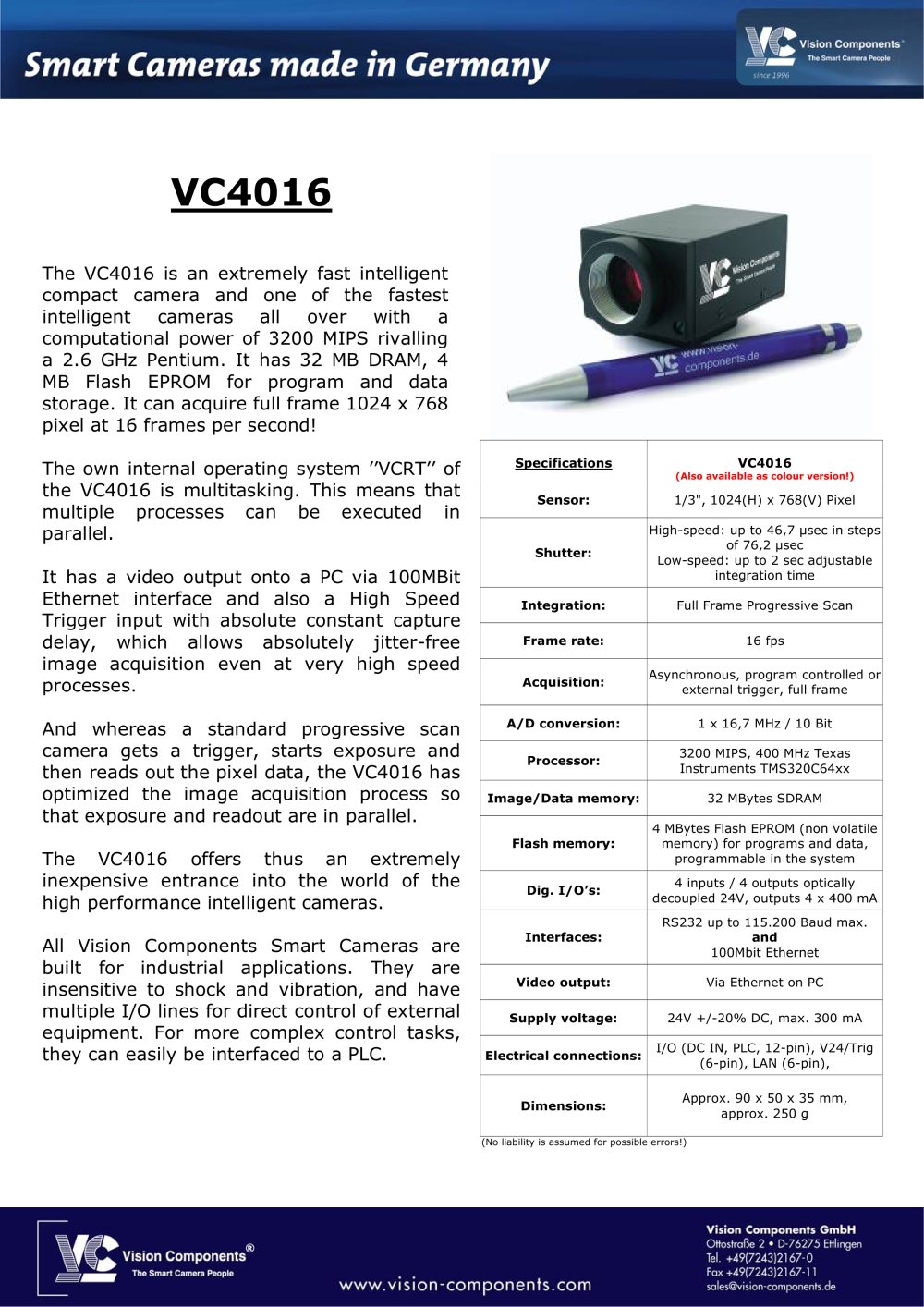

Specifications VC4016 > (Also available as colour version!) Sensor: 1/3", 1024(H) x 768(V) Pixel High-speed: up to 46,7 sec in stepsof 76,2 յsec Low-speed: up to 2 sec adjustable integration time Shutter: Integration: Full Frame Progressive Scan Frame rate: 16 fps Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 16,7 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig. I/Os: 4 inputs / 4 outputs optically decoupled 24V, outputs 4 x 400 mA RS232 up to 115.200 Baud max. Interfaces: and 100Mbit Ethernet Video output: Via Ethernet on PC Supply voltage: 24V +/-20% DC, max. 300 mA Electrical connections: I/O (DC IN, PLC, 12-pin), V24/Trig (6-pin), LAN (6-pin), Dimensions: Approx. 90 x 50 x 35 mm, approx. 250 g > (No liability is assumed for possible errors!) size="-1">

Open the catalog to page 1

Specifications VC401 > (Also available as colour version!) Sensor: 1/3", 640 (H) x 480 (V) Pixel High-speed: up to 36,2 sec in stepsof 62.4 յsec Low-speed: up to 2 sec adjustable integration time Shutter: Integration: Full Frame Progressive Scan Frame rate: 32 fps Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 12.5 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig. I/Os: 4 inputs...

Open the catalog to page 2

Sensor: 1/3", 640 (H) x 480 (V) Pixel high-speed: up to 5 sec low-speed: up to 8 sec adjustable integration time Shutter: > Integration: Full frame progressive scan > Frame rate: 63 fps (126 fps with 2 times binning) Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 25 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig....

Open the catalog to page 3

Sensor: 1/3", 640 (H) x 480 (V) Pixel High-speed: up to 5 sec Low-speed: up to 2,2 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan > Frame rate: 242 fps (484 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 33 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig....

Open the catalog to page 4

Sensor: 1/2", 768 (H) x 582 (V) Pixel high-speed: up to 5 sec low-speed: up to 7,4 sec adjustable integration time Shutter: > Integration: full frame progressive scan > Frame rate: 55 fps (110 fps with 2 times binning) Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 33 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig....

Open the catalog to page 5

Sensor: 1/3", 1024 (H) x 768 (V) Pixel high-speed: up to 5 sec low-speed: up to 16,2 sec adjustableintegration time Shutter: > Integration: full frame progressive scan > Frame rate: 20 fps (40 fps with 2 times binning) Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 20 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig....

Open the catalog to page 6

Specifications VC406 Sensor: 2/3", 1280 (H) x 1024 (V) Pixel > High-speed: up to 5 sec Low-speed: up to 17,6 sec adjustable integration time > Shutter: Integration: Full Frame Progressive Scan > Frame rate: 14 fps (28 fps with 2 times binning) > Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 25 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in...

Open the catalog to page 7

Sensor: 1/2", 1280 (H) x 1024 (V) Pixel High-speed: up to 5 sec Low-speed: up to 17,6 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan > Frame rate: 14 fps (28 fps with 2 times binning) Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 25 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image display: B or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory:...

Open the catalog to page 8
