Catalog excerpts

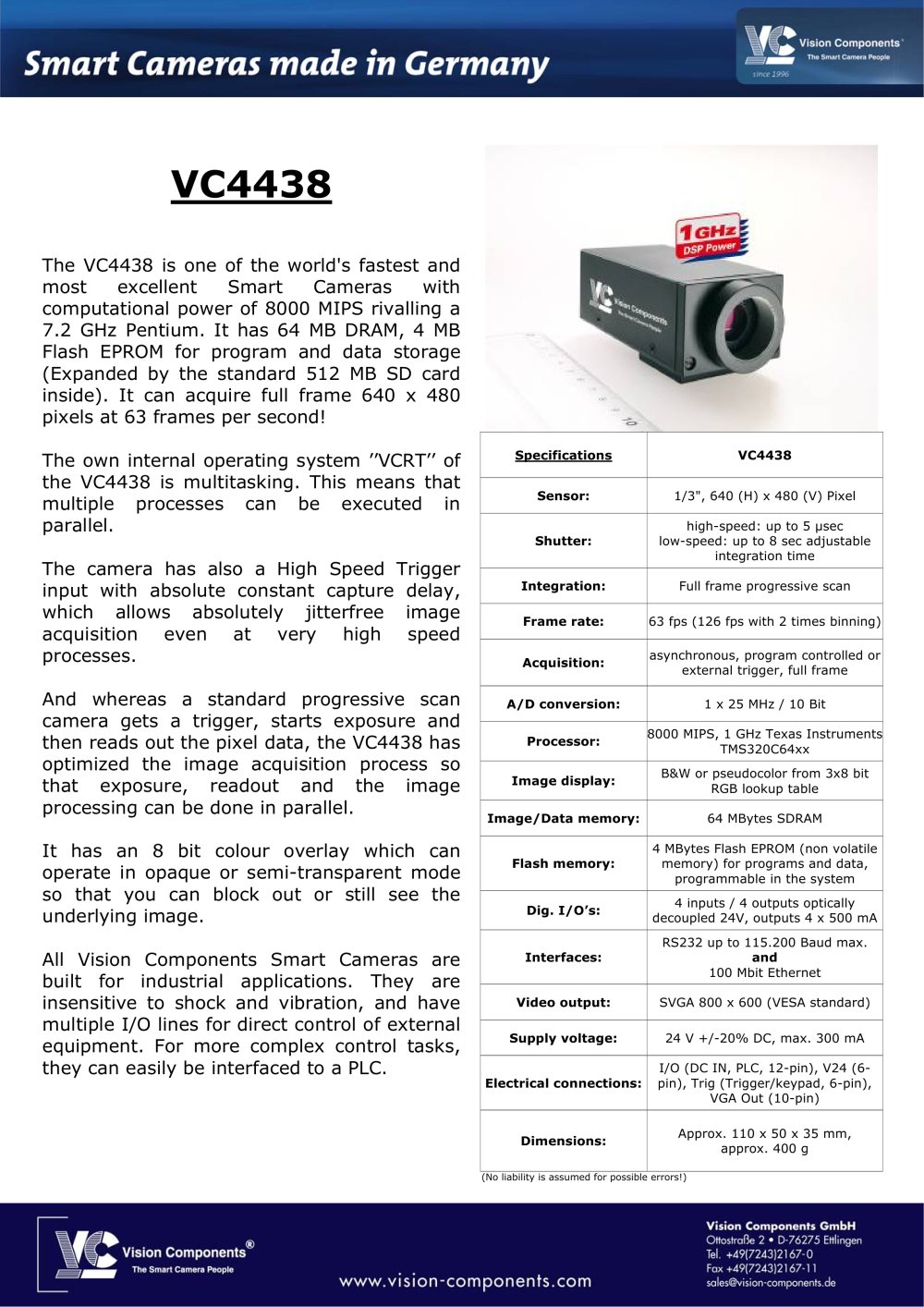

Sensor: 1/3", 640 (H) x 480 (V) Pixel high-speed: up to 5 sec low-speed: up to 8 sec adjustable integration time Shutter: > Integration: Full frame progressive scan Frame rate: 63 fps (126 fps with 2 times binning) Acquisition: asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 25 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas InstrumentsTMS320C64xx Image display: B&W or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system Flash memory: Dig. I/OՒs: 4 inputs / 4 outputs optically decoupled 24V, outputs 4 x 500 mA RS232 up to 115.200 Baud max. Interfaces: and 100 Mbit Ethernet Video output: SVGA 800 x 600 (VESA standard) Supply voltage: 24 V +/-20% DC, max. 300 mA I/O (DC IN, PLC, 12-pin), V24 (6-pin), Trig (Trigger/keypad, 6-pin), VGA Out (10-pin) Electrical connections: Dimensions: Approx. 110 x 50 x 35 mm, approx. 400 g > (No liability is assumed for possible errors!) size="-1">
Open the catalog to page 1Sensor: 1/2", 1280 (H) x 1024 (V) Pixel High-speed: up to 5 sec Low-speed: up to 17,6 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan Frame rate: 14 fps (28 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 25 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas Instruments TMS320C64xx Image display: B&W or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM (option for 128) 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the...
Open the catalog to page 2Sensor: 1/3", 1024 (H) x 768 (V) Pixel High-speed: up to 5 sec Low-speed: up to 16,2 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan Frame rate: 20 fps (40 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 20 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas Instruments TMS320C64xx Image display: B&W or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM (option for 128) 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the...
Open the catalog to page 3Sensor: 1/2", 768 (H) x 582 (V) Pixel High-speed: up to 5 sec Low-speed: up to 7,4 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan Frame rate: 55 fps (110 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 33 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas Instruments TMS320C64xx Image display: B&W or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM (option for 128) 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the system...
Open the catalog to page 4Sensor: 1/3", 640 (H) x 480 (V) Pixel High-speed: up to 5 sec Low-speed: up to 2,2 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan > Frame rate: 242 fps (484 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 33 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas Instruments TMS320C64xx Image display: B&W or pseudo color from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM (option for 128) 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the...
Open the catalog to page 5Sensor: 1/1.8", 1600 (H) x 1200 (V) Pixel High-speed: up to 20 sec Low-speed: up to 12,5 sec adjustable integration time Shutter: > Integration: Full Frame Progressive Scan > Frame rate: 10 fps (20 fps with 2 times binning) Acquisition: Asynchronous, program controlled orexternal trigger, full frame A/D conversion: 1 x 33 MHz / 10 Bit Processor: 8000 MIPS, 1 GHz Texas Instruments TMS320C64xx Image display: B&W or pseudocolor from 3x8 bit RGB lookup table Image/Data memory: 64 MBytes SDRAM (option for 128) 4 MBytes Flash EPROM (non volatile memory) for programs and data, programmable in the...
Open the catalog to page 6All Vision Components catalogs and technical brochures
-
