Product catalog summary
Specifications
  • Sensor: CMOS
  • Resolution: 2048
  • Lens Thread: C Mount
  • Pixel Size: 7µm x 7µm
  • Integration Times: Min: 90.9 µsec, Max: up to 130 msec
  • Maximum Scan Rate: 11 kHz
  • Integration: Asynchronous, program controlled or external trigger
  • A/D Conversion: 1 x 25 MHz / 10 Bit
  • Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx
  • Image/Data Memory: 32 MBytes SDRAM
  • Flash Memory: 4 MBytes Flash EPROM
  • Digital I/Os: 4 inputs / 4 outputs optically decoupled 24V, outputs 4 x 500 mA, 1 image trigger input, 1 flash trigger output
  • Interfaces: Ethernet 100 MBit TCP/IP and RS232, 115200 Baud max.
  • Supply Voltage: 24V +/-20% DC, max. 300 mA
  • Electrical Connections: I/O (DC IN, PLC, 12-pin), V24/Trig (6-pin), LAN (6-pin)
Overview
The VC4002L is a high-speed intelligent line scan camera, noted for its computational power of 3200 MIPS, comparable to a 2.6 GHz Pentium processor. It features 32 MB DRAM and 4 MB Flash EPROM for program and data storage. The camera supports a maximum line frequency of 11 kHz and operates on its internal multitasking operating system, VCRT, allowing parallel execution of multiple processes.
Integration Modes
  • Free-running Mode: Allows a maximum scan rate of 11 kHz.
  • External Trigger with Constant Integration Time: Maximum scan rate of 5.5 kHz.
  • Variable Integration Time with External Trigger: Maximum scan rate of 11 kHz.
Applications and Features
The VC4002L is designed for industrial applications, offering resistance to shock and vibration. It includes multiple I/O lines for direct control of external equipment and can be easily interfaced with a PLC for complex control tasks.
Physical Dimensions
  • Size: Approx. 90 x 50 x 35 mm
  • Weight: Approx. 250 g
See more

Catalog excerpts

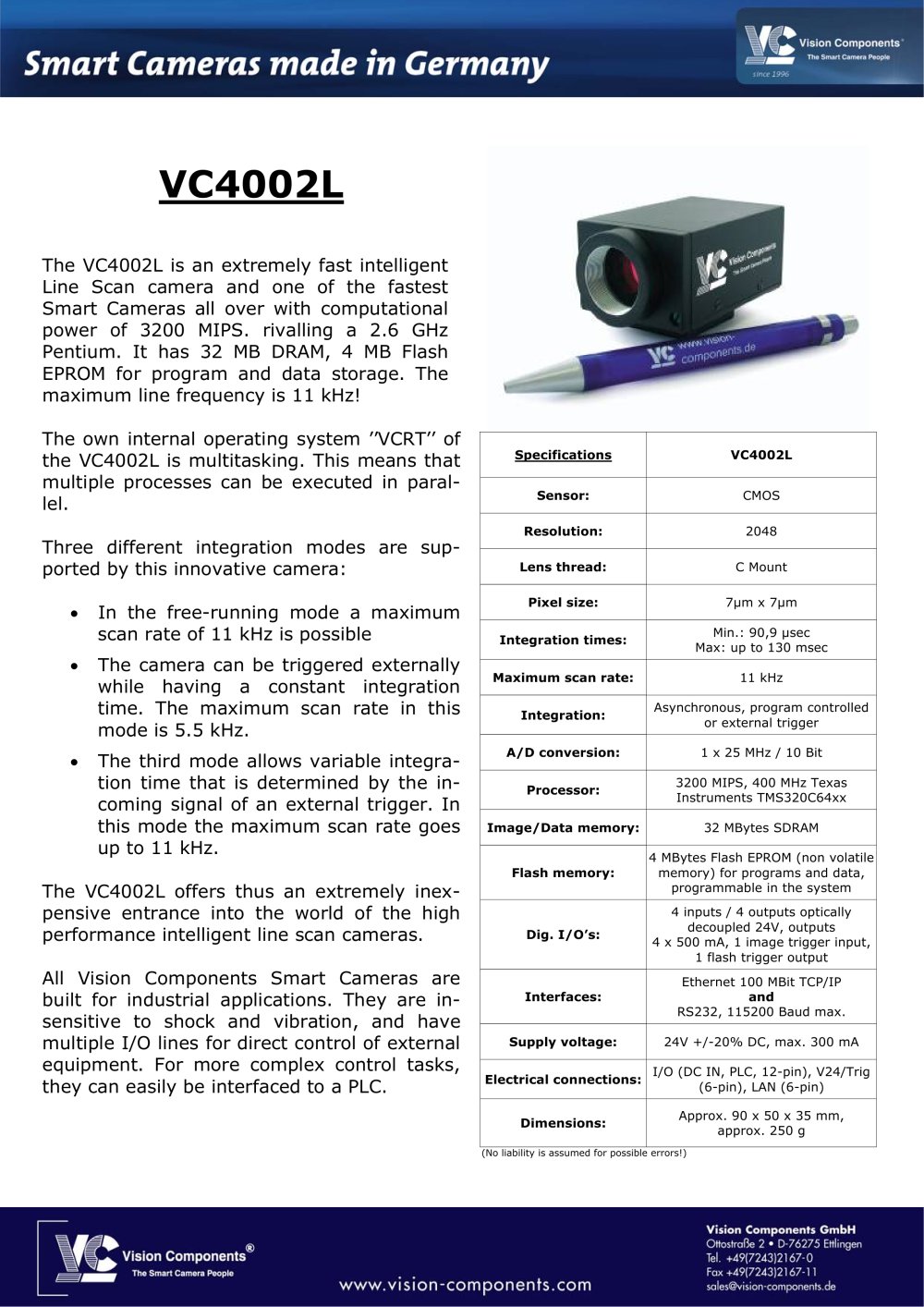

VCLine-1

Specifications VC4002L Sensor: CMOS Resolution: 2048 > Lens thread: C Mount Pixel size: 7m x 7յm > Integration times: Min.: 90,9 sec Max: up to 130 msec Maximum scan rate: 11 kHz Integration: Asynchronous, program controlled or external trigger A/D conversion: 1 x 25 MHz / 10 Bit Processor: 3200 MIPS, 400 MHz Texas Instruments TMS320C64xx Image/Data memory: 32 MBytes SDRAM 4 MBytes Flash EPROM (non volatilememory) for programs and data, programmable in the system Flash memory: 4 inputs / 4 outputs optically decoupled 24V, outputs 4 x 500 mA, 1 image trigger input, 1 flash trigger output Dig. I/OՒs: Ethernet 100 MBit TCP/IP Interfaces: and RS232, 115200 Baud max. Supply voltage: 24V +/-20% DC, max. 300 mA Electrical connections: I/O (DC IN, PLC, 12-pin), V24/Trig (6-pin), LAN (6-pin) Dimensions: Approx. 90 x 50 x 35 mm, approx. 250 g > (No liability is assumed for possible errors!) size="-1">
