![Resistors, Non-linear - Platinum Sensors-RTD - 1](https://img.directindustry.com/pdf/repository_di/11633/resistors-non-linear-platinum-sensors-rtd-172324_1m.jpg)

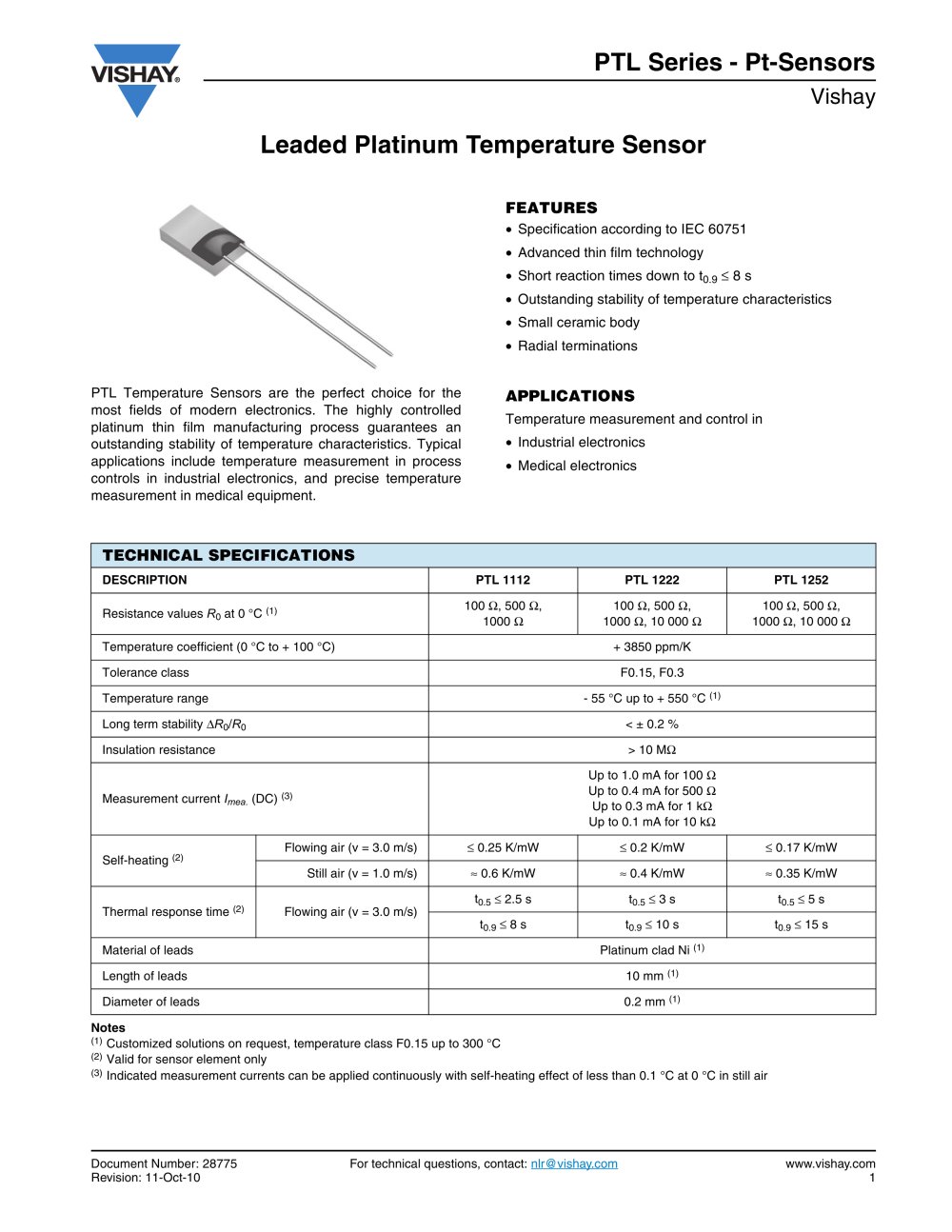

PTL Series - Pt-Sensors Vishay Document Number: 28775 For technical questions, contact: nlr@vishay.com www.vishay.com Revision: 11-Oct-10 1 Leaded Platinum Temperature Sensor PTL Temperature Sensors are the perfect choice for the most fields of modern electronics. The highly controlled platinum thin film manufacturing process guarantees an outstanding stability of temperature characteristics. Typical applications include temperature measurement in process controls in industrial electronics, and precise temperature measurement in medical equipment. FEATURES • Specification according to IEC 60751 • Advanced thin film technology • Short reaction times down to t0.9 8 s • Outstanding stability of temperature characteristics • Small ceramic body • Radial terminations APPLICATIONS Temperature measurement and control in • Industrial electronics • Medical electronics Notes (1) Customized solutions on request, temperature class F0.15 up to 300 °C (2) Valid for sensor element only (3) Indicated measurement currents can be applied continuously with self-heating effect of less than 0.1 °C at 0 °C in still air TECHNICAL SPECIFICATIONS DESCRIPTION PTL 1112 PTL 1222 PTL 1252 Resistance values R0 at 0 °C (1) 100 Ù, 500 Ù, 1000 Ù 100 Ù, 500 Ù, 1000 Ù, 10 000 Ù 100 Ù, 500 Ù, 1000 Ù, 10 000 Ù Temperature coefficient (0 °C to + 100 °C) + 3850 ppm/K Tolerance class F0.15, F0.3 Temperature range - 55 °C up to + 550 °C (1) Long term stability ÄR0/R0 < ± 0.2 % Insulation resistance > 10 MÙ Measurement current Imea. (DC) (3) Up to 1.0 mA for 100 Ù Up to 0.4 mA for 500 Ù Up to 0.3 mA for 1 kÙ Up to 0.1 mA for 10 kÙ Self-heating (2) Flowing air (v = 3.0 m/s) 0.25 K/mW 0.2 K/mW 0.17 K/mW Still air (v = 1.0 m/s) 0.6 K/mW 0.4 K/mW 0.35 K/mW Thermal response time (2) Flowing air (v = 3.0 m/s) t0.5 2.5 s t0.5 3 s t0.5 5 s t0.9 8 s t0.9 10 s t0.9 15 s Material of leads Platinum clad Ni (1) Length of leads 10 mm (1) Diameter of leads 0.2 mm (1)
Open the catalog to page 1![Resistors, Non-linear - Platinum Sensors-RTD - 2](https://img.directindustry.com/pdf/repository_di/11633/resistors-non-linear-platinum-sensors-rtd-172324_2m.jpg)
www.vishay.com For technical questions, contact: nlr@vishay.com Document Number: 28775 2 Revision: 11-Oct-10 PTL Series - Pt-Sensors Vishay Leaded Platinum Temperature Sensor DIMENSIONS PRODUCTION Production is strictly controlled and follows an extensive set of instructions established for reproducibility. A homogeneous film of platinum is deposited on a high grade ceramic body (96 % AI2O3). The sensor-elements are covered by a protective coating designed for electrical, mechanical and climatic protection. QUALITY The result of the determined production is verified by an extensive testing...
Open the catalog to page 2![Resistors, Non-linear - Platinum Sensors-RTD - 3](https://img.directindustry.com/pdf/repository_di/11633/resistors-non-linear-platinum-sensors-rtd-172324_3m.jpg)
Document Number: 28775 For technical questions, contact: nlr@vishay.com www.vishay.com Revision: 11-Oct-10 3 PTL Series - Pt-Sensors Leaded Platinum Temperature Sensor Vishay Notes (1) Products can be ordered using either the PART NUMBER or the PRODUCT DESCRIPTION (2) The part number is shown to facilitate the introduction of unified part numbering system (3) Please refer to table PACKAGING (4) We recommend that the production description is used to minimize the possibility of errors in order handling PART NUMBER AND PRODUCT DESCRIPTION (1) PART NUMBER (2): PTL122201B1K00KU00 TYPE TYPE CODE...
Open the catalog to page 3![Resistors, Non-linear - Platinum Sensors-RTD - 6](https://img.directindustry.com/pdf/repository_di/11633/resistors-non-linear-platinum-sensors-rtd-172324_6m.jpg)
Document Number: 91000 www.vishay.com Revision: 11-Mar-11 1 Disclaimer Legal Disclaimer Notice Vishay ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee...
