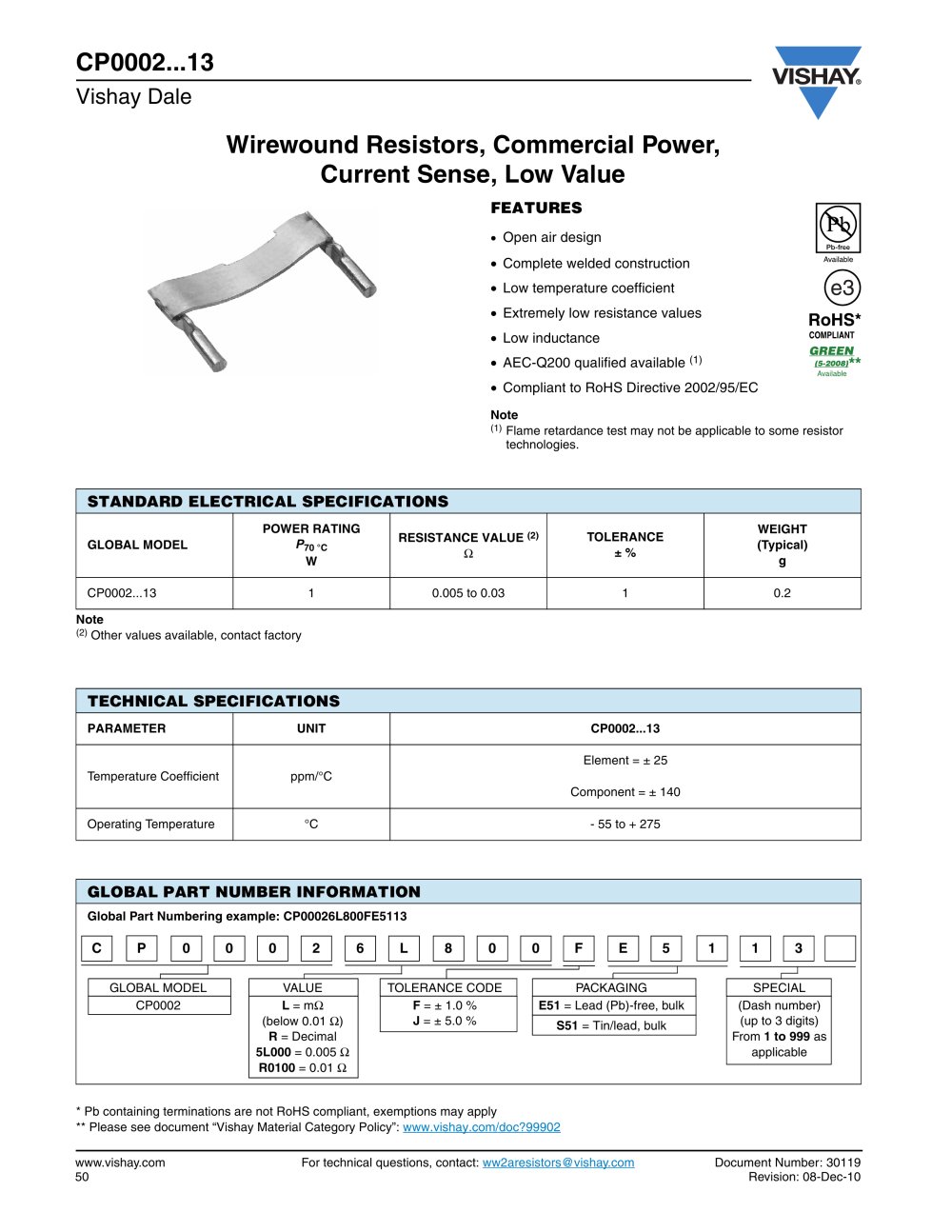

www.vishay.com For technical questions, contact: ww2aresistors@vishay.com Document Number: 30119 50 Revision: 08-Dec-10 CP0002...13 Vishay Dale Wirewound Resistors, Commercial Power, Current Sense, Low Value FEATURES • Open air design • Complete welded construction • Low temperature coefficient • Extremely low resistance values • Low inductance • AEC-Q200 qualified available (1) • Compliant to RoHS Directive 2002/95/EC Note (1) Flame retardance test may not be applicable to some resistor technologies. Note (2) Other values available, contact factory * Pb containing terminations are not RoHS compliant, exemptions may apply ** Please see document “Vishay Material Category Policy”: www.vishay.com/doc?99902 STANDARD ELECTRICAL SPECIFICATIONS GLOBAL MODEL POWER RATING P70 °C W RESISTANCE VALUE (2) Ù TOLERANCE ± % WEIGHT (Typical) g CP0002...13 1 0.005 to 0.03 1 0.2 TECHNICAL SPECIFICATIONS PARAMETER UNIT CP0002...13 Temperature Coefficient ppm/°C Element = ± 25 Component = ± 140 Operating Temperature °C - 55 to + 275 GLOBAL PART NUMBER INFORMATION Global Part Numbering example: CP00026L800FE5113 GLOBAL MODEL VALUE TOLERANCE CODE PACKAGING SPECIAL CP0002 L = mÙ (below 0.01 Ù) R = Decimal 5L000 = 0.005 Ù R0100 = 0.01 Ù F = ± 1.0 % J = ± 5.0 % E51 = Lead (Pb)-free, bulk S51 = Tin/lead, bulk (Dash number) (up to 3 digits) From 1 to 999 as applicable C P 0 0 0 2 6 L 8 0 0 F E 5 1 1 3

Open the catalog to page 1

Document Number: 30119 For technical questions, contact: ww2aresistors@vishay.com www.vishay.com Revision: 08-Dec-10 51 CP0002...13 Wirewound Resistors, Commercial Power, Current Sense, Low Value Vishay Dale DIMENSIONS [in millimeters] MECHANICAL SPECIFICATIONS Terminal Strength: 10 pounds minimum Construction: A completely welded assembly using a premium quality copper-nickel element and tinned copper terminals. Packaging: Layered bulk packaging, 2000 pcs/bag sealed DERATING 0.112 [2.85] Max. 0.050 ± 0.010 [1.27 ± 0.254] 0.125 ± 0.030 [3.18 ± 0.762] 0.040 ± 0.002 [1.02 ± 0.051] 0.450 ±...

Open the catalog to page 2

Document Number: 91000 www.vishay.com Revision: 11-Mar-11 1 Disclaimer Legal Disclaimer Notice Vishay ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee...
