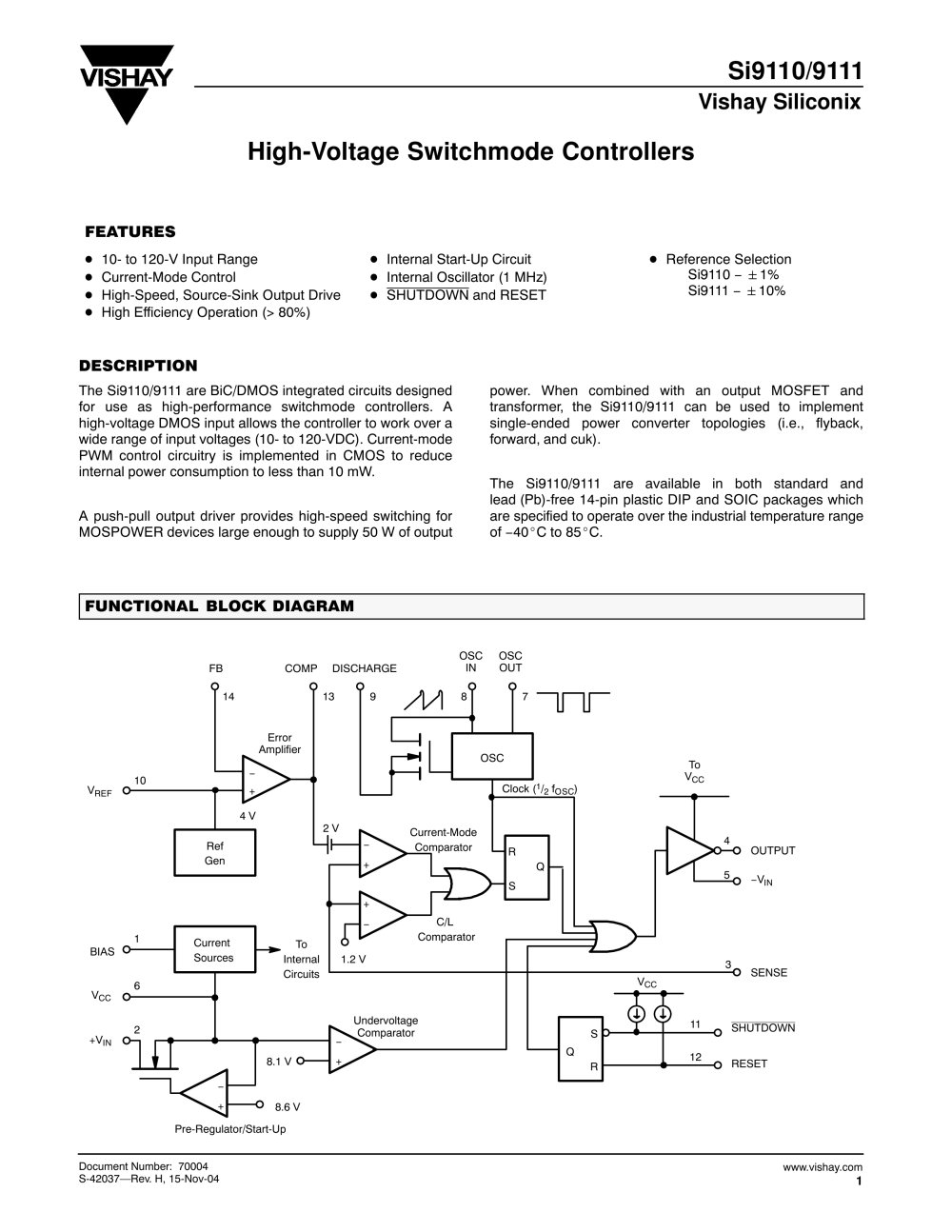

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 1

Si9110/9111 Vishay Siliconix Document Number: 70004 S-42037—Rev. H, 15-Nov-04 www.vishay.com 1 High-Voltage Switchmode Controllers FEATURES 10- to 120-V Input Range Current-Mode Control High-Speed, Source-Sink Output Drive High Efficiency Operation (> 80%) Internal Start-Up Circuit Internal Oscillator (1 MHz) SHUTDOWN and RESET Reference Selection Si9110 - 1% Si9111 - 10% DESCRIPTION The Si9110/9111 are BiC/DMOS integrated circuits designed for use as high-performance switchmode controllers. A high-voltage DMOS input allows the controller to work over a wide range of input voltages (10- to 120-VDC). Current-mode PWM control circuitry is implemented in CMOS to reduce internal power consumption to less than 10 mW. A push-pull output driver provides high-speed switching for MOSPOWER devices large enough to supply 50 W of output power. When combined with an output MOSFET and transformer, the Si9110/9111 can be used to implement single-ended power converter topologies (i.e., flyback, forward, and cuk). The Si9110/9111 are available in both standard and lead (Pb)-free 14-pin plastic DIP and SOIC packages which are specified to operate over the industrial temperature range of -40 C to 85 C. FUNCTIONAL BLOCK DIAGRAM + - - + + - + - + - FB COMP DISCHARGE OSC 14 13 9 8 7 2 V Ref Gen R S Q R S Q SENSE 3 5 4 11 12 Current-Mode Comparator C/L 1.2 V Undervoltage 8.1 V RESET 8.6 V BIAS Current Sources To Internal Circuits 10 1 6 2 Comparator Error Amplifier VREF VCC +VIN VCC SHUTDOWN 4 V OSC OUT OSC IN -VIN Pre-Regulator/Start-Up OUTPUT To VCC Comparator Clock (1/2 fOSC)

Open the catalog to page 1

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 2

Si9110/9111 Vishay Siliconix www.vishay.com 2 Document Number: 70004 S-42037—Rev. H, 15-Nov-04 ABSOLUTE MAXIMUM RATINGS Voltages Referenced to -VIN (Note: VCC < +VIN + 0.3 V) VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V +VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 V Logic Inputs (RESET, SHUTDOWN, OSC IN, OSC OUT) . . . . . . . . . . . . . . . -0.3 V to VCC + 0.3 V Linear Inputs (FEEDBACK, SENSE, BIAS, VREF) . . . . . . . . . . . . . . . -0.3...

Open the catalog to page 2

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 3

Si9110/9111 Vishay Siliconix Document Number: 70004 S-42037—Rev. H, 15-Nov-04 www.vishay.com 3 SPECIFICATIONSa D Suffix -40 to 85C Test Conditions Unless Otherwise Specified DISCHARGE = -VIN = 0 V VCC = 10 V, +VIN = 48 V Parameter RBIAS = 390 k , ROSC = 330 k Tempb Mind Typc Maxd Unit Symbol Current Limit Threshold Voltage VSOURCE VFB = 0 V Room 1.0 1.2 1.4 V Delay to Outpute td VSENSE = 1.5 V, See Figure 1 Room 100 150 ns Pre-Regulator/Start-Up Input Voltage +VIN IIN = 10 A Room 120 V Input Leakage Current +IIN VCC 9.4 V Room 10 A Pre-Regulator Start-Up Current ISTART Pulse Width 300 s,...

Open the catalog to page 3

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 4

Si9110/9111 Vishay Siliconix www.vishay.com 4 Document Number: 70004 S-42037—Rev. H, 15-Nov-04 TIMING WAVEFORMS 90% OUTPUT SENSE 1.5 V - 50% 0 90% OUTPUT 0 - 0 - 50% 50% 50% RESET 50% 50% 0 - td tr 10 ns VCC VCC VCC tSW tLW tRW tf 10 ns VCC VCC tSD SHUTDOWN SHUTDOWN tr, tf 10 ns 50% 0 - 0 - FIGURE 1. FIGURE 2. FIGURE 3. TYPICAL CHARACTERISTICS +VIN vs. +IIN at Start-Up Output Switching Frequency vs. Oscillator Resistance (V) 140 120 100 80 60 40 20 0 10 15 20 VCC = -VIN +IIN (mA) +V IN (Hz) 1 M 10 k 100 k 10 k 100 k 1 M rOSC () f OUT FIGURE 4. FIGURE 5.

Open the catalog to page 4

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 5

BIAS FB +VIN COMP SENSE RESET OUTPUT SHUTDOWN -VIN VREF VCC DISCHARGE OSC OUT OSC IN Dual-In-Line and SOIC 1 2 3 4 5 6 7 14 13 12 11 10 9 8 Top View Si9110/9111 Vishay Siliconix Document Number: 70004 S-42037—Rev. H, 15-Nov-04 www.vishay.com 5 PIN CONFIGURATIONS AND ORDERING INFORMATION ORDERING INFORMATION Part Number Temperature Range Package Si9110DY Si9110DY-T1 Si9110DY-T1—E3 SOIC-14 Si9111DY Si9111DY-T1 -40 to 85C Si9111DY-T1—E3 Si9110DJ Si9110DJ-—E3 PDIP 14 Si9111DJ PDIP-Si9111DJ-—E3 DETAILED DESCRIPTION Pre-Regulator/Start-Up Section Due to the low quiescent current requirement of...

Open the catalog to page 5

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 6

Si9110/9111 Vishay Siliconix www.vishay.com 6 Document Number: 70004 S-42037—Rev. H, 15-Nov-04 DETAILED DESCRIPTION (CONT’D) Applications which use a separate external reference, such as non-isolated converter topologies and circuits employing optical coupling in the feedback loop, do not require a trimmed voltage reference with 1% accuracy. The Si9111 accommodates the requirements of these applications at a lower cost, by leaving the reference voltage untrimmed. The 10% accurate reference thus provided is sufficient to establish a dc bias point for the error amplifier. Error Amplifier...

Open the catalog to page 6

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 7

Si9110/9111 Vishay Siliconix Document Number: 70004 S-42037—Rev. H, 15-Nov-04 www.vishay.com 7 APPLICATIONS Si9110 GND FEEDBACK -48 V 240 k 390 k 13 14 6 10 1 5 9 2 8 7 4 3 150 k 3 k 100 pF 2N7004 18 k 12 k 1N5822 1N5819 1N4148 VCC 0.1 F 20 F 0.022 F 0.1 F 1 F 220 F 47 F OSC SYNC PULSE (If Needed) +5 V @ 0.75 A -5 V @ 0.25 A To Pin 6 VCC Feedback To Pin 14 FIGURE 6. 5-Watt Power Supply for Telecom Applications 1 1/2 W Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and...

Open the catalog to page 7

Power ICs - DC-DC Isolated Power Supplies - PWM Controllers - 8
