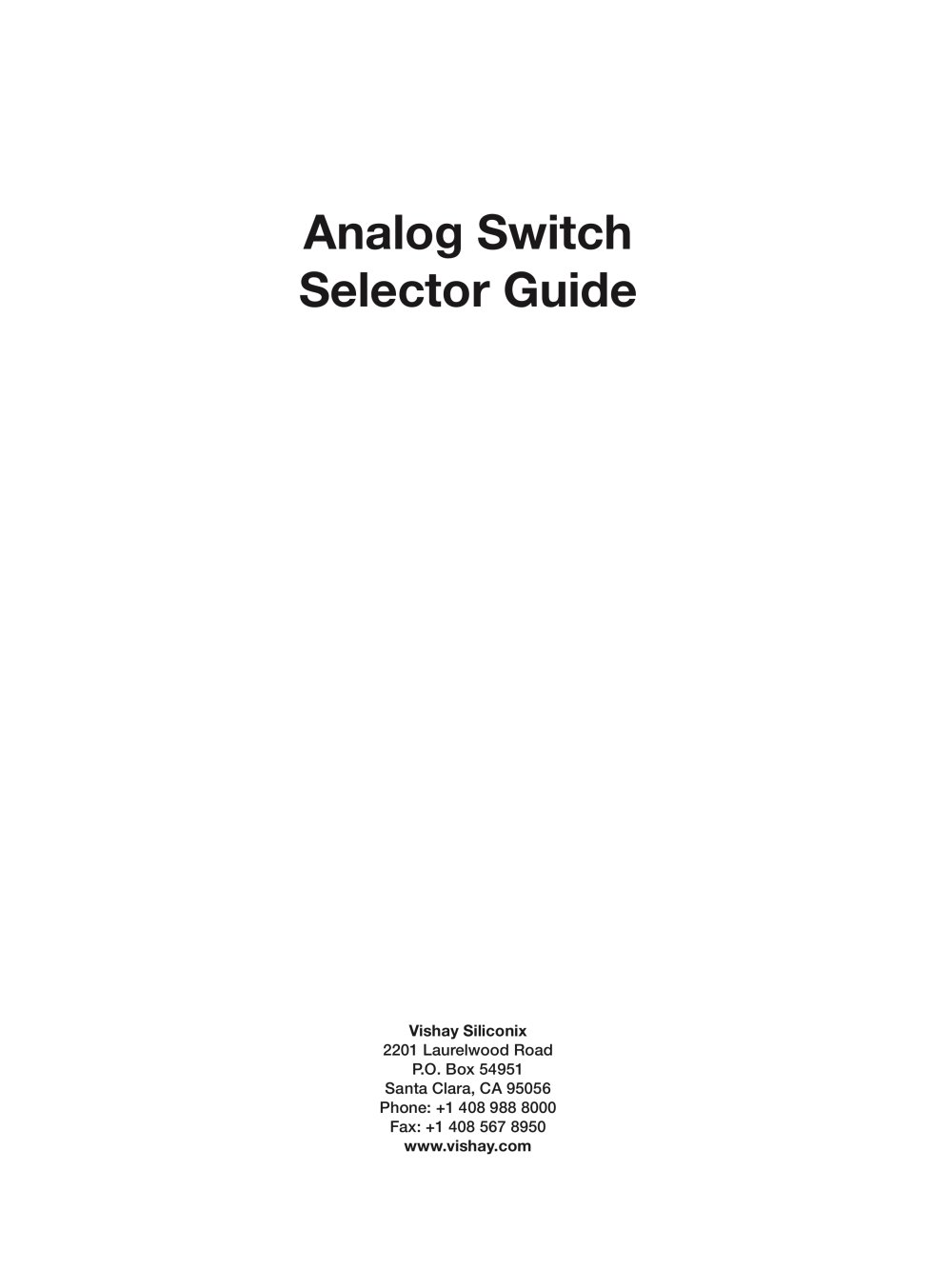

Low Voltage Analog Switch Selector Guide

Low Voltage Analog Switch Selector Guide

Product catalog summary

Featured Products
Vishay Siliconix offers a variety of analog switches known for ultra-small packaging, low on-resistance, high switch speed, and low power consumption. Key products include the DG2011DX, DG411HS Series, and DG417B Series, which enhance switch speed, off-isolation, and crosstalk. The DG2032 and DG2034 are noted for their low on-resistance and fast switching speeds, ideal for audio and video signal applications.

About Analog Switches
Analog switches come in configurations like SPST, SPDT, and multiplexers, designed to replace mechanical switches. Important performance parameters include on-resistance, supply voltage, bandwidth, charge injection, isolation, and speed. Vishay focuses on performance and design flexibility.

How to Choose the Right Analog Switch
Selection involves considering switch configuration, supply voltage, performance needs (such as on-resistance and switch speed), interface type, and package size. Vishay offers a wide range of options from SPST to multiplexers, with various package sizes and voltage compatibilities.

Overview of Website
The Vishay website is a comprehensive resource for selecting and designing analog switches, featuring datasheet bundling, sample ordering, and technical support. It is updated weekly with the latest information.

Technology and Applications
Vishay's analog switches are used in applications from battery-powered portable products to complex industrial and medical systems. They offer low power consumption, small footprint packaging, and compatibility with low voltage supplies, suitable for audio signal routing, sensor systems, and multiplexing services.

Conclusion
Vishay Siliconix provides a diverse portfolio of analog switches designed to meet various application needs, emphasizing performance, flexibility, and innovation in packaging and design.

New Product Features
The document introduces 'B Suffix' versions of switches like the DG419BDY and DG419BDQ for precision applications, and the DG3525DQ and DG3526DQ, which offer low resistance and excellent linearity.

Packaging Information
A detailed table provides dimensions and maximum footprint areas for various package types, including SO-16, SO-8, TSSOP-16, and others.

Analog Switch Family Series
Switches are categorized into series like DG2xx, DG3xx, DG4xx, each with features such as low charge injection, high speed, and low voltage operation.

Product Specifications
Extensive tables list products by configuration, detailing parameters such as minimum and maximum supply voltages, on-resistance (rON), off-state leakage current (IS(OFF)), and package types.

Critical Information
The guide emphasizes selecting the right switch based on application requirements, highlighting parameters like rON, supply voltage range, and package type as critical factors.

Specifications
Each product is listed with its part number, configuration (e.g., SPST, SPDT, DPST), minimum and maximum single and dual supply voltages, on-resistance (rON), off-state leakage current (IS(OFF)), maximum turn-on time (tON), typical charge injection (Qinj), crosstalk and off-isolation rejection ratio (XTALK & OIRR), and maximum power consumption (PC).

Configurations
Products are categorized by their switch configurations, such as single-pole single-throw (SPST), single-pole double-throw (SPDT), and multiplexer configurations like 8:1 or 16:1.

Performance Parameters
Key performance metrics include on-resistance, leakage current, turn-on time, and charge injection, which are critical for determining the suitability of a switch for specific applications.

Packaging
The guide specifies the package type for each product, such as Plastic DIP, SO (Small Outline), TSSOP (Thin Shrink Small Outline Package), and QFN (Quad Flat No-leads).

Data Interpretation
The tables provide a comprehensive comparison of different analog switches, allowing engineers to select the appropriate switch based on electrical and physical requirements. The document emphasizes low power consumption, fast switching times, and minimal signal distortion, essential for high-performance analog applications.
