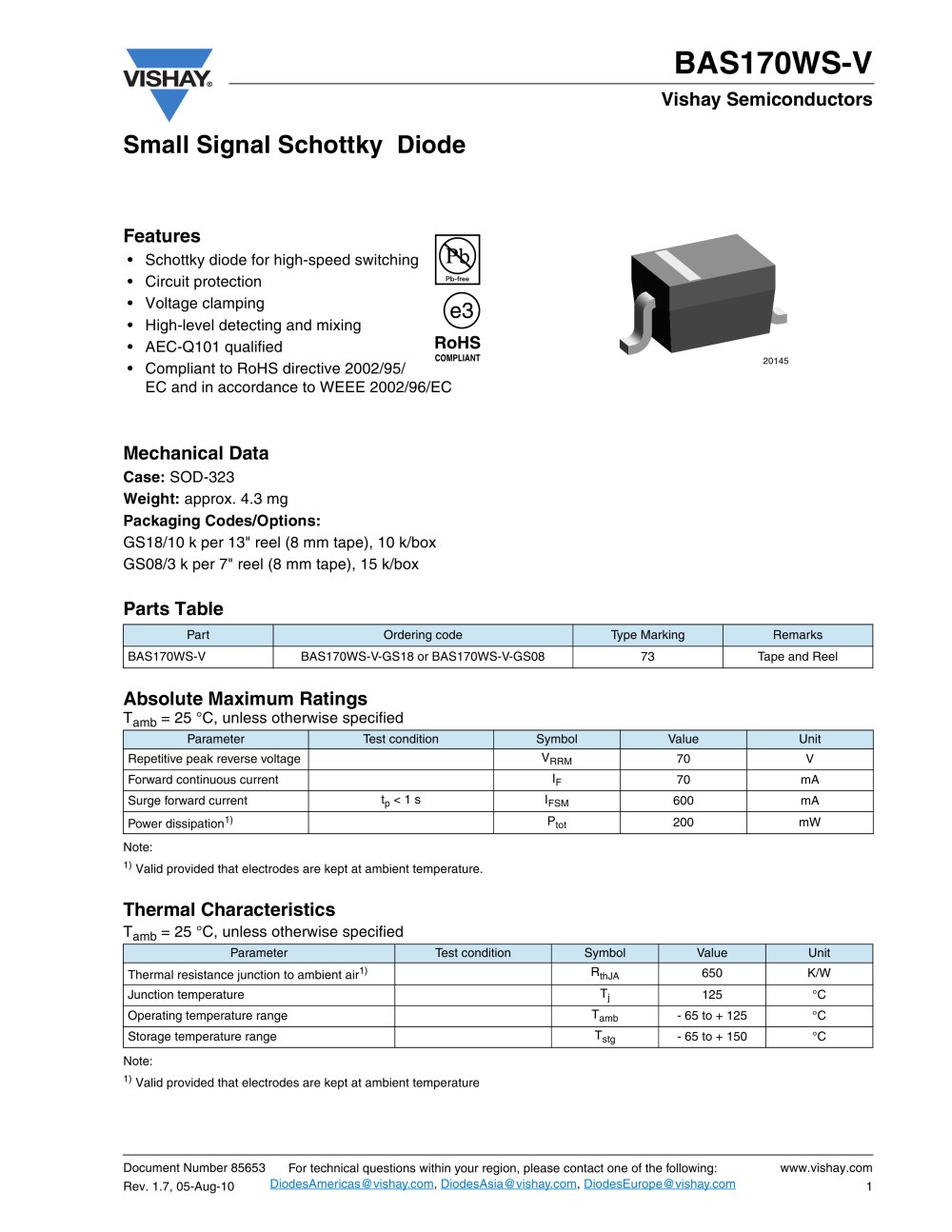

Diodes - Small-signal Schottky diodes BAS170WS-V - 1

BAS170WS-V Document Number 85653 Rev. 1.7, 05-Aug-10 Vishay Semiconductors www.vishay.com 1 20145 For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Small Signal Schottky Diode Features • Schottky diode for high-speed switching • Circuit protection • Voltage clamping • High-level detecting and mixing • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/ EC and in accordance to WEEE 2002/96/EC Mechanical Data Case: SOD-323 Weight: approx. 4.3 mg Packaging Codes/Options: GS18/10 k per 13" reel (8 mm tape), 10 k/box GS08/3 k per 7" reel (8 mm tape), 15 k/box Parts Table Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Note: 1) Valid provided that electrodes are kept at ambient temperature. Thermal Characteristics Tamb = 25 °C, unless otherwise specified Note: 1) Valid provided that electrodes are kept at ambient temperature Part Ordering code Type Marking Remarks BAS170WS-V BAS170WS-V-GS18 or BAS170WS-V-GS08 73 Tape and Reel Parameter Test condition Symbol Value Unit Repetitive peak reverse voltage VRRM 70 V Forward continuous current IF 70 mA Surge forward current tp < 1 s IFSM 600 mA Power dissipation1) Ptot 200 mW Parameter Test condition Symbol Value Unit Thermal resistance junction to ambient air1) RthJA 650 K/W Junction temperature Tj 125 °C Operating temperature range Tamb - 65 to + 125 °C Storage temperature range Tstg - 65 to + 150 °C

Open the catalog to page 1

Diodes - Small-signal Schottky diodes BAS170WS-V - 2

www.vishay.com 2 Document Number 85653 Rev. 1.7, 05-Aug-10 BAS170WS-V Vishay Semiconductors For technical questions within your region, please contact one of the following: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com Electrical Characteristics Tamb = 25 °C, unless otherwise specified Note: 1) Pulse test; tp 300 ìs Package Dimensions in millimeters (inches): SOD-323 Parameter Test condition Symbol Min Typ. Max Unit Reverse breakdown voltage IR = 10 ìA (pulsed) V(BR) 70 V Leakage current VR = 50 V IR 0.1 ìA VR = 70 V IR 10 ìA Forward voltage IF = 1 mA VF 375 410...

Open the catalog to page 2

Diodes - Small-signal Schottky diodes BAS170WS-V - 3

Document Number: 91000 www.vishay.com Revision: 11-Mar-11 1 Disclaimer Legal Disclaimer Notice Vishay ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee...
