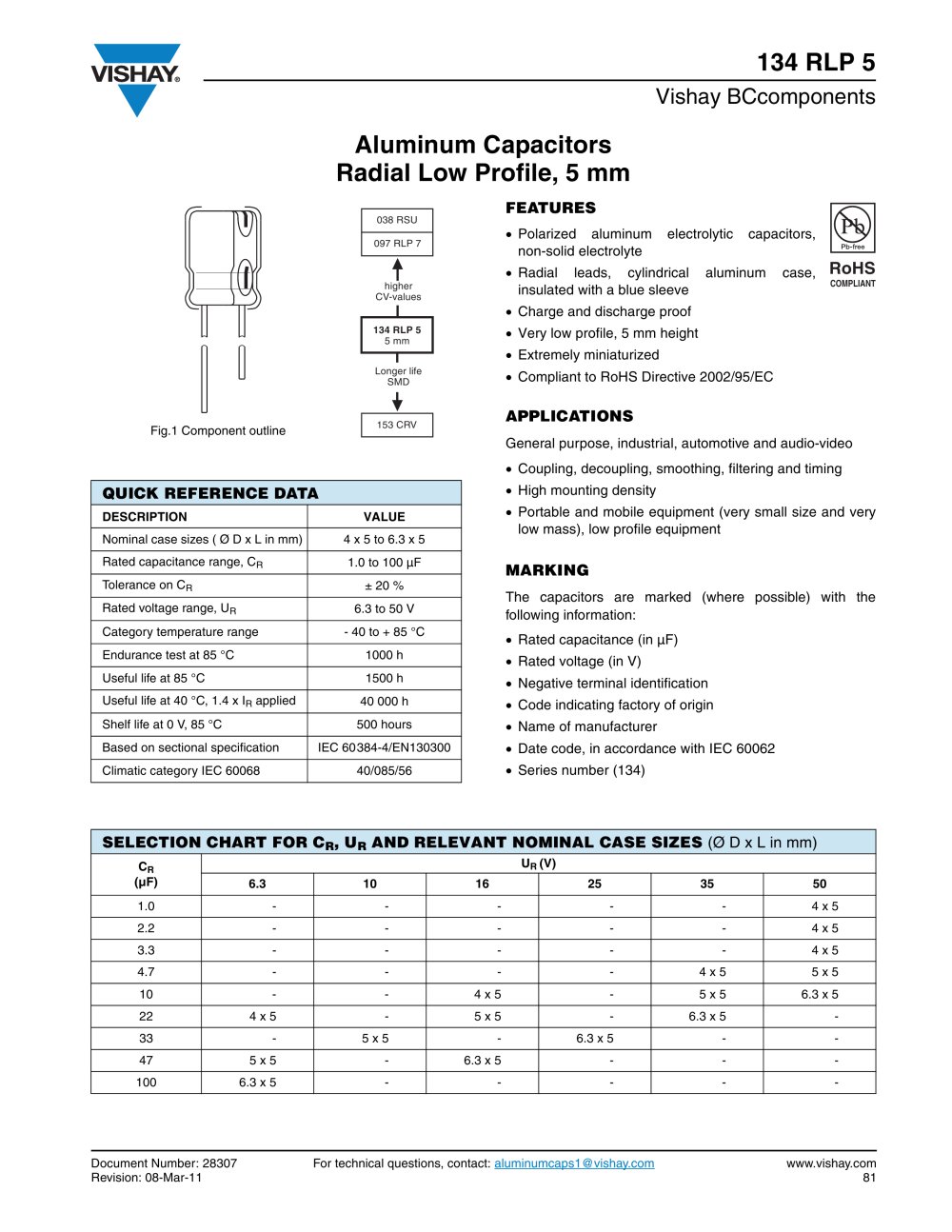

Document Number: 28307 For technical questions, contact: aluminumcaps1@vishay.com www.vishay.com Revision: 08-Mar-11 81 Aluminum Capacitors Radial Low Profile, 5 mm 134 RLP 5 Vishay BCcomponents FEATURES „h Polarized aluminum electrolytic capacitors, non-solid electrolyte „h Radial leads, cylindrical aluminum case, insulated with a blue sleeve „h Charge and discharge proof „h Very low profile, 5 mm height „h Extremely miniaturized „h Compliant to RoHS Directive 2002/95/EC APPLICATIONS General purpose, industrial, automotive and audio-video „h Coupling, decoupling, smoothing, filtering and timing „h High mounting density „h Portable and mobile equipment (very small size and very low mass), low profile equipment MARKING The capacitors are marked (where possible) with the following information: „h Rated capacitance (in ìF) „h Rated voltage (in V) „h Negative terminal identification „h Code indicating factory of origin „h Name of manufacturer „h Date code, in accordance with IEC 60062 „h Series number (134) QUICK REFERENCE DATA DESCRIPTION VALUE Nominal case sizes ( Ø D x L in mm) 4 x 5 to 6.3 x 5 Rated capacitance range, CR 1.0 to 100 ìF Tolerance on CR ± 20 % Rated voltage range, UR 6.3 to 50 V Category temperature range - 40 to + 85 °C Endurance test at 85 °C 1000 h Useful life at 85 °C 1500 h Useful life at 40 °C, 1.4 x IR applied 40 000 h Shelf life at 0 V, 85 °C 500 hours Based on sectional specification IEC 60384-4/EN130300 Climatic category IEC 60068 40/085/56 134 RLP 5 5 mm 097 RLP 7 038 RSU higher CV -values Longer life SM D Fig.1 Component outline 153 CRV RoHS COMPLIANT SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm) CR (ìF) UR (V) 6.3 10 16 25 35 50 1.0 - - - - - 4 x 5 2.2 - - - - - 4 x 5 3.3 - - - - - 4 x 5 4.7 - - - - 4 x 5 5 x 5 10 - - 4 x 5 - 5 x 5 6.3 x 5 22 4 x 5 - 5 x 5 - 6.3 x 5 - 33 - 5 x 5 - 6.3 x 5 - - 47 5 x 5 - 6.3 x 5 - - - 100 6.3 x 5 - - - - -

Open the catalog to page 1

134 RLP 5 Vishay BCcomponents Aluminum Capacitors Radial Low Profile, 5 mm www.vishay.com For technical questions, contact: aluminumcaps1@vishay.com Document Number: 28307 82 Revision: 08-Mar-11 DIMENSIONS in millimeters AND AVAILABLE FORMS Table 1 Note Detailed tape dimensions see section ‘PACKAGING’. L 15 min 5 min Ø D Ø d F ± 0.5 + - Fig.2 Form CA: Long leads Case Ø D = 4 to 6.3 mm; pitch F = 5 mm Fig.3 Form TFA: Taped in box (ammopack) pitch F = 2.5 mm Case „wƒnD = 4 to 6.3 mm Fig.4 Form TNA: Taped in box (ammopack) DIMENSIONS in millimeters AND PACKAGING QUANTITIES NOMINAL CASE SIZE Ø...

Open the catalog to page 2

134 RLP 5 Vishay BCcomponents Aluminum Capacitors Radial Low Profile, 5 mm www.vishay.com For technical questions, contact: aluminumcaps1@vishay.com Document Number: 28307 84 Revision: 08-Mar-11 RIPPLE CURRENT AND USEFUL LIFE Table 2 Table 3 3.3 3.2 3.0 2.8 2.6 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0 0.8 0.5 0.0 3.1 40 50 60 70 80 90 100 Tamb (°C) lifetime multiplier (1) 70 50 4.0 6 .0 2.0 1.5 30 15 10 3.0 20 1.0 IA IR CCC205 Fig.5 Multiplier of useful life as a function of ambient temperature and ripple current load IA = actual ripple current at 120 Hz IR = rated ripple current at 120 Hz, 85 „aC...

Open the catalog to page 4

Document Number: 91000 www.vishay.com Revision: 11-Mar-11 1 Disclaimer Legal Disclaimer Notice Vishay ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee...
