Weight Indicator - WIN 3

Product catalog summary

Overview: The WIN 3 Weight Indicator is a robust device housed in a stainless steel IP-65 box, designed for weight presentation and level monitoring. It features a front panel for requesting gross weight, net weight, and tare, along with keys for setup and calibration.

Specifications:

Display: 4-digit, 7-segment LED with selectable resolution, recommended up to 3000 divisions for 1 mV/V input signal.
Level Relays: 3 independent relays, each with a change-over type, supporting up to 2 A, 30 V AC/DC.
Transducer Input: 10V excitation, symmetrical to earth, with a sense input range of 2–10 V.
Analogue Output: Options for 0-10 VDC or 0-20 mA, 4-20 mA, both optoisolated.
Interface: RS-232/RS-485 for computer communication.
Power Supply: 94–132 VAC/200 mA or 187–264 VAC/100 mA, 48–62 Hz.
Temperature Range: 0– +50°C.
Protection: IP 65 rated.

Functional Capabilities: The device supports monitoring of three different levels, which can be programmed for gross, net, or displayed weight. It includes automatic functioning inspection and watchdog monitoring to ensure weight value integrity.

Technical Data:

Temperature Effects: On zero, <0.1 µV/°C for signal conversion and <0.006 %/°C for digital to output conversion.
Resolution: More than 5000 steps for analogue output.

Installation: The device includes connector blocks with screw terminals and fixing holes for secure installation.

Catalog excerpts

helitera.se [JB] Subject to change without notice. 025 EN 0212 >

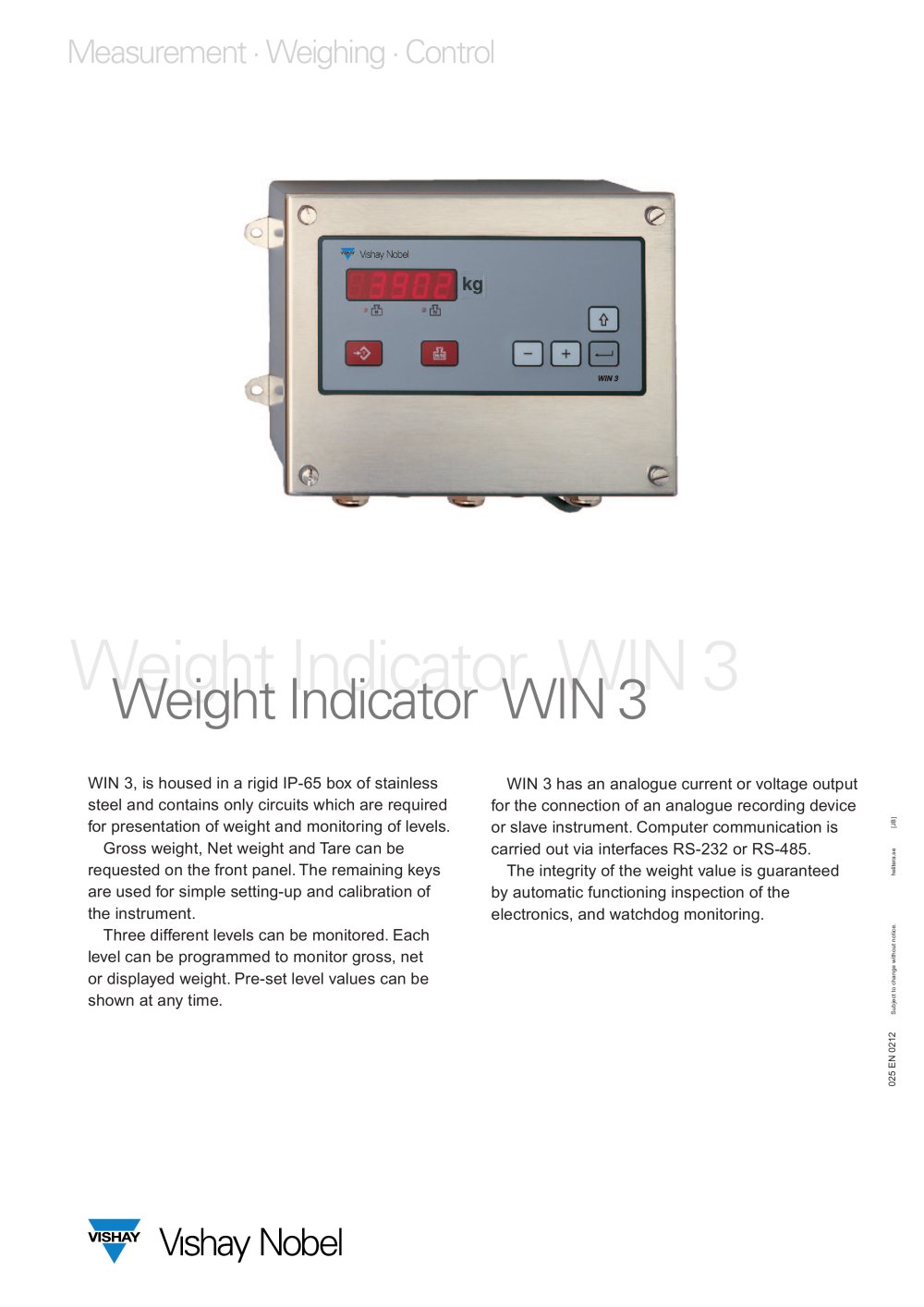

Open the catalog to page 1

Voltage output 0-10 VDC, max 10 mA, optoisolatedorCurrent output 0-20 mA, 4-20 mA, optoisolated, max. 500 ohm resistive load.Resolution More than 5000 stepsTemperature effects of the digital to output conversion on zero <0.006 %/ְC on gain <50 ppm/C Display б sign and 4 digits (7 segment LEDs). Height 15 mm. Selectable resolution. Recommended up to 3000 divisions for 1 mV/V input signal. Analogue output Level relays Number of relays 3 independent. Relay type 1 change over. Contact data Max. 2 A, 30 V AC/DC. Transducer input Excitation 10V ұ5 %, max. 150 mA. Symmetrical to earth. Sense-input 210...

Open the catalog to page 2
