LVDT Signal Conditioner
3Pages

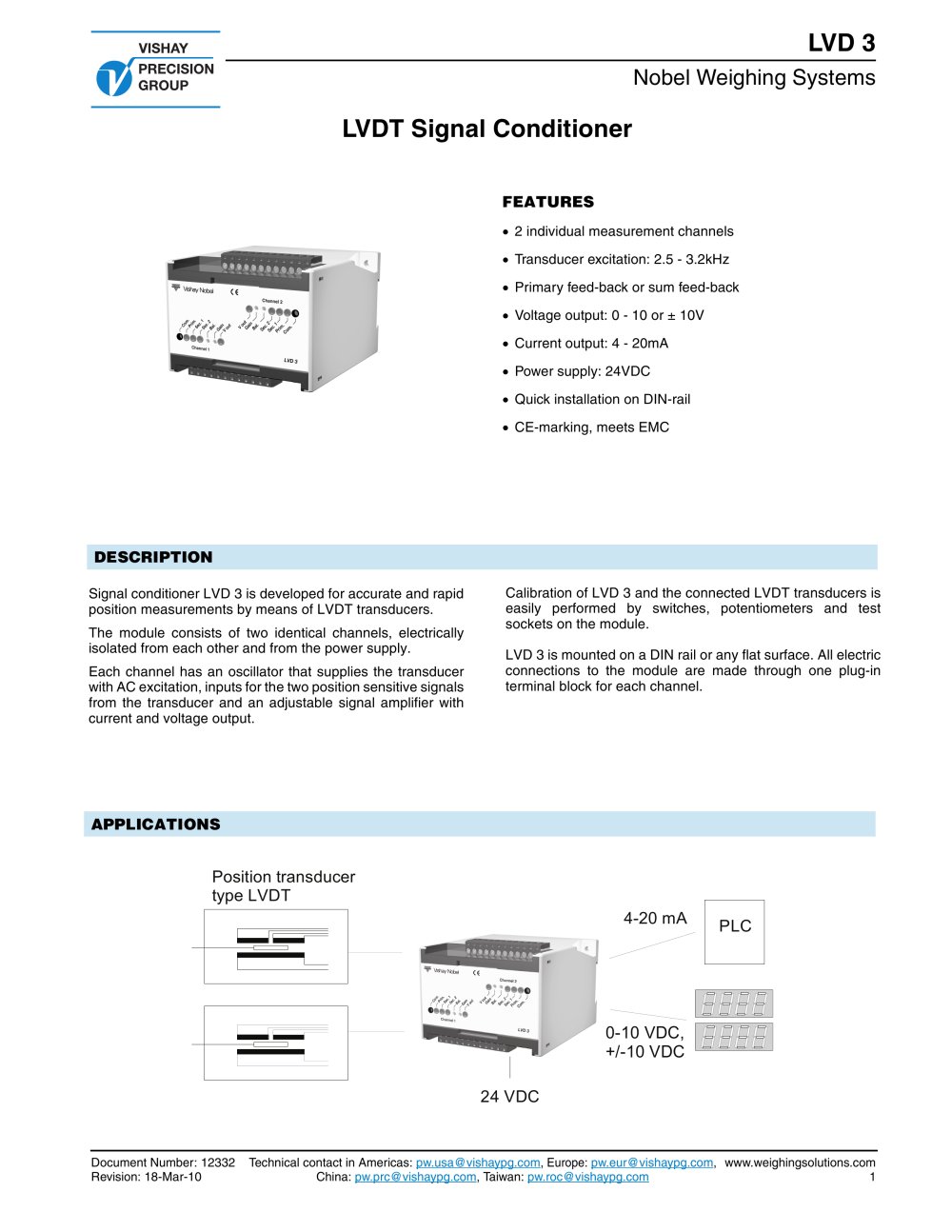

LVDT Signal Conditioner LVD 3 Nobel Weighing Systems Document Number: 12332 Technical contact in Americas: pw.usa@vishaypg.com, Europe: pw.eur@vishaypg.com, www.weighingsolutions.com Revision: 18-Mar-10 China: pw.prc@vishaypg.com, Taiwan: pw.roc@vishaypg.com 1 FEATURES • 2 individual measurement channels • Transducer excitation: 2.5 - 3.2kHz • Primary feed-back or sum feed-back • Voltage output: 0 - 10 or ± 10V • Current output: 4 - 20mA • Power supply: 24VDC • Quick installation on DIN-rail • CE-marking, meets EMC DESCRIPTION Signal conditioner LVD 3 is developed for accurate and rapid position measurements by means of LVDT transducers. The module consists of two identical channels, electrically isolated from each other and from the power supply. Each channel has an oscillator that supplies the transducer with AC excitation, inputs for the two position sensitive signals from the transducer and an adjustable signal amplifier with current and voltage output. Calibration of LVD 3 and the connected LVDT transducers is easily performed by switches, potentiometers and test sockets on the module. LVD 3 is mounted on a DIN rail or any flat surface. All electric connections to the module are made through one plug-in terminal block for each channel. APPLICATIONS PLC 0-10 VDC, +/-10 VDC 4-20 mA 24 VDC Position transducer type LVDT

LVD 3 Nobel Weighing Systems LVDT Signal Conditioner www.weighingsolutions.com Technical contact in Americas: pw.usa@vishaypg.com, Europe: pw.eur@vishaypg.com, Document Number: 12332 2 China: pw.prc@vishaypg.com, Taiwan: pw.roc@vishaypg.com Revision: 18-Mar-10 SPECIFICATIONS OSCILLATOR FOR PRIMARY COIL Frequency 2.5 - 3.2kHz Frequency Stability ± 1% Distortion max. 4% Voltage max. 6V AC, 150mA Amplitude Stability ± 0.1% INPUTS FOR SECONDARY COILS Voltage max. 6.8V AC Impedance min. 150 kohm SIGNAL CONVERSION Linearity ± 0.05% Offset Adjustment ± 2 - ± 7% of output range Offset Drift max....
