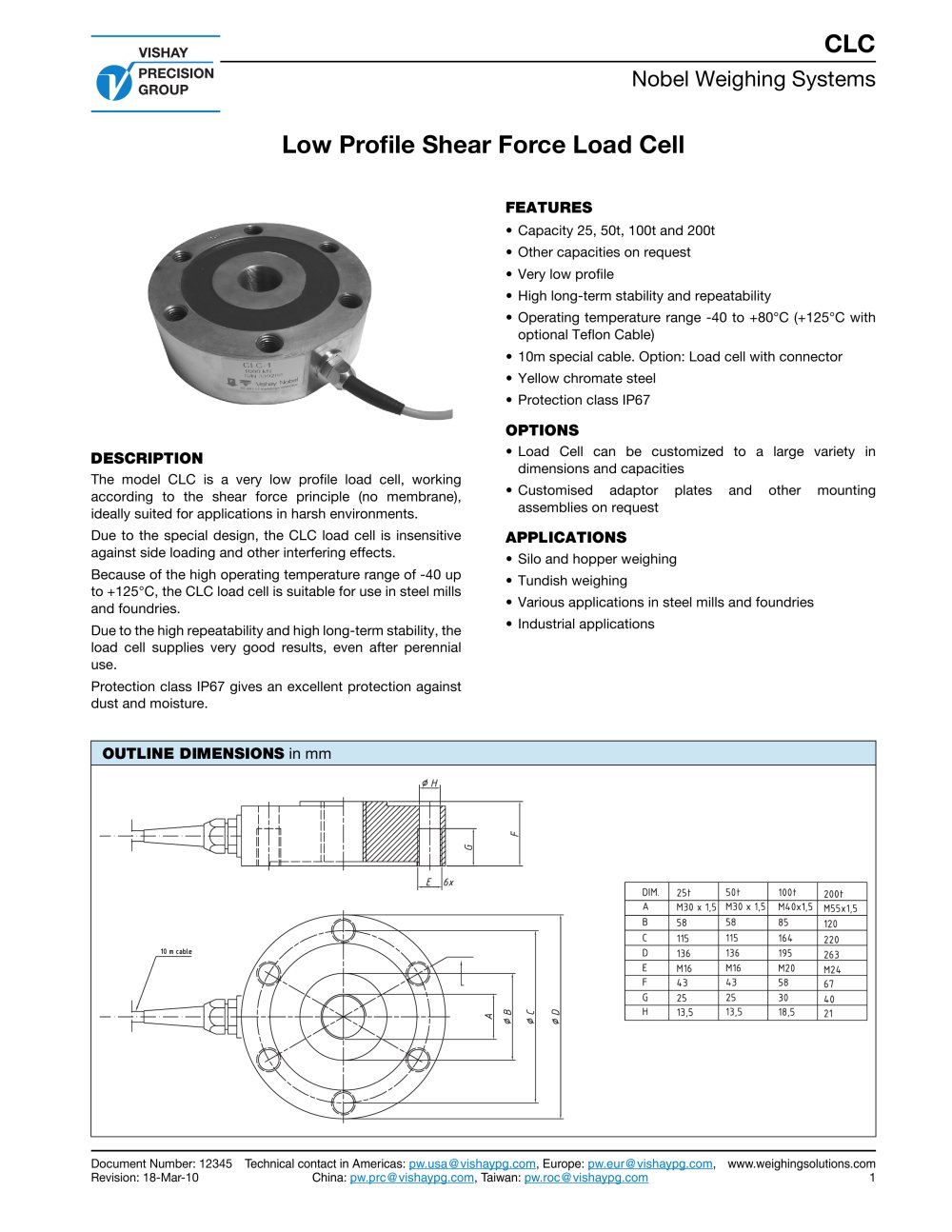

Document Number: 12345 Technical contact in Americas: [email protected], Europe: [email protected], www.weighingsolutions.com Revision: 18-Mar-10 China: [email protected], Taiwan: [email protected] 1 Low Profile Shear Force Load Cell CLC Nobel Weighing Systems DESCRIPTION The model CLC is a very low profile load cell, working according to the shear force principle (no membrane), ideally suited for applications in harsh environments. Due to the special design, the CLC load cell is insensitive against side loading and other interfering effects. Because of the high operating temperature range of -40 up to +125°C, the CLC load cell is suitable for use in steel mills and foundries. Due to the high repeatability and high long-term stability, the load cell supplies very good results, even after perennial use. Protection class IP67 gives an excellent protection against dust and moisture. FEATURES • Capacity 25, 50t, 100t and 200t • Other capacities on request • Very low profile • High long-term stability and repeatability • Operating temperature range -40 to +80°C (+125°C with optional Teflon Cable) • 10m special cable. Option: Load cell with connector • Yellow chromate steel • Protection class IP67 OPTIONS • Load Cell can be customized to a large variety in dimensions and capacities • Customised adaptor plates and other mounting assemblies on request APPLICATIONS • Silo and hopper weighing • Tundish weighing • Various applications in steel mills and foundries • Industrial applications OUTLINE DIMENSIONS in mm

CLC Nobel Weighing Systems Low Profile Shear Force Load Cell www.weighingsolutions.com Technical contact in Americas: [email protected], Europe: [email protected], Document Number: 12345 2 China: [email protected], Taiwan: [email protected] Revision: 18-Mar-10 SPECIFICATIONS PARAMETER VALUE UNIT Rated capacity (R.C.) (1) 25 50 100 200 t Rated output (C) about 1.0 mV/V Total error <0.1 ± % of C Temperature effect: on zero 0.005 ± % of C/°C Temperature effect: on output 0.005 ± % of C/°C Nominal temperature range -10 to +80 °C Operating temperature range -40 to +80 (+125 on request) °C...
