Loadcell - KISD-6

Product catalog summary

Technical Specifications:

Rated Load (R.L.): Available in 50, 100, 200, 400, 1000 kN.
Combined Error (Terminal): ± 0.1% of Rated Output (R.O.).
Repeatability: 0.02% of R.O.
Overload Capacity: Safe at 100% and ultimate at 200% of R.L.
Sideload Capacity: Safe at 100% and ultimate at 200% of R.L.
Input Voltage: Recommended 10 V DC or AC, maximum 18 V DC or AC.
Input Resistance: 382 ± 3 ohms.
Output Resistance: 350 ± 3 ohms.
Rated Output (R.O.): Approximately 2 mV/V.
Zero Balance: ± 5% of R.O.
Shunt Calibration Tolerance: ± 0.25% of value.
Temperature Range: -40 to +80°C, extendable to +100°C on demand.
Temperature Effect: On output ± 0.005% of output/°C, on zero balance ± 0.005% of R.O./°C.
Insulation Resistance: Greater than 4 Gohm at 200 VDC.
Material: Stainless steel.
Electrical Connection: 10 m shielded four-conductor cable.
Protection Degree: IP 67.

Certifications:

ATEX certified versions available for explosive atmospheres: II 1GD EEx ia IIC T4 Tamb=60°C.

Installation and Dimensions:

Includes detailed dimensions and installation examples with recommended points of support and possible support areas.

Catalog excerpts

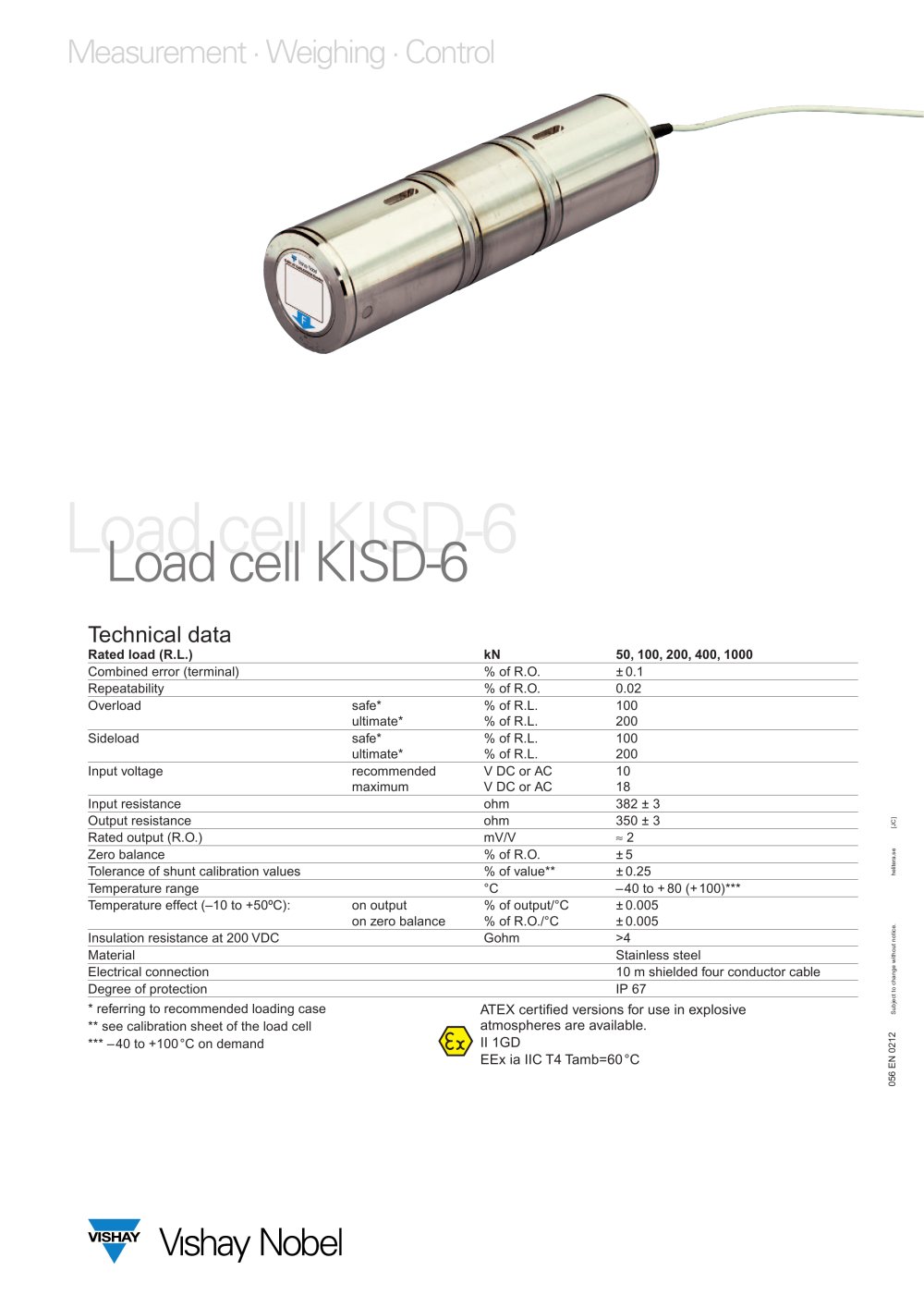

Rated load (R.L.) kN 50, 100, 200, 400, 1000 Combined error (terminal) % of R.O. 0.1 Repeatability % of R.O. 0.02Overload safe* % of R.L. 100 ultimate* % of R.L. 200Sideload safe* % of R.L. 100 ultimate* % of R.L. 200Input voltage recommended V DC or AC 10 maximum V DC or AC 18 Input resistance ohm 382 ѱ 3 Output resistance ohm 350 3 Rated output (R.O.) mV/V ѢɈ 2Zero balance % of R.O. 5Tolerance of shunt calibration values % of value** ѱ0.25Temperature range C Ж40 to +80 (+100)*** Temperature effect (10 to +50ֺC): on output % of output/C б0.005 on zero balance % of R.O./C б0.005 Insulation resistance at 200 VDC Gohm >4 Material Stainless steelElectrical connection 10 m shielded four conductor cableDegree of protection IP 67* referring to recommended loading case** see calibration sheet of the load cell *** 40 to +100ְC on demand > helitera.se [JC] Subject to change without notice. 056 EN 0212 size="-1">
