Displacement Transducer
1 / 3Pages

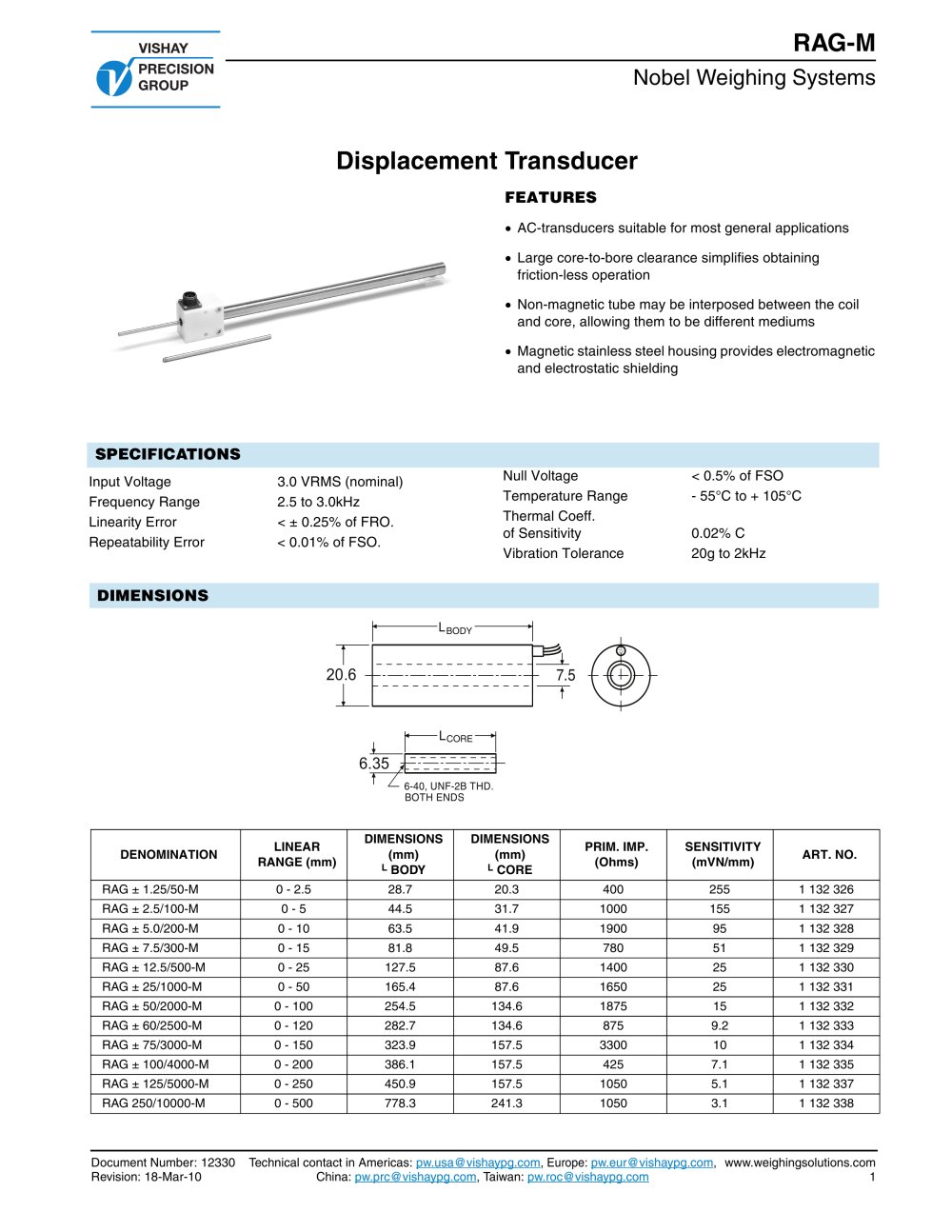

Displacement Transducer RAG-M Nobel Weighing Systems Document Number: 12330 Technical contact in Americas: pw.usa@vishaypg.com, Europe: pw.eur@vishaypg.com, www.weighingsolutions.com Revision: 18-Mar-10 China: pw.prc@vishaypg.com, Taiwan: pw.roc@vishaypg.com 1 FEATURES • AC-transducers suitable for most general applications • Large core-to-bore clearance simplifies obtaining friction-less operation • Non-magnetic tube may be interposed between the coil and core, allowing them to be different mediums • Magnetic stainless steel housing provides electromagnetic and electrostatic shielding SPECIFICATIONS Input Voltage 3.0 VRMS (nominal) Frequency Range 2.5 to 3.0kHz Linearity Error < ± 0.25% of FRO. Repeatability Error < 0.01% of FSO. Null Voltage < 0.5% of FSO Temperature Range - 55°C to + 105°C Thermal Coeff. of Sensitivity 0.02% C Vibration Tolerance 20g to 2kHz DIMENSIONS DENOMINATION LINEAR RANGE (mm) DIMENSIONS (mm) L BODY DIMENSIONS (mm) L CORE PRIM. IMP. (Ohms) SENSITIVITY (mVN/mm) ART. NO. RAG ± 1.25/50-M 0 - 2.5 28.7 20.3 400 255 1 132 326 RAG ± 2.5/100-M 0 - 5 44.5 31.7 1000 155 1 132 327 RAG ± 5.0/200-M 0 - 10 63.5 41.9 1900 95 1 132 328 RAG ± 7.5/300-M 0 - 15 81.8 49.5 780 51 1 132 329 RAG ± 12.5/500-M 0 - 25 127.5 87.6 1400 25 1 132 330 RAG ± 25/1000-M 0 - 50 165.4 87.6 1650 25 1 132 331 RAG ± 50/2000-M 0 - 100 254.5 134.6 1875 15 1 132 332 RAG ± 60/2500-M 0 - 120 282.7 134.6 875 9.2 1 132 333 RAG ± 75/3000-M 0 - 150 323.9 157.5 3300 10 1 132 334 RAG ± 100/4000-M 0 - 200 386.1 157.5 425 7.1 1 132 335 RAG ± 125/5000-M 0 - 250 450.9 157.5 1050 5.1 1 132 337 RAG 250/10000-M 0 - 500 778.3 241.3 1050 3.1 1 132 338 CORE LBODY 20.6 6.35 7.5 6-40, UNF-2B THD. BOTH ENDS L

RAG-M Nobel Weighing Systems Displacement Transducer www.weighingsolutions.com Technical contact in Americas: pw.usa@vishaypg.com, Europe: pw.eur@vishaypg.com, Document Number: 12330 2 China: pw.prc@vishaypg.com, Taiwan: pw.roc@vishaypg.com Revision: 18-Mar-10 GENERAL HOUSING ACCESSORIES ART NO Mounting Attachment 6 327 553 Mounting Attachment with Connector 5 155 991 Core Handle, Length 400mm 6 330 416 Connection Cable 6 391 749 LVDT Signal Conditioner, LVD 3 110 171 40 19 56 Ø 20.6 40 Ø 11 (2x) Ø 7 (2x) 40 30 Ø 7 (2x) Ø 6 56 40 64 L BODY 14 LCORE MOUNTING ATTACHMENT 6 327 553 MOUNTING...
