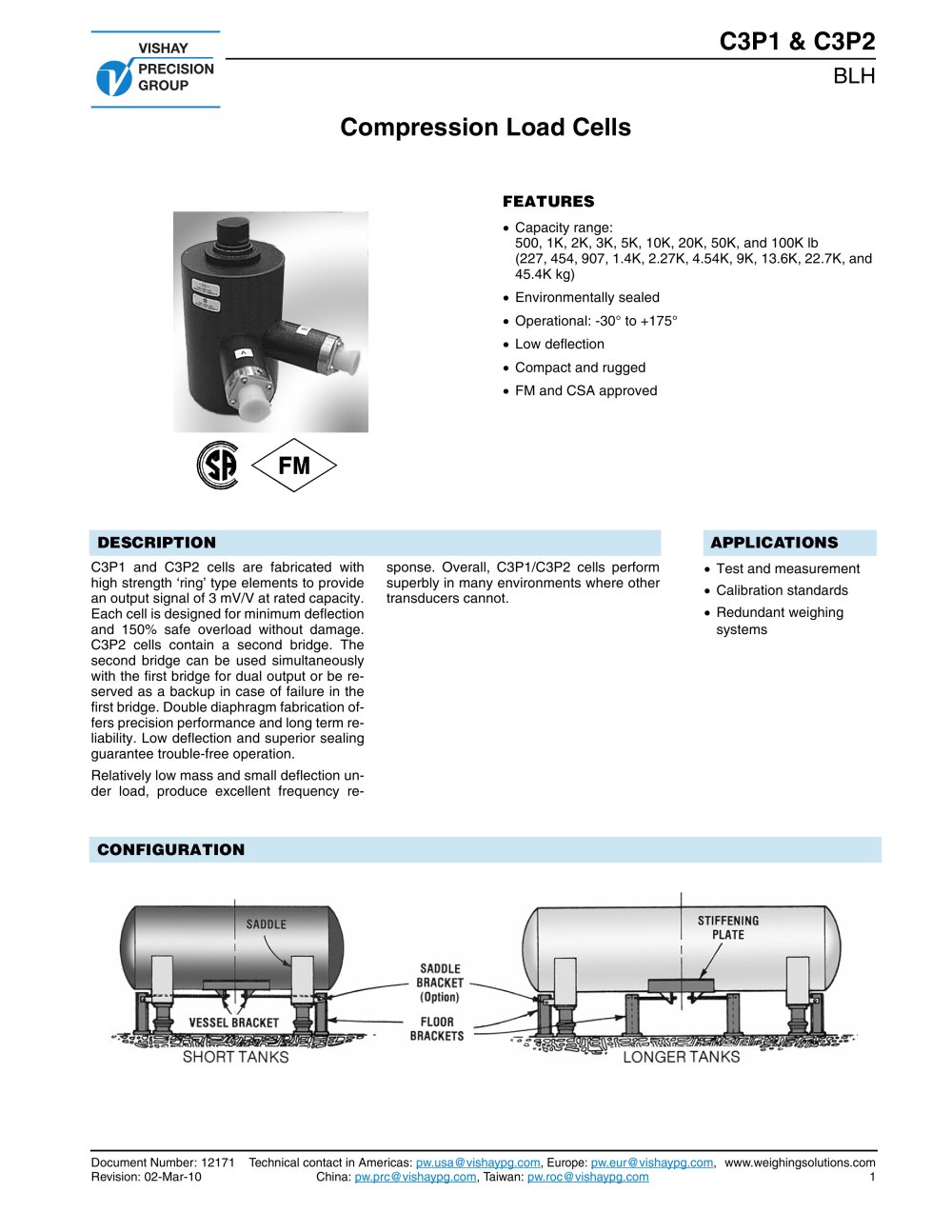

Compression Load Cells C3P1 & C3P2 BLH Document Number: 12171 Technical contact in Americas: [email protected], Europe: [email protected], www.weighingsolutions.com Revision: 02-Mar-10 China: [email protected], Taiwan: [email protected] 1 FEATURES • Capacity range: 500, 1K, 2K, 3K, 5K, 10K, 20K, 50K, and 100K lb (227, 454, 907, 1.4K, 2.27K, 4.54K, 9K, 13.6K, 22.7K, and 45.4K kg) • Environmentally sealed • Operational: -30° to +175° • Low deflection • Compact and rugged • FM and CSA approved DESCRIPTION C3P1 and C3P2 cells are fabricated with high strength ‘ring’ type elements to provide an output signal of 3 mV/V at rated capacity. Each cell is designed for minimum deflection and 150% safe overload without damage. C3P2 cells contain a second bridge. The second bridge can be used simultaneously with the first bridge for dual output or be reserved as a backup in case of failure in the first bridge. Double diaphragm fabrication offers precision performance and long term reliability. Low deflection and superior sealing guarantee trouble-free operation. Relatively low mass and small deflection under load, produce excellent frequency response. Overall, C3P1/C3P2 cells perform superbly in many environments where other transducers cannot. APPLICATIONS • Test and measurement • Calibration standards • Redundant weighing systems CONFIGURATION

C3P1 & C3P2 BLH Compression Load Cells www.weighingsolutions.com Technical contact in Americas: [email protected], Europe: [email protected], Document Number: 12171 2 China: [email protected], Taiwan: [email protected] Revision: 02-Mar-10 OUTLINE DIMENSIONS - DOUBLE BRIDGE - 500 TO 10K POUNDS OUTLINE DIMENSIONS - SINGLE BRIDGE - 500 TO 10K POUNDS

C3P1 & C3P2 Compression Load Cells BLH Document Number: 12171 Technical contact in Americas: [email protected], Europe: [email protected], www.weighingsolutions.com Revision: 02-Mar-10 China: [email protected], Taiwan: [email protected] 3 OUTLINE DIMENSIONS - DOUBLE BRIDGE - 20K TO 50K POUNDS OUTLINE DIMENSIONS - DOUBLE BRIDGE - 100K POUNDS

C3P1 & C3P2 BLH Compression Load Cells www.weighingsolutions.com Technical contact in Americas: [email protected], Europe: [email protected], Document Number: 12171 4 China: [email protected], Taiwan: [email protected] Revision: 02-Mar-10 SPECIFICATIONS Performance Capacities 500, 1K, 2K, 3K, 5K, 10K, 20K, 50K, & 100K lb (227, 454, 907, 1.4K, 2.27K, 4.54K, 9K, 13.6K, 22.7K, and 45.4K kg) Rated Output (RO) 3.0 mV/V (+/-0.10%) Repeatability 0.02% RO Combined Error 0.10% RO - 500 lb 0.07% RO (1K - 100K lb) Zero Balance 1.0% RO Creep (20 minutes) 0.03% RO Temperature Effects: On Zero Balance...
