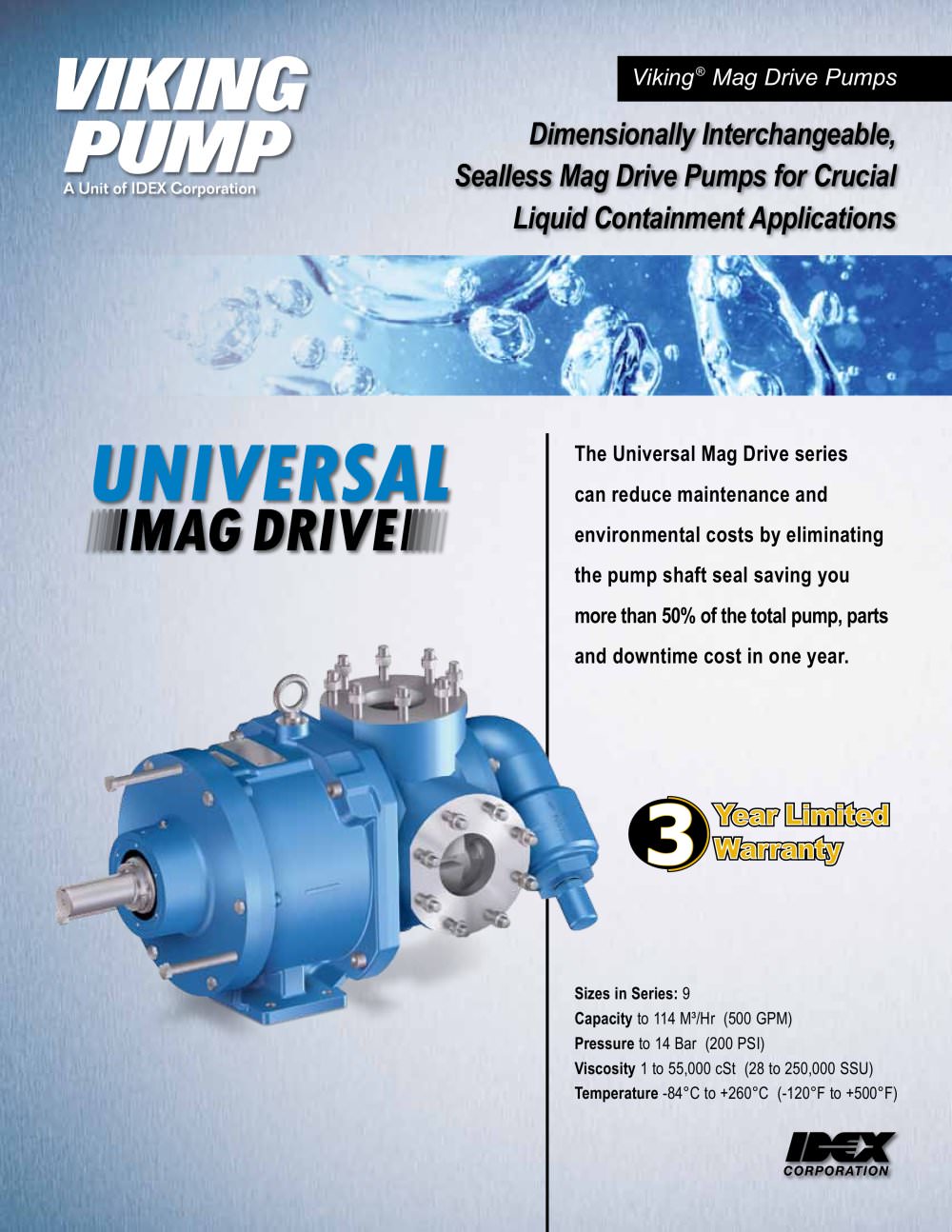

Sizes in Series: 9 Capacity to 114 M³/Hr (500 GPM) Pressure to 14 Bar (200 PSI) Viscosity 1 to 55,000 cSt (28 to 250,000 SSU) Temperature -84°C to +260°C (-120°F to +500°F) Viking® Mag Drive Pumps The Universal Mag Drive series can reduce maintenance and environmental costs by eliminating the pump shaft seal saving you more than 50% of the total pump, parts and downtime cost in one year. Dimensionally Interchangeable, Sealless Mag Drive Pumps for Crucial Liquid Containment Applications

Open the catalog to page 1
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 2

2 Viking Universal Mag Drive Series Viking® Advantages Performance No packing or mechanical seals means no seal failure or replacement Easily handles both high and low viscosity fluids Reduce material loss, contamination and general housekeeping Simple design, easy to maintain Proven reliability, 20+ years of experience Technology Dimensionally interchangeable with Viking’s Universal Seal and Heavy-Duty Bracketed pumps Proven sealless design Simple solution for upgrading existing pumps Short-term, dry-run capabilities for easy line clearing or emptying tanks without damaging the pump Viking...

Open the catalog to page 2
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 3

Viking Universal Mag Drive Series 3 Applications Hard-to-Seal Liquids Shaft seal leakage is the number one cause of pump downtime and maintenance. Shaft seals wear faster when liquid, air and heat combine at the seal to cause chemical reactions, like: • Crystallization (e.g. isocyanates) Abrasive crystals cause premature wear. • Sticking (e.g. adhesives, epoxy resins, paints) Seal faces bond when pump stops and fails at startup. • Varnishing (e.g. petroleum products) Layer builds up on seal faces causing separation. Typical Applications: • Isocyanates • Sodium Hydroxide • Adhesives • Epoxy...

Open the catalog to page 3
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 4

4 Viking Universal Mag Drive Series Viking® Benefits EASY INSTALLATION ADVANCED DURABILITY ¡ Dimensionally Interchangeable Proven, dimensionally interchangeable design for Viking's Universal Seal and Heavy-Duty Bracketed pumps as well as competitive pumps that duplicate Viking's foot print. Provides simple solution for upgrading existing pumps, utilizing existing reducer, motor, coupling, guard, wiring and base. ¡ Multiple Port Configurations Multiple port sizes, types and ratings are available including threaded, raised and flat face flanged (125#, 150#, 250# & 300#). Provides an easy...

Open the catalog to page 4
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 5

Viking Universal Mag Drive Series 5 ¡ Short-Term Run-Dry Capability Short-term run-dry capability is possible due to state of the art design and magnet technology. Protects the pump during priming and accidental empty-tank situations. ¡ Relief Valve, Standard Pumps come with an adjustable internal pressure relief valve on standard design. Jacketed pressure relief valves are available. Protects pump from over-pressure. APPLICATION FLEXIBILITY LOWER COST OF OWNERSHIP ¡ Dual Thrust Control Washers Positive control of rotor position for more accurate flow, also reduces pump wear. Provides lower...

Open the catalog to page 5
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 6

6 Viking Universal Mag Drive Series Universal Mag Drive Series Construction Materials of Construction Kalrez® is a registered trademark of DuPont Performance Elastomers. Viton® is a registered trademark of DuPont Performance Elastomers. Component Cast Iron Series 8124A Steel Externals Series 8123A Stainless Steel Series 8127A Casing Cast Iron ASTM A48, Class 35B Steel ASTM A216, Grade WCB Stainless Steel ASTM A 743, Grade CF8M Head Cast Iron ASTM A48, Class 35B Steel ASTM A216, Grade WCB Stainless Steel ASTM A 743, Grade CF8M Case Hardened Bracket Cast Iron ASTM A48, Class 35B Cast Iron...

Open the catalog to page 6
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 7

Viking Universal Mag Drive Series 7 Pump Model ‡E Standard Port Size ‡F Capacity at Maximum Rated Speed Maximum Hydrostatic Pressure ‡@ Maximum Discharge Pressure ‡A Maximum Recommended Temperature Approximate Shipping Weight mm in. M³/Hr. GPM RPM BAR PSI BAR PSI Deg. C Deg. F Kg. Lb. H8124A 40 ‡B 1.5 ‡B 3.4 15 1750 28 400 14 200 107 225 27 60 H8123A H8127A 40 ‡D 1.5 ‡D 10 150 32 70 HL8124A 40 ‡B 1.5 ‡B 6.8 30 1750 28 400 14 200 107 225 27 60 HL8123A 40 ‡D 1.5 ‡D 32 70 HL8127A 10 150 K8124A 50 ‡B 2 ‡B 18 80 780 28 400 14 200 107 225 88 195 K8123A 50 ‡D 2 ‡D 93 205 K8127A 10 150 KK8124A 50...

Open the catalog to page 7
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 9

Viking Universal Mag Drive Series 9 Dimensions for Q Size - All Materials of Construction Dimensions for QS Size - All Materials of Construction Model A (in) B C D E F G H J K L M N O P S T U‡C V W Q8124A Q8123A Q8127A ‡A‡B 4 in 8.25 14.00 8.75 4.12 4.00 10.00 6.00 0.69 3.58 6.62 11.13 3.00 0.80 1.00 26.75 4.68 1.94 .50 x .25 8.29 mm 210 356 222 105 102 254 152 18 91 168 283 76 20 25 679 119 49 211 Model A (in) B C D E F G H J K L M N O P S T U‡C V W QS8124A QS8123A QS8127A ‡A‡B 6 in 9.00 14.00 8.75 4.12 4.00 10.00 6.00 0.69 3.58 7.12 11.13 4.00 0.80 1.00 28.25 4.68 1.94 .50 x .25 8.29 mm...

Open the catalog to page 9
Viking Pump - From 635_rev F - Universal Mag Drive Brochure.pdf - 10

© Viking Pump, Inc. Copyright 2009 Printed in U.S.A. 11/2009 Form No. 635-F VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local Authorized Viking Pump Distributor or contact Viking at: ASIA-PACIFIC GROUP Singapore Phone: +65-6763-6633 Fax: +65-6764-4020 www.idexfmt-asia.com China - Shanghai Phone: +86-21-5241-5599 Fax: +86-21-5241-8339 www.idexfmt-asia.com China - Beijing Phone: +86-10-6566-9090...
