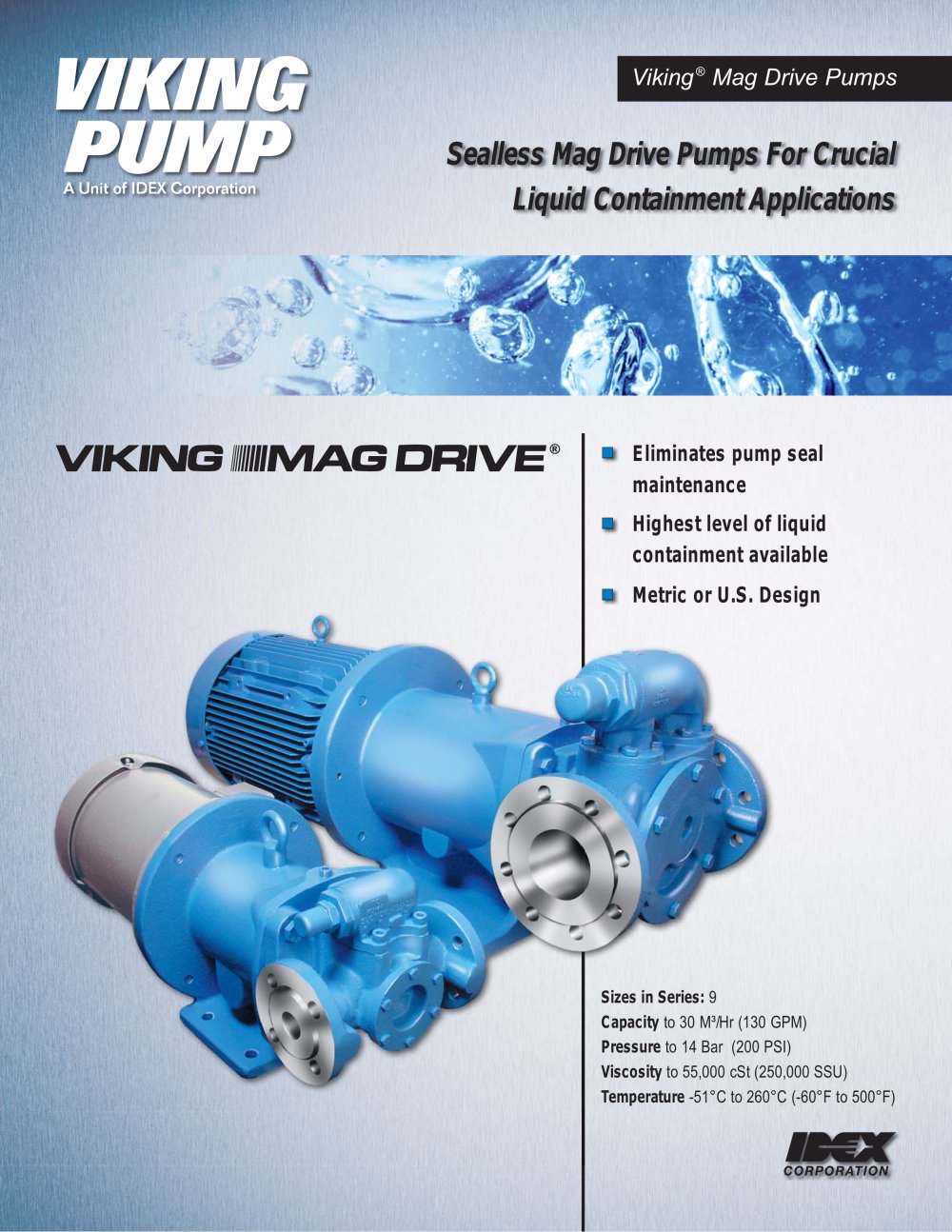

Viking® Mag Drive Pumps Sizes in Series: 9 Capacity to 30 M³/Hr (130 GPM) Pressure to 14 Bar (200 PSI) Viscosity to 55,000 cSt (250,000 SSU) Temperature -51°C to 260°C (-60°F to 500°F) Eliminates pump seal maintenance Highest level of liquid containment available Metric or U.S. Design ¡ ¡ ¡ Sealless Mag Drive Pumps For Crucial Liquid Containment Applications

Open the catalog to page 1

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 2

2 Viking Mag Drive Series Viking® Advantages The 855 Series Mag Drive uses the Internal Gear pumping principle The Internal Gear pumping principle offers many advantages over both centrifugal pumps and other types of positive displacement pumps, including: • High efficiency for low life-cycle cost • 14 Bar (200 PSI) capability • Smooth, non-pulsating, low-shear flow • Self priming capability • Suction lift capability • Capacity proportional to speed • Excellent metering repeatability • Able to handle thin or thick liquids in a broad temperature range • Bi-directional pump design •...

Open the catalog to page 2

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 3

Viking Mag Drive Series 3 Hard-to-Seal Liquids Shaft seal leakage is the number one cause of pump downtime and maintenance. Shaft seals wear faster when liquid, air and heat combine at the seal to cause chemical reactions, like: • Crystallization (e.g. isocyanates). Abrasive crystals cause premature wear. • Sticking (e.g. adhesives, epoxy resins, paints). Seal faces bond when pump stops, and fails at startup. • Varnishing (e.g. petroleum products). Layer builds up on seal faces causing separation. Typical Applications: • Isocyanates • Sodium Hydroxide • Adhesives • Epoxy Resins Hazardous &...

Open the catalog to page 3

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 4

4 Viking Mag Drive Series Viking® Benefits ¡ Proven Design Pump has only two moving parts proven in thousands of tough applications around the world. Simple design minimizes service requirements while providing unmatched durability and reliability. ADVANCED DURABILITY ¡ Unique Rotor Positioning System Thrust washers on both sides of front bushing lock rotor position regardless of application variables. Fixed axial position permits shortterm dry-run and bi-directional operation. EASY INSTALLATION ¡ Effective Cooling System Simple, internal channels ensure continuous liquid fl ow throughout...

Open the catalog to page 4

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 5

Viking Mag Drive Series 5 LOWER COST OF OWNERSHIP ¡ Optimized Effi ciency Proven, optimized gear and pump geometry maximizes overall effi ciency. Reduces product operating cost, providing a lower total cost of ownership. ¡ Higher Pressure Capabilities Thrust control, enhanced shaft support and a wide selection of materials permits higher pressure [14 BAR (200PSI] capabilities. Permits single pump standardization for multiple liquids and applications. ¡ Easy Drain and Flush Pump chamber drain and a canister drain facilitate fl ushing for easy liquid removal between batch operations or...

Open the catalog to page 5

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 6

6 Viking Mag Drive Series Materials of Construction & Specifications Magnetic Coupling Specifications**** Magnetic Coupling Size Models Torque Rating Options Close-Coupled to Motor Long-Coupled Ft - Lbs. IEC B-5 Flange NEMA-C Flange Bearing Carrier MD2A GS855, GG855, HL855, HJ855 4, 9 80/90, 100/112 56C, 143/145TC, 182/184TC Metric of US Shaft MD2B HL855, HJ855, AS855, AK855, AL855 14, 32, 50 100/112, 132 182/184TC, 213/215TC, 254/256TC Metric of US Shaft MD2C AS855,AK855, AL855, KE855, KKE855 40, 90, 135, 180 132, 160, 180 254/256TC, 284/286TC Metric of US Shaft **** Selecting a magnetic...

Open the catalog to page 6

Viking Pump - Form950_rev C - 855 Series Mag Drive Brochure - 8

© Viking Pump, Inc. Copyright 2009 Printed in U.S.A. 11/2009 Form No. 950-C VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local Authorized Viking Pump Distributor or contact Viking at: ASIA-PACIFIC GROUP Singapore Phone: +65-6763-6633 Fax: +65-6764-4020 www.idexfmt-asia.com China - Shanghai Phone: +86-21-5241-5599 Fax: +86-21-5241-8339 www.idexfmt-asia.com China - Beijing Phone: +86-10-6566-9090...
