Overview: This document outlines the specifications and features of the Viking Pump 4076/4176 Series, which are designed for high-speed operation and optimized performance. It covers the pump's construction, dimensions, specifications, and typical applications.

Specifications: The pumps can handle flows up to 45.6 M3/hr, pressures up to 17 BAR, viscosities from 0.5 to 22,000 cSt, and temperatures up to 150°C. Various models (HLE, ATE, ALE, KE, KKE, LQE) are detailed with specific flow rates, speeds, port sizes, pressures, and sound levels.

Construction: The pumps feature ductile iron casings and heads, with options for cast iron or hardened steel components. They include an adjustable rotor positioning for optimal end clearance and efficiency, and a large shaft/thrust bearing system to minimize shaft deflection.

Design Features: Advanced head design allows for low NPSHr and greater installation flexibility. The pumps have a metric design with DIN flanges and optimized gear geometry for high-speed performance with controlled noise levels.

Applications: Suitable for chemical processing, grain processing, petroleum products, and other applications involving oils, fuels, and additives. They can be customized with various seals and mounted directly to an IEC motor or foot-mounted.

Contact Information: Contact details for Viking Pump's offices in Canada, Europe, Latin America, and the Pacific Rim, along with their headquarters in the USA, are provided.

Catalog excerpts

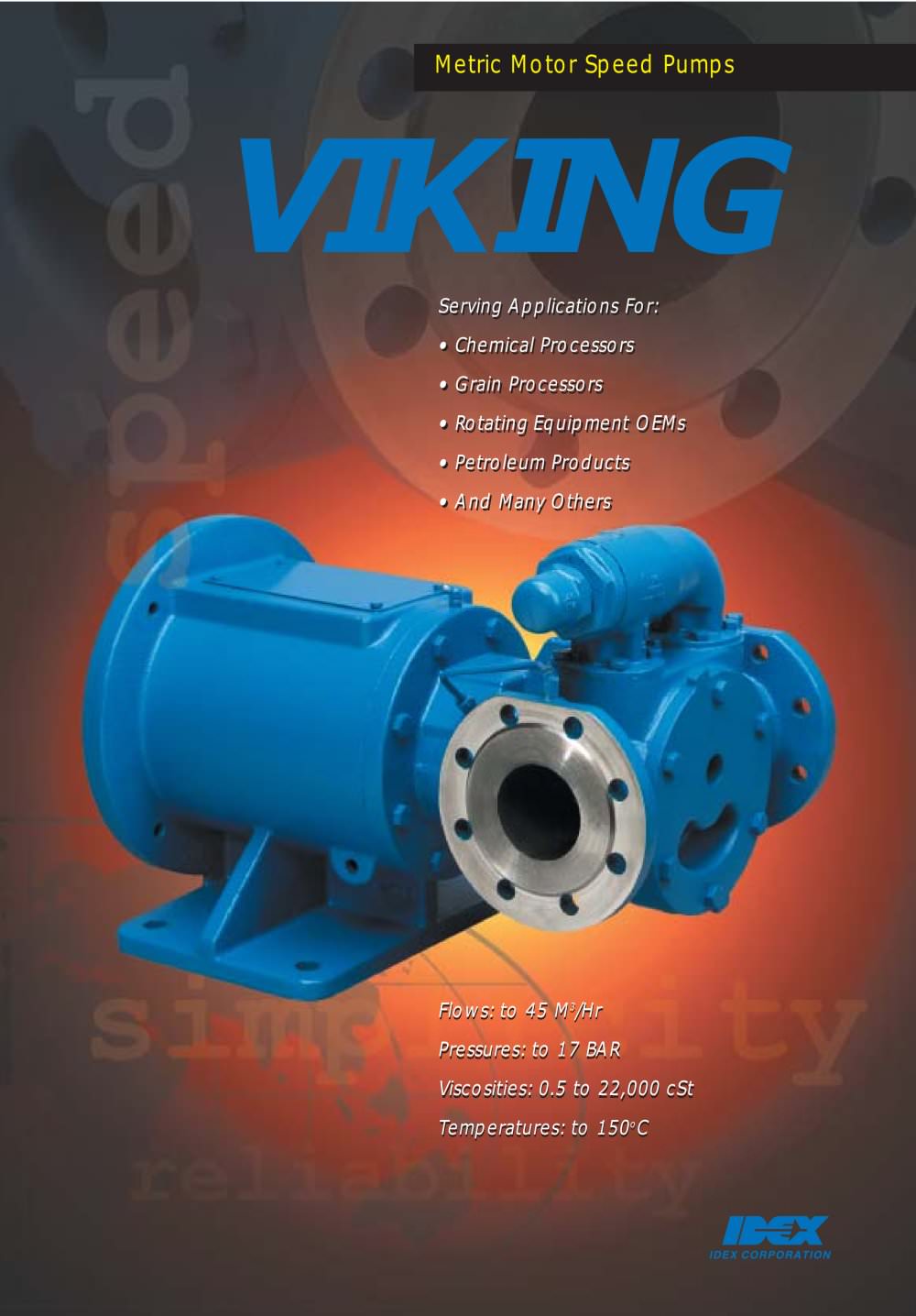

Viking Pump - Form770_rev B - Motor Speed Brochure-1

Serving Applications For:? Chemical Processors? Grain Processors? Rotating Equipment OEMs? Petroleum Products? And Many OthersServing Applications For:? Chemical Processors? Grain Processors? Rotating Equipment OEMs? Petroleum Products? And Many Others Flows: to 45 M > 3 3 /HrPressures: to 17 BARViscosities: 0.5 to 22,000 cStTemperatures: to 150 /HrPressures: to 17 BARViscosities: 0.5 to 22,000 cStTemperatures: to 150 > o o C CFlows: to 45 M >

Open the catalog to page 1

Viking Pump - Form770_rev B - Motor Speed Brochure-2

Hydraulic Coverage-6 Sizes > CAPACITY (GPM) 5010015020025010020015010050 ATE KKELQE ALE HLE KE DIFFERENTIAL PRESSURE (PSI) GlycolsGlycerins Polyols Styrenes Corn OilSoybean Oil Rape Seed Oil Fructose Glucose SolventsOils Additives Fuels > Petroleum Products Grain ProcessingChemical Processing size="-1">

Open the catalog to page 2

Viking Pump - Form770_rev B - Motor Speed Brochure-3

? The 4076/4176 Series is not a standard pump forced to high speeds.It is a new design developed for efficient motor speed operation.? New concepts in idler and head designs deliversmooth, high-speed, hydraulic performance.? The robust mechanical design provides traditionalViking reliability and maximum pump life. > Adjustable RotorPositioning allows optimumend clearance and efficiency. ? The 4076/4176 Series provides more performancefrom a smaller package at a lower total installed cost.? Speed reducers, and their costs, are often eliminated. ? Vikings no-compromise design retains excellentNPSHr...

Open the catalog to page 3

Viking Pump - Form770_rev B - Motor Speed Brochure-4

A Large Shaft/Thrust Bearing System with a large-diameter carbon graphite bushing minimizes shaft deflection extending rotor and seal life. > Metric Design (DIN flanges,DIN seal chamber, IEC motor mount, metric shaft extension, metric fasteners). Optimized GearGeometry delivers high-speed performance while controlling noise levels. Advanced Head Design provides low NPSHr, greater pump installation flexibility. (patent applied for) > accepts awide range of seal options. Optional Bolt-On Foot DIN Seal Chamber >

Open the catalog to page 4

Viking Pump - Form770_rev B - Motor Speed Brochure-6

CANADA Viking Pump of Canada, Inc. Windsor, Ontario Phone: (519) 256-5438 Fax: (519) 256-5070LA TIN AMERICA Viking Pump (Latin America)D.F. Mexico C.F. Phone: +52 (5) 5255-1357 Fax: +52 (5) 5255-1356EUROPE Viking Pump (Europe) Ltd.Shannon, Ireland Phone: +353 (61) 471933 Fax: +353 (61) 475046 Web site: www.vikingpumpeurope.co,ukASIA-P ACIFIC GROUP SingaporePhone: +65-6314-6131 Fax: +65-6764-4020China - ShanghaiPhone: +86-21-6390-6367 Fax: +86-21-6386-3338China - BeijingPhone: +86-10-6522-7567/27 Fax: +86-10-6522-7563India (Mumbai)Phone: +91-22-56780047/48 Fax: +91-22-56780055Australia (Victoria)Phone:...
