Viking Pump - Form500_rev H - Product Selection Guide

Viking Pump - Form500_rev H - Product Selection Guide

Product catalog summary

Introduction
Viking Pump is renowned for its innovative 'gear-within-a-gear' design, offering customized positive displacement pumping solutions since 1911. The company excels in engineering capabilities and provides a wide range of fluid-handling solutions.

Global Reach and Standards
Viking pumps are distributed in over 200 countries through 245 authorized distributors. The company is ISO9001-2008 certified and utilizes vertically integrated manufacturing with captive foundries.

Product Capabilities
Viking pumps are versatile, handling liquids from thin to semi-solid, cryogenic to molten, and inert to corrosive. They cater to various viscosities, temperatures, and pressures.

Industries Served
Viking serves industries such as chemicals, food processing, machinery, petroleum, coal, and transportation, with applications in soaps, cleaning compounds, and agricultural chemicals.

Product Features
Viking offers heavy-duty gear pumps with options to reduce life cycle costs and extend pump life. Sealing options include packing, mechanical seals, and sealless mag drives, with materials like stainless steel and alloy C for corrosion resistance.

Performance and Options
Pumps offer various capacities, pressures, and viscosities, available in different materials and configurations. Accessories include gear reducers, power load monitors, and basket strainers.

Universal Seal Series
This series provides industrial-duty pumps with design flexibility and easy maintenance, accommodating various sealing types and materials for high temperatures, abrasives, and corrosives.

Sealless and Jacketed Pumps
The Universal Mag Drive series offers sealless pumps for critical liquid containment, while the Jacketed Universal Series provides temperature-controlled solutions for applications like asphalt and resins.

Heavy Duty Alloy Pumps
These pumps feature alloy wetted parts for corrosion resistance and integral pressure relief valves.

Specifications
Pumps are available in materials such as Cast Iron, Steel, Stainless Steel, and Ductile Iron, with sealing options like mechanical seals and sealless magnetic drives. They handle a wide range of capacities, pressures, viscosities, and temperatures.

Performance Metrics
Tables detail nominal capacity, maximum speed, and pressure for each pump series, with capacities up to 360 M³/Hr and pressures up to 17 BAR, and temperature capabilities up to +370°C.

Customer Benefits
Benefits include reduced total cost of ownership, application flexibility, and enhanced durability with features like tungsten carbide components. Pumps are designed for easy maintenance.

Applications
Pumps handle hazardous, abrasive, and high-vapor pressure liquids, suitable for asphalt, ammonia, and LP gas applications, with jacketed designs for temperature control.

Mounting and Drives
Various mounting options are available, including foot and motor mount configurations, compatible with IEC and NEMA motors.

External Gear Pumps
Ideal for high-pressure applications, available in configurations like mag drive for volatile materials, with capacities up to 120 M³/Hr and pressures up to 170 BAR.

Composite External Gear Pumps
The CMD and VI-CORR series offer sealless, non-metallic construction for hazardous liquids, with capacities up to 125 LPM and pressures up to 14 BAR.

Vane Pumps
Designed for thin liquids at higher pressures, with capacities up to 36 M³/Hr and pressures up to 14 BAR, suitable for harsh chemicals and liquefied gases.

Industrial Lobe Pumps
The RL series handles a broad range of viscosities and higher pressures, with capacities up to 186 M³/Hr and pressures up to 27 BAR.

Lid-Ease Strainers
Protect pumps by preventing solids from entering the system, with capacities up to 250 M³/Hr and pressures up to 14 BAR.

Gear Reducers
Offset and in-line gear reducers match pump requirements, designed for high efficiency and low noise levels.

Custom Solutions
Viking provides custom-designed pumps and systems, supported by advanced testing and global manufacturing capabilities.

Duplex Fuel Oil Sets
Factory-engineered and built-to-order, these sets include heavy-duty gear pumps, designed for easy installation and maintenance.

Applications
Used in oil transfer applications like fueling diesel generators, transferring fuel oil, and oil filtration recirculation.

Options
Systems offer options like pressure switches, control valves, flow switches, and more, with in-line or side-by-side mounting.

Performance
Specifications include suction and discharge header sizes, nominal pump ratings, and maximum recommended discharge pressures.

Customer Benefits
Factory-assembled systems minimize final alignment at installation, providing single-source responsibility and custom-engineered bases.

Drive Options
Various drive styles are available, including offset gear reducers, variable speed drives, and motor-mounted options.

Company Overview
Viking Pump, part of IDEX Corporation, offers a broad performance range, sealing solutions, and material options, with local support through over 245 distributors in 68 countries.

Quality and Custom Solutions
Employing ISO9001-2008, Six-Sigma, and Lean/Kaizen, Viking ensures quality and offers custom-designed solutions, with significant sales from new or derived pump designs.

Catalog excerpts

Viking Pump - Form500_rev H - Product Selection Guide-1

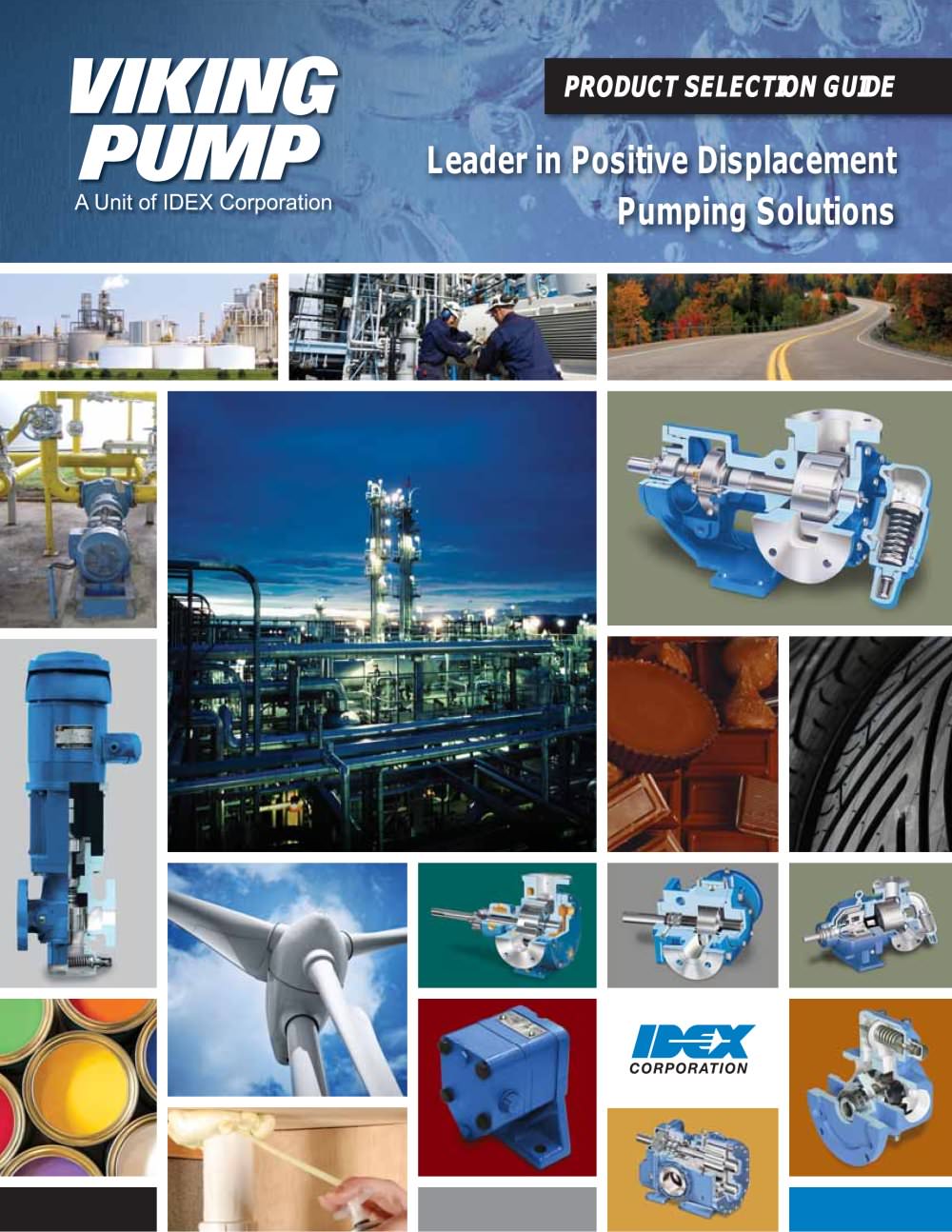

PRODUCT SELECTION GUIDE Leader in Positive Displacement Pumping Solutions

Open the catalog to page 1

Viking Pump - Form500_rev H - Product Selection Guide-2

Most pump companies talk about being innovative, but Viking has been the industry innovator since its initial introduction of the ‘gear-within-a-gear’ design back in 1911. Here are a few examples of proven industry leading engineering capabilities: Product customization to handle virtually any liquid Extensive engineering lab capabilities Broad range of solutions for most fluid-handling problems Strong knowledge of industrial pump applications Custom pump solutions for unique applications Behind Every Good Product is a Good Pump Setting World Class Standards And Engineering Expertise Viking®...

Open the catalog to page 2

Viking Pump - Form500_rev H - Product Selection Guide-3

Viking® Product Selection Guide 3 Soaps & Cleaning Compounds Polyurethane Foam Products Agricultural Chemicals Paint & Applied Products Printing Inks Plastics / Resins / Rubbers Personal Care Products Ethyl Alcohol Manufacturing Explosives Basic Inorganic Chemicals Synthetic Dyes & Pigments Basic Organic Chemicals Plastic & Rubber Products Drugs / Pharmaceutical Petrochemicals Plastics / Resins / Rubbers Paint & Applied Products Printing Inks Agricultural Chemicals Polyurethane Foam Products Soaps & Cleaning Compounds Chocolate & Confectionary Dairy Products Beverages Edible Oils Sugar Animal...

Open the catalog to page 3

Viking Pump - Form500_rev H - Product Selection Guide-4

4 Viking® Product Selection Guide Engines & Turbines Commercial Cooking Machinery Semiconductor Machinery Farm Machinery Packaging Machinery Printing Machinery Medical Equipment Pumps & Compressors Construction / Mining / Material Handling Equipment Machine Tools MACHINERY Markets and Applications Served in the Machinery Industry Pumps & Compressors Engines & Turbines Construction / Mining / Material Handling Equipment Printing Machinery Commercial Cooking Machinery Machine Tools Oil & Gas Extraction Petroleum Refi ning Refi ned Fuel, LPG & CNG Distribution Lubricating Oil & Grease Manufacturing...

Open the catalog to page 4

Viking Pump - Form500_rev H - Product Selection Guide-5

Viking® Product Selection Guide 5 Markets and Applications Served in Other Industries OTHER Utilities Industrial Refrigeration Mining Metals Water Treatment / Conditioning Printing & Publishing Electronics / Electrical Equipment Wastewater Treatment Pulp / Paper / Applied Products Heating Equipment Textiles Pulp / Paper / Heating Equipment Allied Products Textiles Electronics / Electrical Equipment Printing & Publishing Wastewater Treatment Railroads Military Pipelines Automotive Trucks Aircraft Equipment Marine Terminals Trucks Military Automotive Railroads Aircraft Equipment Terminals f TRANSPORTATION...

Open the catalog to page 5

Viking Pump - Form500_rev H - Product Selection Guide-6

6 Viking® Product Selection Guide General purpose gear pumps are wellsuited for low-pressure transfer of lubricating fluids with moderate viscosities. For everything else, Viking’s heavy-duty pumps offer a spectrum of options to match the pump to the application. These options can help reduce life cycle cost by minimizing corrosion and abrasive wear, and by minimizing leakage to reduce downtime, maintenance, and extend pump life. Viking’s heavy-duty gear pumps are versatile and rugged. They can be configured and tuned to the application and the fluid pumped, through use of specific materials...

Open the catalog to page 6

Viking Pump - Form500_rev H - Product Selection Guide-7

Viking® Product Selection Guide 7 PUMPING PRINCIPLE INTERNAL GEAR EXTERNAL GEAR VANE LOBE CATEGORY Heavy Duty Special Purpose General Purpose Iron Composite SERIES Universal Seal & UMD Alloy Motor Speed Mag Drive Motor Speed Motor Speed (Metric) Abrasive Liquids Thin, Volatile Liquids Asphalt General Purpose Spur Gear Non- Metallic Mag Drive VICORR Rotary Vane Industrial Lobe PERFORMANCE Maximum Capacity, M³/Hr 360 25 114 17 45 36 21 360 102 43 4.5 7.2 36 186 Maximum Capacity, GPM 1,600 110 500 75 200 160 95 1,600 450 190 20 32 160 820 Maximum Capacity, LPM 6,056 6,056 6,056 284 757 606 360 6,056...

Open the catalog to page 7

Viking Pump - Form500_rev H - Product Selection Guide-8

8 Viking® Product Selection Guide Viking’s flagship series of industrialduty internal gear pumps, designed to accommodate virtually all seals. Proven design provides superior flexibility to adapt to the most challenging applications. MATERIALS Cast Iron Ductile Iron Steel Stainless Steel Alloy C, Alloy 20, and others Hard Materials SEALING Packing Component Mechanical Seal Cartridge Mechanical Seal Cartridge Triple Lip Seal Sealless Mag Drive (See Page 9) PORTS Opposite (180°) (Rotatable Casing) Right Angle (90°) (Rotatable Casing) NPT / BSP Flanged (ANSI or DIN) Custom MOUNTING Foot Mount DRIVES...

Open the catalog to page 8

Viking Pump - Form500_rev H - Product Selection Guide-9

Viking® Product Selection Guide 9 The Universal Mag Drive provides a sealless pump that is dimensionally interchangeable with Universal Seal and Heavy Duty bracketed pumps. This allows easy upgrade from packing or mechanical seals to sealless, providing the highest level of liquid containment available today. These pumps offer a variety of jacketing options to easily handle fluids that require either heating or cooling. Jacketed pumps are ideal for applications like asphalt/bitumen, resins and chocolate. Fully jacketed pumps with jacketed casing and flanges available in steel and Stainless Steel...

Open the catalog to page 9

Viking Pump - Form500_rev H - Product Selection Guide-10

10 Viking® Product Selection Guide Viking Pump offers two major alternatives for internal gear pumps in stainless steel or other alloys. 1. The Universal Seal series (page 8) provides the ultimate in corrosion resistance, with stainless head, casing and bracket. 2. Where external corrosion resistance is not as critical, Viking’s 724/4724 series Heavy Duty Alloy pumps offer excellent value by combining stainless wetted components (head and casing) with a cast iron (non-wetted) bracket. MATERIALS 316 Stainless Steel Alloy C, Alloy 20, and others SEALING Packing Component mechanical seal in stuffi...

Open the catalog to page 10

Viking Pump - Form500_rev H - Product Selection Guide-11

PERFORMANCE Size Ports * Nominal Capacity At Maximum Speed Maximum Speed Maximum Pressure Inches (MM) M³/Hr GPM RPM BAR PSI SERIES 855 CAST IRON GS 1.0 (25) 1.1 5 1,800 14.0 200 GG 2.2 10 HJ 1.5 (40) 4.5 20 HL 6.8 30 AS 3.0 (65) 12.5 42 10.3 150 AK 19.0 66 1,500 AL 25.0 88 KE 3.0 (80) 28.0 94 1,200 KKE 38.0 130 SERIES 893, 895, 897 STEEL, CAST IRON, STAINLESS STEEL GG 1.0 ** 2.3 10 1,800 8.5 125 HJ 1.5 ** 4.5 20 HL 6.8 30 AS 3.0 ** 8.0 35 AK 11.0 50 1,200 AL 17.0 75 * ANSI = Inches / DIN = MM ** Cast Iron models have NPT ports, AS & AK models are 2.5” Magnetically driven pumps eliminate the need...

Open the catalog to page 11
