Viking Pump - Form445_Rev B - LVP Series Product Brochure
8Pages

{{requestButtons}}

Catalog excerpts

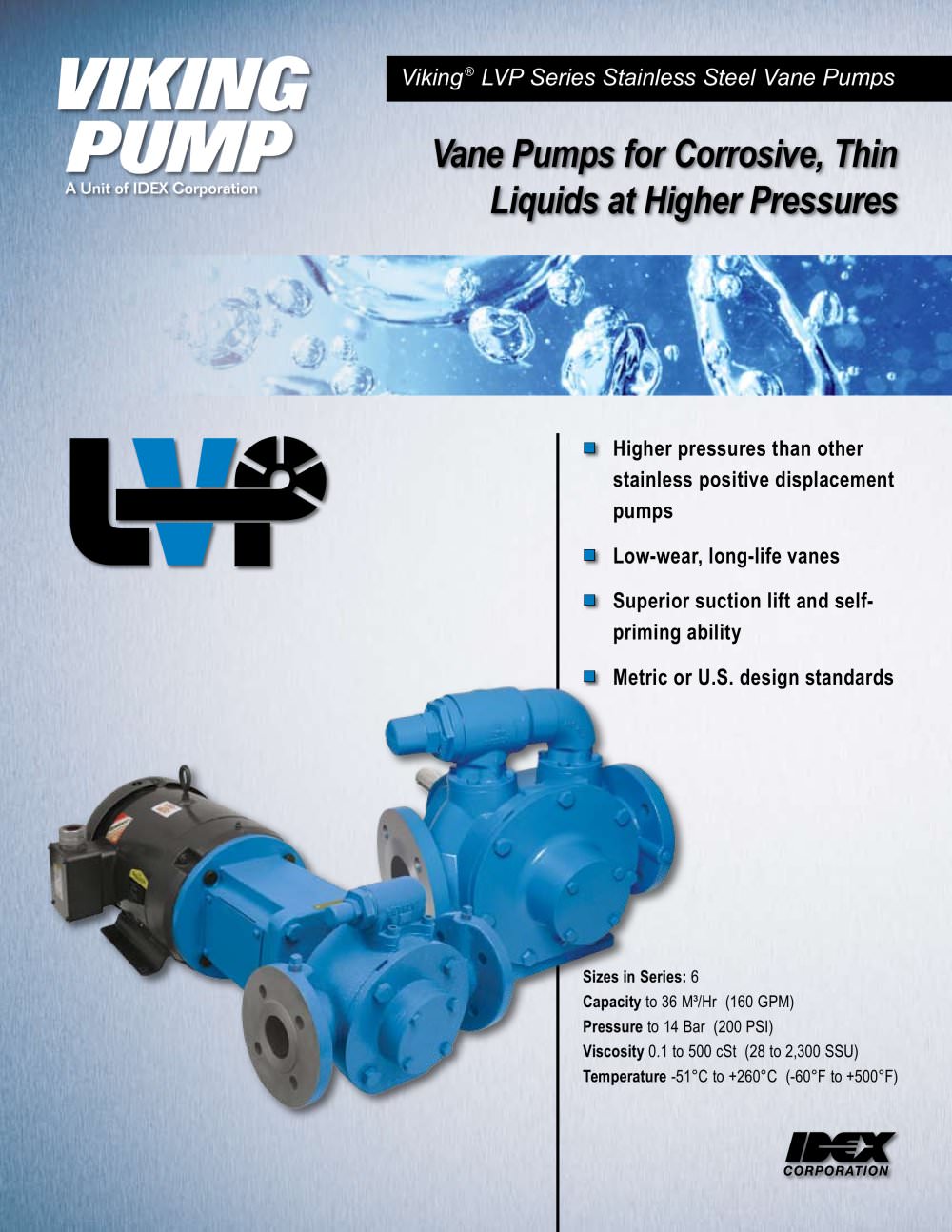

Viking Pump - Form445_Rev B - LVP Series Product Brochure - 1

Higher pressures than other stainless positive displacement pumps Low-wear, long-life vanes Superior suction lift and selfpriming ability Metric or U.S. design standards ¡ ¡ ¡ ¡ Viking® LVP Series Stainless Steel Vane Pumps Sizes in Series: 6 Capacity to 36 M³/Hr (160 GPM) Pressure to 14 Bar (200 PSI) Viscosity 0.1 to 500 cSt (28 to 2,300 SSU) Temperature -51°C to +260°C (-60°F to +500°F) Vane Pumps for Corrosive, Thin Liquids at Higher Pressures

Open the catalog to page 1
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 2

01 1750 RPM 02 05 08 19 23 16 32 50 100 150 200 15.0 12.5 10.0 7.5 5.0 2.5 48 64 80 96 112 128 144 160 Capacity (M3/Hr) Capacity (GPM) Pressure (PSI) Pressure (Bar) 1150 RPM 520 RPM 10 20 30 950 RPM Pump Size „w Performance Envelope Viking® Reliability in a Stainless Steel Vane Pump LVP Series' Benefits Compared to Centrifugal Pumps: • Higher efficiency for low life-cycle cost • Higher pressure: 14 Bar (200 PSI) • Self-priming • Low-shear flow • Short-term dry-run-capability • Capacity proportional to speed • Reversible direction of flow • Easier-to-pipe, straight-through porting LVP...

Open the catalog to page 2
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 3

Corrosive, Thin Liquids Viking's LVP pumps are designed for use with thin liquids that are compatible with stainless steel, but not cast iron. Chemical manufacturers and users that run many different liquids through their pumps, want the maximum practical corrosion protection, standard on the LVP series. Typical Applications: • Acids and Alkalis • Alcohols and Solvents • Aqueous Solutions Flammable Liquids The heavy-duty, one-piece, hardened stainless steel casing of the LVP pump series satisfies both the corrosion and thermal shock protection requirements for flammable liquids and...

Open the catalog to page 3
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 4

Viking® LVP Series Vane Pump Benefits ¡ Hardened Casing 62 Rockwell C surfaced-hardened stainless steel casing. Extends casing and vane life, lowering life-cycle costs. ¡ Hard Shaft Hard chrome oxide coated shaft. Contributes to industry leading pressure capabilities of 14 Bar (200 PSI), and extends pump life, lowering life-cycle costs ¡ Hard Sleeve Bearing Hard silicon carbide sleeve bearing, standard. Extends pressure capability, minimizes wear, and lowers life-cycle costs. EASY INSTALLATION ADVANCED DURABILITY ¡ Metric- or Inch-Standard Opposite Porting DIN or ANSI standard, in-line...

Open the catalog to page 4
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 5

¡ Parts Commonality Better design with fewer parts reduces maintenance, and commonality of many parts between frame sizes reduces parts stocking needs. Provides better parts availability and lower cost of ownership. ¡ Interchangeable Discs Interchangeable discs may be reversed instead of replaced when worn. Doubles useful life of parts, for reduced life-cycle cost. ¡ Tailored Sealing Solutions Tailored sealing solutions are available for virtually every liquid and application, beyond the standard hard silicon carbide mechanical seal. Prevents leaks and minimizes seal maintenance for a...

Open the catalog to page 5
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 6

Pump Model ‡A Port Size 22 cSt (100 SSU) Performance ‡@ Maximum Differential Pressure Maximum Hydrostatic Pressure ‡B Maximum Recommended Temperature Approximate Shipping DIN Weight Flange mm ANSI Flange in. Nominal Capacity at 50 Hz Motor Speed Nominal Capacity at Max. Rated Speed M³/Hr. RPM GPM RPM BAR PSI BAR PSI Deg. C Deg. F kg. lb. LVP40017 LVP41017 40 1.5 4 1450 20 1750 14 200 21 300 135 275 36 80 LVP40027 LVP41027 40 1.5 9 1450 40 1750 14 200 21 300 135 275 36 80 LVP41057 50 2.0 15 950 80 1150 14 200 21 300 135 275 64 140 LVP41087 50 2.0 23 950 100 950 14 200 21 300 135 275 64 140...

Open the catalog to page 6
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 7

Dimensions Viking LVP Series 7 Model A B C D E F G H J K L M N O S T U V W X LVP41017 LVP41027 "M" mm 40 140 48 89 89 51 203 76 11 26 6 13 40 13 256 79 / *41 25 8.0 X 3.5 147 13 "U" in. 1.50 5.50 1.90 3.50 3.50 2.00 8.00 3.00 0.44 1.02 0.25 0.50 1.56 0.50 10.06 3.11 / *1.63 1.00 .25 X .12 5.79 0.50 * T dimension when using a cartridge seal. Ports for “M” model pumps are DIN 2501- compatible PN 16/25/40 raised face flanges. Ports for “U” model pumps are ANSI B 16.5 compatible 150# class raised face flanges. * T dimension when using a cartridge seal Ports for “M” model pumps are DIN 2501-...

Open the catalog to page 7
Viking Pump - Form445_Rev B - LVP Series Product Brochure - 8

A Unit of IDEX Corporation Worldwide Leader Since 1911 for Positive Displacement Pumping Solutions for Industrial, OEM, and Sanitary Applications. VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street, P.O. Box 8 Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local authorized Viking Pump Distributor or contact Viking at: Innovation and Experience Viking Pump has been a pump industry leader and innovator since its founding in 1911. We continue to build...

Open the catalog to page 8
