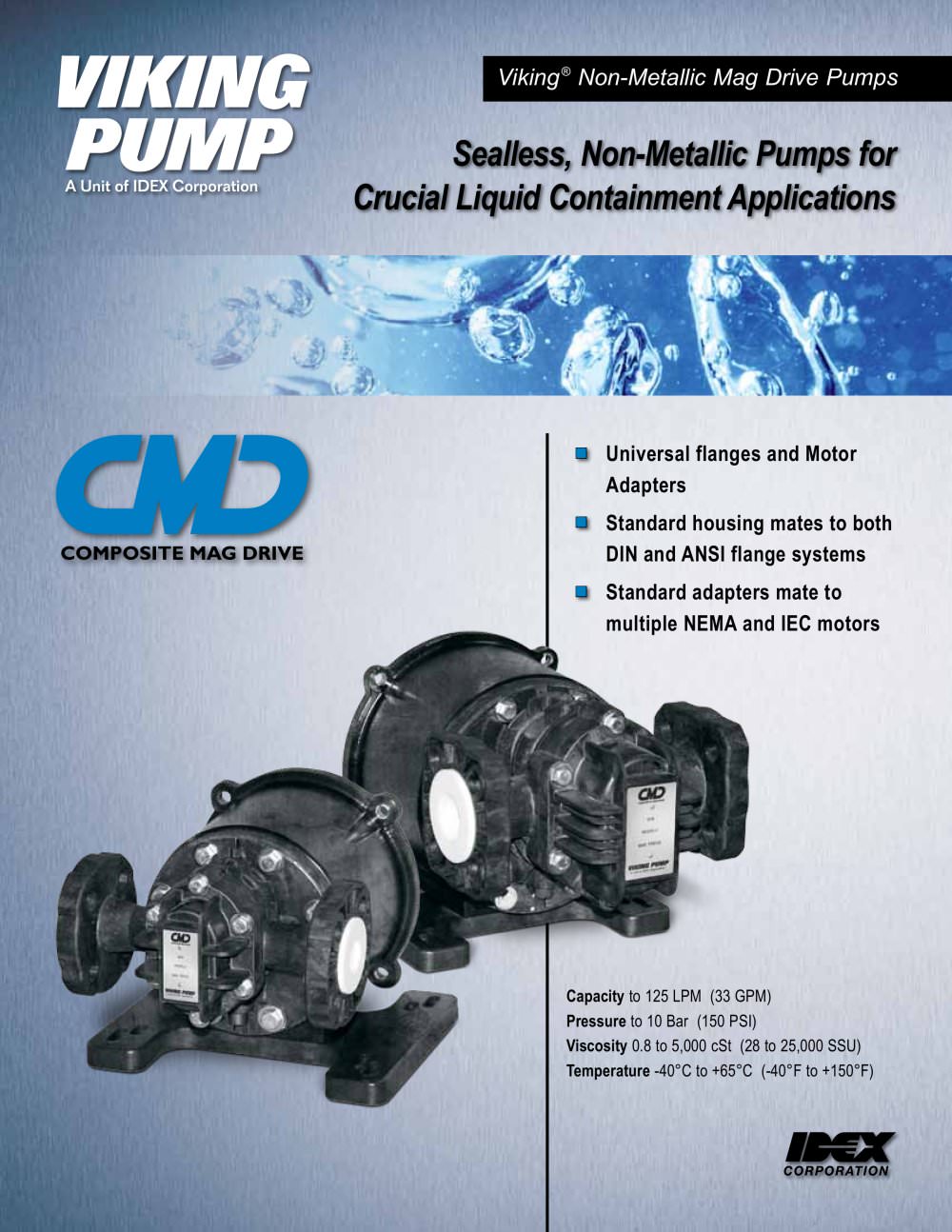

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 1

Sealless, Non-Metallic Pumps for Crucial Liquid Containment Applications Viking® Non-Metallic Mag Drive Pumps Capacity to 125 LPM (33 GPM) Pressure to 10 Bar (150 PSI) Viscosity 0.8 to 5,000 cSt (28 to 25,000 SSU) Temperature -40°C to +65°C (-40°F to +150°F) Universal flanges and Motor Adapters Standard housing mates to both DIN and ANSI flange systems Standard adapters mate to multiple NEMA and IEC motors ¡ ¡ ¡

Open the catalog to page 1

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 2

2 Viking CMD Series CMD Mag Drive Series' outer magnets are turned by a motor, and their magnetic force passes through the hermetically sealed canister causing the rotation of the Mag Drive's inner magnets. The inner magnets turn the drive gear shaft, which turns the driven gear, carrying the liquid from the suction to discharge port. The CMD Series pumps combine a proven design with state-of-the-art engineered composites for a structurally rugged, reliable, simple-to-service pump with a lower cost of ownership. The Viking Advantages Advanced Durability Viking’s CMD series external gear...

Open the catalog to page 2

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 3

Viking CMD Series 3 Viton® is a registered trademark of DuPont Performance Elastomers. Applications Corrosive Chemicals These pumps handle a broad pH range, allowing the same pump to be used for a variety of liquids. They are designed for metering liquids in process control systems as well as for simple tank-to-tank transfer. The fluoropolymer and ceramic wetted materials in these pumps are compatible with many corrosives, yet are more affordable than pumps made of Alloy 20, Alloy C, titanium and other exotic materials required to handle some highly corrosive materials. Typical...

Open the catalog to page 3

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 4

4 Viking CMD Series Viking® CMD Series Gear Pump Benefits ¡ Heavy-Duty Bearings Self-lubricating materials and patent pending geometry allow dry-run capabilities and generates cooling flow through canister. Provides built-in protection against system upset, extending pump life, allowing vertical mounting. ¡ Innovative Magnet System Patent pending spline design allows the magnet to self-align on shaft with no added fasteners. Eliminates axial loading on shaft, extending pump life. EASY INSTALLATION ADVANCED DURABILITY ¡ Unique, Universal Flange Universal flange design uses replaceable PTFE...

Open the catalog to page 4

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 5

Viking CMD Series 5 ¡ 10 Minute Maintenance CMD series' normal wear components can be replaced without detachment of pump from system and no special tools required. Reduces down time and maintenance costs, for lower cost of ownership. ¡ Easy To Assemble Better design with self-aligning parts and piloted fits ensure proper assembly every time. Significantly reduces maintenance costs and parts inventory needs for a lower cost of ownership. ¡ Renewable Performance Regain 100 % performance with the change of a recommended spare parts kit, to keep pump running optimally. Provides cost-effective...

Open the catalog to page 5

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 6

6 Viking CMD Series Pump Model Ports 22 cSt (100 SSU) Performance Maximum Differential Pressure Maximum Hydrostatic Pressure Maximum Recommended Temperature Approximate Shipping Weight Type Size in. Nominal Capacity at 1450 RPM Nominal Capacity at 1750 RPM GPM LPM GPM LPM BAR PSI BAR PSI Deg. C Deg. F kg. lb. E02 NPT ISO 7-1 1/4 0.34 1.3 0.4 1.5 10 150 14 200 65 150 2 4 E05 NPT ISO 7-1 3/8 1.3 4.9 1.5 5.8 10 150 14 200 65 150 5 9 E12 NPT ISO 7-1 3/4 2.6 10.0 3.2 12.1 10 150 14 200 65 150 6 10 E25 ANSI Flg. DIN Flg. 1 5.5 21.0 6.5 24.6 10 150 14 200 65 150 12 26 E75 ANSI Flg. DIN Flg. 1-1/2...

Open the catalog to page 6

Viking Pump - Form344_rev C - Composite Mag Drive Brochure - 8

© Viking Pump, Inc. Copyright 2009 Printed in U.S.A. 11/2009 Form No. 344-C VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local Authorized Viking Pump Distributor or contact Viking at: ASIA-PACIFIC GROUP Singapore Phone: +65-6763-6633 Fax: +65-6764-4020 www.idexfmt-asia.com China - Shanghai Phone: +86-21-5241-5599 Fax: +86-21-5241-8339 www.idexfmt-asia.com China - Beijing Phone: +86-10-6566-9090...
