Overview

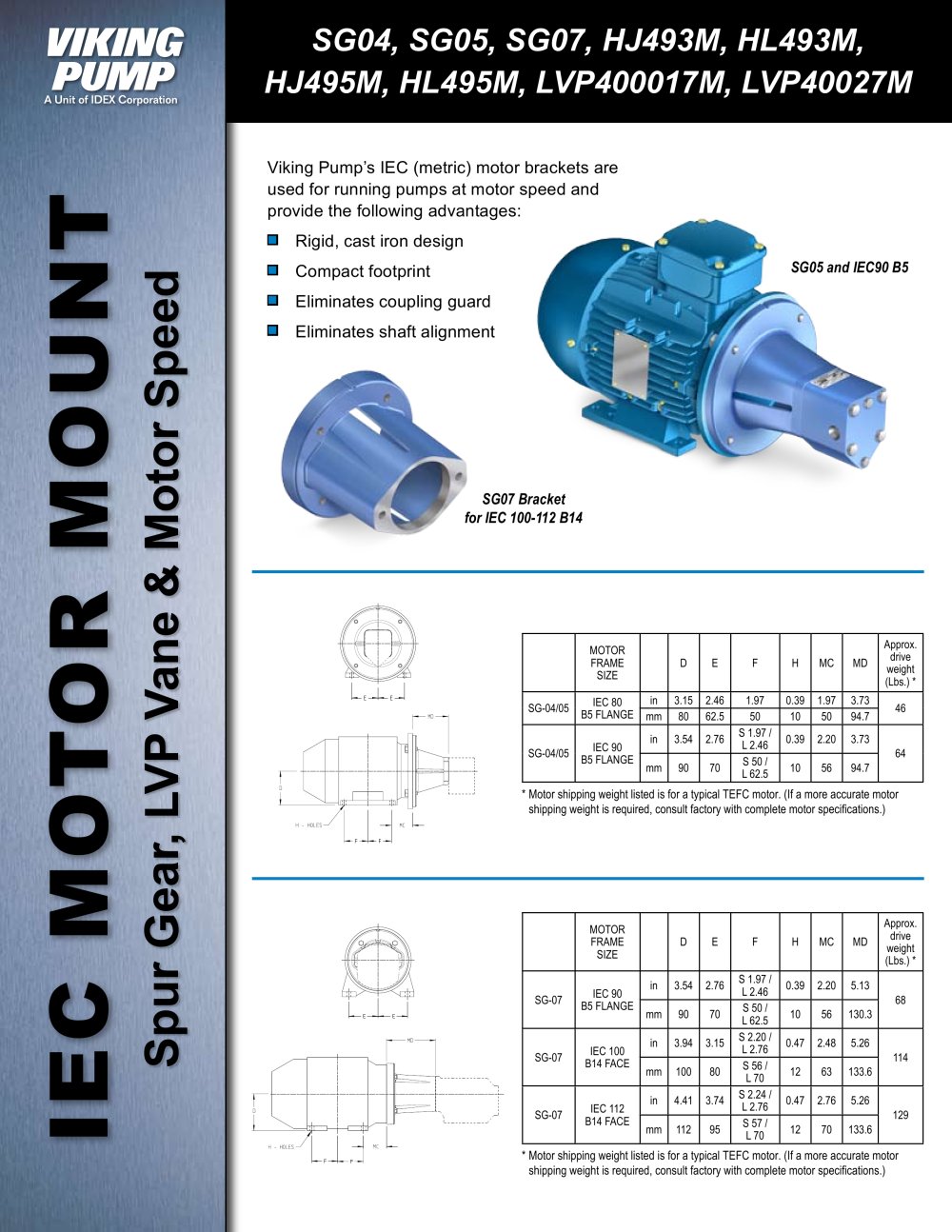

This document provides detailed technical specifications and mounting information for Viking Pump motor mounts and brackets designed for IEC frame motors, specifically models SG04, SG05, SG07, HJ493M, HL493M, HJ495M, HL495M, LVP400017M, and LVP40027M. It includes dimensional data, weight approximations, and installation recommendations for various motor frame sizes and mounting types.

1. Motor Mount and Spur Gear Specifications

The document lists dimensions (D, E, F, H, MC, MD) for motor frames IEC 80, 90, 100, and 112 with B5 flange and B14 face mounting options. Dimensions are provided in both inches and millimeters. Approximate drive weights are given in pounds, based on typical Totally Enclosed Fan Cooled (TEFC) motors. For precise motor shipping weights, consultation with the factory is recommended.

• IEC 80 and 90 B5 flange motors have weights ranging from 46 to 64 lbs.
• IEC 90, 100, and 112 B14 face motors range from 68 to 129 lbs.

2. Motor Brackets for IEC Motors

Viking Pump’s IEC motor brackets are designed for running pumps at motor speed and offer several advantages:

• Rigid cast iron construction
• Compact footprint
• Elimination of coupling guard and shaft alignment requirements

Bracket models HJ493M, HL493M, HJ495M, HL495M, LVP400017M, and LVP40027M are detailed with dimensional data (A, B, C, M, N, P, D, E, F, G, H, J, K, L, O, R, S) in inches and millimeters for IEC motor frames 90, 100/112, and 132 with B14 mounting faces.

Key Notes on Brackets:

• Designed specifically for IEC motors with B14 mounting face.
• Jaw type coupling with straight jaws is recommended to ease assembly of motor and pump to brackets.
• Coupling is protected by a plate covering the opening at the top of the bracket.

3. Installation and Assembly Recommendations

The document emphasizes the use of jaw type couplings with straight jaws to facilitate assembly and ensure proper alignment. The coupling guard plate enhances safety by covering the coupling area.

4. Contact and Support Information

For further technical support or detailed motor specifications, Viking Pump provides contact details for various global regions including the USA, Canada, Europe, Middle East, Latin America, and Asia-Pacific. This ensures localized support and access to authorized distributors.

Summary of Critical Information

• Dimensions and weights are critical for selecting appropriate motor mounts and brackets.
• IEC motor frame sizes covered: 80, 90, 100, 112, and 132.
• Mounting types: B5 flange and B14 face.
• Brackets are cast iron, designed for rigidity and compactness.
• Jaw type coupling recommended for ease of assembly.
• Coupling guard plate included for safety.
• Consult factory for precise motor shipping weights.

This structured information supports proper selection, installation, and maintenance of Viking Pump motor mounts and brackets for IEC motors, ensuring reliable pump operation at motor speed.
