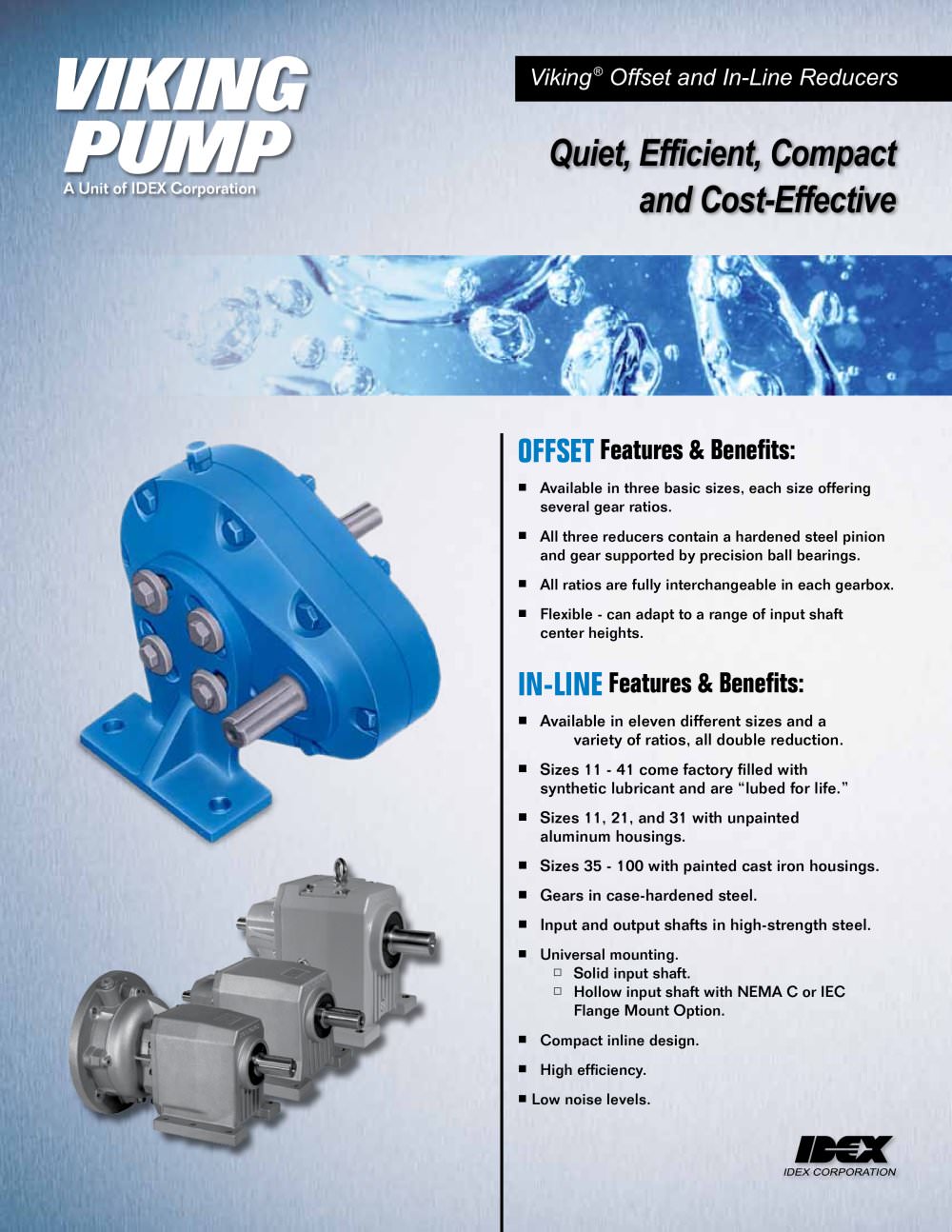

OFFSET Features & Benefits: ¡ Available in three basic sizes, each size offering several gear ratios. ¡ All three reducers contain a hardened steel pinion and gear supported by precision ball bearings. ¡ All ratios are fully interchangeable in each gearbox. ¡ Flexible - can adapt to a range of input shaft center heights. IN-LINE Features & Benefits: ¡ Available in eleven different sizes and a variety of ratios, all double reduction. ¡ Sizes 11 - 41 come factory filled with synthetic lubricant and are “lubed for life.” ¡ Sizes 11, 21, and 31 with unpainted aluminum housings. ¡ Sizes 35 - 100 with painted cast iron housings. ¡ Gears in case-hardened steel. ¡ Input and output shafts in high-strength steel. ¡ Universal mounting. Solid input shaft. Hollow input shaft with NEMA C or IEC Flange Mount Option. ¡ Compact inline design. ¡ High efficiency. ¡ Low noise levels. Viking® Offset and In-Line Reducers Quiet, Efficient, Compact and Cost-Effective

Open the catalog to page 1

2 Service Factor Table Power Source A,C Classification of Driven Load B,C Intermittent Up to 3 Hours Per Day 8 - 10 Hours Per Day 24 Hours Per Day Electric Motor, Steam Turbine, or Hydraulic Motor Uniform 0.8 1.0 1.25 Moderate Shock 1.0 1.25 1.5 Heavy Shock 1.5 1.75 2.0 Multi-Cylinder Internal Combustion Engine Uniform 1.0 1.25 1.5 Moderate Shock 1.25 1.5 1.75 Heavy Shock 1.75 2.0 2.25 A. For applications driven by single cylinder engines, refer to factory for other service factors. B. Rotary Pump applications are classified as Uniform Loads. C. Use of belt or chain type drives to either...

Open the catalog to page 2

© Viking Pump, Inc. Copyright 2005 Printed in U.S.A. 12/2009 Form No. 615-B VIKING PUMP, INC. A Unit of IDEX Corporation 406 State Street Cedar Falls, Iowa 50613-0008 U.S.A. Telephone: (319) 266-1741 Fax: (319) 273-8157 E-mail: info.viking@idexcorp.com Web site: www.vikingpump.com For more information, contact your local Authorized Viking Pump Distributor or contact Viking at: ASIA-PACIFIC GROUP Singapore Phone: +65-6763-6633 Fax: +65-6764-4020 www.idexfmt-asia.com China - Shanghai Phone: +86-21-5241-5599 Fax: +86-21-5241-8339 www.idexfmt-asia.com China - Beijing Phone: +86-10-6566-9090...
