MPC1701 All-in-one PC

Product catalog summary

Overview: The ViewSonic MPC1700 and MPC1701 are 17-inch medical-grade all-in-one PCs designed for use in sterile environments such as medical offices, labs, and hospitals. These devices are equipped with interactive touch screens and are suitable for use on carts, bedside, or in surgical settings.

Specifications:

Processor: MPC1700 features an Intel Core 2 Duo 2.2G CPU, while the MPC1701 has a fanless Intel Core 2 Duo 1.06G CPU.
Memory: Supports up to 4GB DDR2 RAM.
Storage: 80GB 2.5" SATA HDD with anti-vibration mechanism.
Display: 17" resistive touch panel with 400 nits brightness.
Connectivity: Includes Gigabit Ethernet, USB 2.0 ports, and optional wireless LAN.
Expansion: PCI, PCMCIA, and Mini-PCI slots available.

Features:

Medical certification compliance (EN60601 / UL60601-1).
Anti-bacterial coating and IP65/IPX1 compliance for water and dust resistance.
Optional accessories include a web cam, WLAN card, and smart card reader.

Environmental and Mechanical:

Operating temperature range: 32~104º F (0~40º C).
Dimensions: 16.5" x 14.2" x 3.3".
Weight: Net 13.3 lb. (6.0 kg).

Certifications: CE, FCC class B, EN60601-1, UL/cUL, VCCI.

Warranty: 1-year limited warranty on parts, labor, and backlight.

Conclusion: The MPC1700 and MPC1701 are designed to enhance electronic information sharing in medical environments, offering robust performance, medical-grade certifications, and a range of connectivity options.

Catalog excerpts

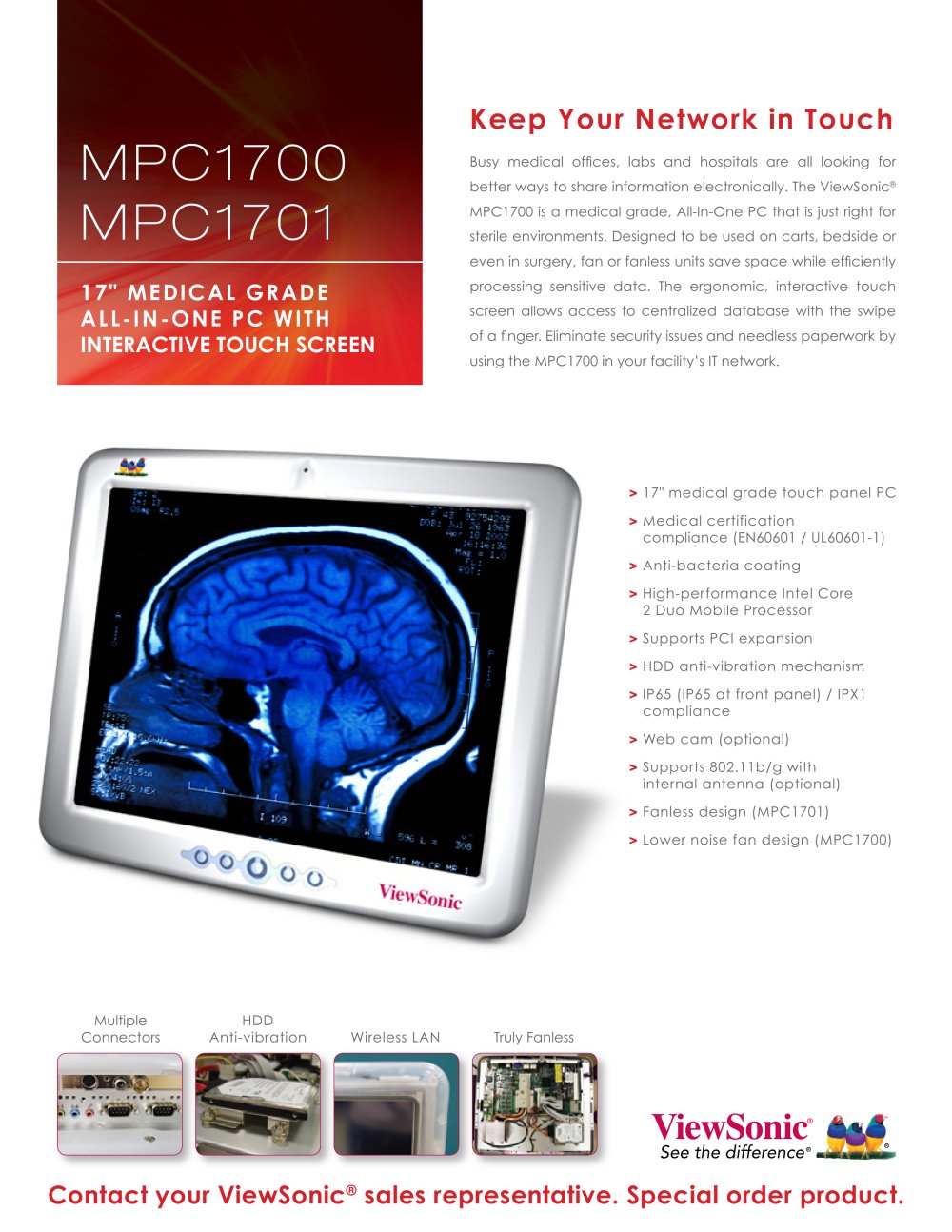

MPC1700 MPC1701 17" MEDICAL GRADE ALL-IN-ONE PC WITH INTERACTIVE TOUCH SCREEN Busy medical offices, labs and hospitals are all looking for better ways to share information electronically. The ViewSonic® MPC1700 is a medical grade, All-In-One PC that is just right for sterile environments. Designed to be used on carts, bedside or even in surgery, fan or fanless units save space while efficiently processing sensitive data. The ergonomic, interactive touch screen allows access to centralized database with the swipe of a finger. Eliminate security issues and needless paperwork by using the MPC1700 in your facility’s IT network. Keep Your Network in Touch 17" medical grade touch panel PC Medical certification compliance (EN60601 / UL60601-1) Anti-bacteria coating High-performance Intel Core 2 Duo Mobile Processor Supports PCI expansion HDD anti-vibration mechanism IP65 (IP65 at front panel) / IPX1 compliance Web cam (optional) Supports 802.11b/g with internal antenna (optional) Fanless design (MPC1701) Lower noise fan design (MPC1700) > > > > > > > > > > > Contact your ViewSonic® sales representative. Special order product. HDD Anti-vibration Wireless LAN Truly Fanless Multiple Connectors

Open the catalog to page 1

MPC1700/MPC1701 SYSTEM CPU MPC1700 – Intel® Core™ 2 Duo 2.2G CPU MPC1701 – Intel® Core™ 2 Duo 1.06G CPU (fanless) FSB 800MHz Chipset Intel® GME965 chipset + ICH8M BIOS Award BIOS, ACPI supported VGA Intel® GME965 integrated VGA (X3100) DVI One DVI 29-pin output Audio Realtek ALC286 Audio Codec, 2+2 watts power amplifier LAN Realtek RTL8111B Gigabit Ethernet x 2 Memory Two Dual Channel DDR2 SODIMM socket supports up to 4GB (Default: 512MB) I/O ICH8M Serial ATA Port x 1 with 150 MB/s transfer rate x 1 USB USB 2.0 port x 8 (4 ports in the rear I/O region, 2 ports with on-board pin headers, and 2...
