CD4220 High impact digital signage

CD4220 High impact digital signage

CD4220 High impact digital signage

Product catalog summary
Overview: The ViewSonic CD4220 is a 42-inch commercial LCD display designed for high-impact digital signage. It features a slim bezel design, high brightness, and wide viewing angles, making it suitable for public information displays.
Specifications:
  • Display: 42" color TFT active matrix, 1366x768 resolution, 1500:1 contrast ratio, 500 cd/m2 brightness, 8ms response time.
  • Viewing Angles: 178º horizontal and vertical.
  • Inputs/Outputs: HDMI, S-video, component, composite, RCA, VGA, BNC, RS-232 for daisy chaining.
  • Audio: Optional 2x10-watt speakers with SRS TruSurround.
  • Power: AC 100–240V, 50–60Hz, 246W consumption.
  • Dimensions: 40.2" x 24.1" x 5.0" without stand; VESA mount 400mm x 200mm.
  • Weight: 65.9 lb. without stand.
Features:
  • Video Wall Capability: Supports 5x5 video wall configuration.
  • Control: RS-232 daisy chain, remote and front panel lockout, internal scheduling.
  • Connectivity: Plug-and-play for HD devices, universal remote control.
  • Optional Accessories: VESA wall-mount, stand, detachable speakers.
Environmental Conditions:
  • Operating Temperature: 41–104ºF (landscape), 41–95ºF (portrait).
  • Humidity: 20–80% non-condensing.
Regulations and Warranty:
  • Complies with UL/cUL, FCC, NOM, UCIEE, S-Mark, ICES 003.
  • Three-year limited warranty on parts, labor, and backlight.
Additional Information: The display can be enhanced with the NMP-530 Network Media Player and DisplayIt! software for a complete digital signage solution. The product includes a power cable, video cable, remote control, Quick Start Guide, and ViewSonic Wizard CD.
See more

Catalog excerpts

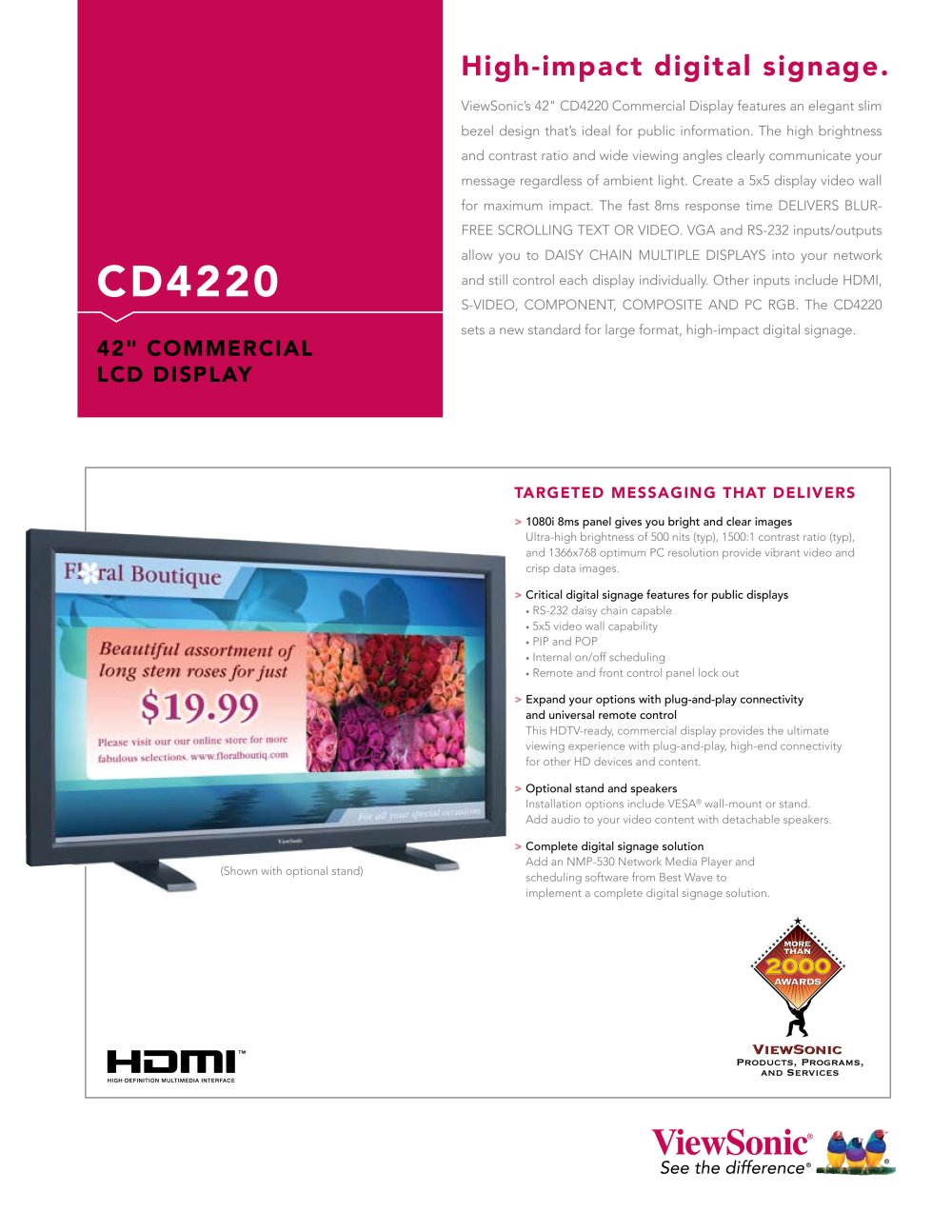

CD4220 High impact digital signage-1

CD4220 42" COMMERCIAL LCD DISPLAY ViewSonic’s 42" CD4220 Commercial Display features an elegant slim bezel design that’s ideal for public information. The high brightness and contrast ratio and wide viewing angles clearly communicate your message regardless of ambient light. Create a 5x5 display video wall for maximum impact. The fast 8ms response time DELIVERS BLURFREE SCROLLING TEXT OR VIDEO. VGA and RS-232 inputs/outputs allow you to DAISY CHAIN MULTIPLE DISPLAYS into your network and still control each display individually. Other inputs include HDMI, S-VIDEO, COMPONENT, COMPOSITE AND PC RGB. The CD4220 sets a new standard for large format, high-impact digital signage. High-impact digital signage. Targeted mesaging that delivers >>1080i 8ms panel gives you bright and clear images Ultra-high brightness of 500 nits (typ), 1500:1 contrast ratio (typ), and 1366x768 optimum PC resolution provide vibrant video and crisp data images. >>Critical digital signage features for public displays • RS-232 daisy chain capable • 5x5 video wall capability • PIP and POP • Internal on/off scheduling • Remote and front control panel lock out >>Expand your options with plug-and-play connectivity and universal remote control This HDTV-ready, commercial display provides the ultimate viewing experience with plug-and-play, high-end connectivity for other HD devices and content. >>Optional stand and speakers Installation options include VESA® wall-mount or stand. Add audio to your video content with detachable speakers. >>Complete digital signage solution Add an NMP-530 Network Media Player and scheduling software from Best Wave to implement a complete digital signage solution. (Shown with optional stand)

 Open the catalog to page 1
CD4220 High impact digital signage-2

CD4220 4 2 " C O M M E R C I A L L C D D I S P L AY LCD Type 42" color TFT active matrix, wide LCD Display Area 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Resolution 1366x768 Contrast Ratio 1500:1 (typ) Viewing Angles 178º horizontal, 178º vertical Response Time 8ms Light Source Long life, 50,000 hrs. (typ) Brightness 500 cd/m2 (typ) Aspect Ratio 16:9 Panel Surface Anti-glare, hard coating (3H) INPUT Video Input HDMI, S-video, component, composite, RCA Video Output VGA, BNC, RCA (x2) Control Input/Output RS-232 AUDIO OUTPUT Speakers 2x10-watt with SRS TruSurround (optional) INPUT...

 Open the catalog to page 2
