Videojet 320Si Datasheet

Videojet 320Si Datasheet

Product catalog summary

Overview
The Videojet 320si is a versatile large character printer designed for industrial environments, capable of printing on both porous and non-porous materials. It offers reliable performance with print heights ranging from ¼ to 1 inch.

Key Features

Throw Distance: The printer's advanced valves allow for a throw distance of up to 1.2 inches, accommodating irregular substrates and physical constraints.
Slant Technology: Supports printing characters using 7, 9, 12, and 16 drop fonts, with the ability to print two lines of 7 drop high characters.
Modular Software: Offers flexibility with pre-programmed languages, multiple security levels, and an easy-to-use graphical interface.

Applications

Suitable for printing on corrugated cases, plastic/paper sacks, metal drums, food grain packages, steel products, and woven materials.

Advanced Print Head Technology

Features microvalve and slant head technologies for high resolution (up to 40dpi) and precision drop placement.
Compatible with water-based and solvent-based inks, rated at IP54 for environmental resilience.

Specifications

System Components: Includes a stainless steel enclosure, touch-screen interface, and support for multiple printheads.
Printhead: Offers up to 40dpi resolution, with a maximum line speed of 200 feet per minute.
Software: Supports large character text, twin-line printing, and various font sizes.
Electrical Requirements: Operates on 110-230 VAC with a frequency of 50-60 Hz.
Environmental Limits: Operates in temperatures from 41°F to 113°F with 0 to 90% non-condensing humidity.

Customer Care
Videojet provides comprehensive after-sales service, including environmentally friendly fluids and inks with reduced VOCs.

For more information, contact Videojet at +44 (0)870 240 5542 or visit their website at www.videojet.co.uk.

Catalog excerpts

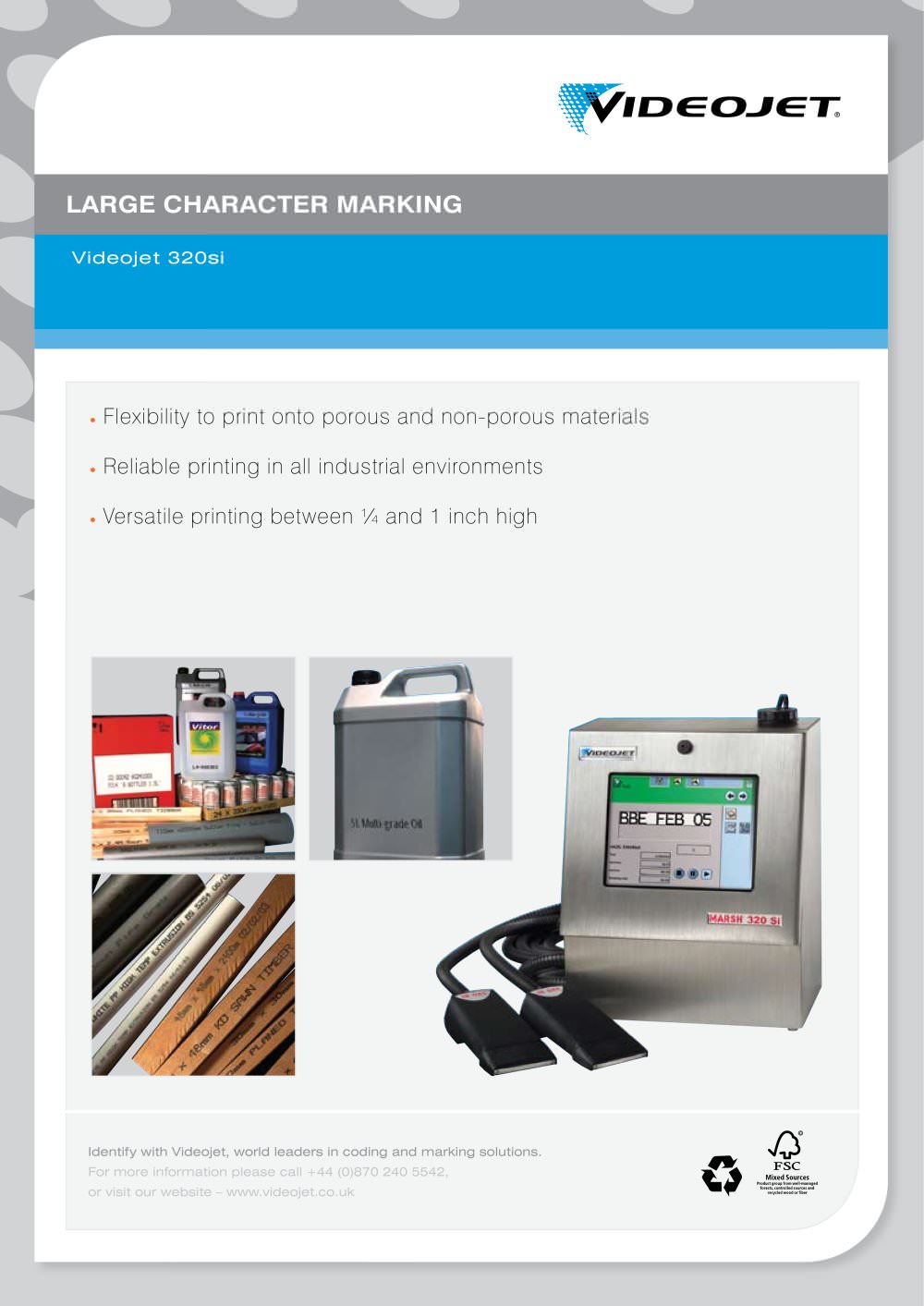

Identify with Videojet, world leaders in coding and marking solutions.For more information please call +44 (0)870 240 5542, or visit our website ܖ www.videojet.co.uk >

Open the catalog to page 1

Modular Scalable Software > Advanced Print Head Technology >

Open the catalog to page 2

Print Specifications System Components > Distance to print surface - no greater than 1.2 (30 mm) > Printer IP-54 stainless steel industrial enclosure 19 cm (7.5) or 26.4 cm (10.4Ԕ) touch-screen interface Supports 2 printheads per printer; optional dual tasking Ethernet networking connection > Mounting - conveyor Messages > Print stations (optional) Alphanumeric lines IP-54 stainless steel industrial enclosure Standard drive capability for 2 > One or two lines per printhead printheads Optional drive capability to support 2 additional printheads Photocell and shaft encoder connections 2 litre capacity...

Open the catalog to page 3
