Vibrostop TSZX1G

Product catalog summary

Features

Variable loads ranging from 2000 to 20000 daN.
High resistance to shocks, allowing for significant instant overloads.
High safety level: destruction of elastomers does not lead to equipment detachment.
Protection of elastomer with aluminum or steel plates.

Materials

Rubber components made from Vibrostop elastomer.
Metal components for TSZ 4000 made from aluminum alloy.
Metal components for TSZ 7000 and TSZ 10000 made from painted S275JR steel.

Applications

Suitable for presses, power hammers, and crushers.

Installation

Fixing between machinery and anti-vibration mounting.
Fixing to the mounting plate.

Technical Specifications

TSZ 4000/AS and TSZ 4000/N support loads from 2000 to 7000 daN with dimensions A: 330 mm, B: 150 mm, C: 230 mm, D: 280 mm, E: 232 mm.
TSZ 7000/AS and TSZ 7000/N support loads from 4000 to 10000 daN with dimensions A: 391 mm, B: 175 mm, C: 447 mm, D: 350 mm, E: 250 mm.
TSZ 10000/AS and TSZ 10000/N support loads from 7000 to 20000 daN with dimensions A: 430 mm, B: 260 mm, C: 435 mm, D: 380 mm, E: 335 mm.

Load Diagrams

Includes diagrams for floating plinth arrangement and TSZ arrangement.
Performance characteristics are provided for reference only.

Catalog excerpts

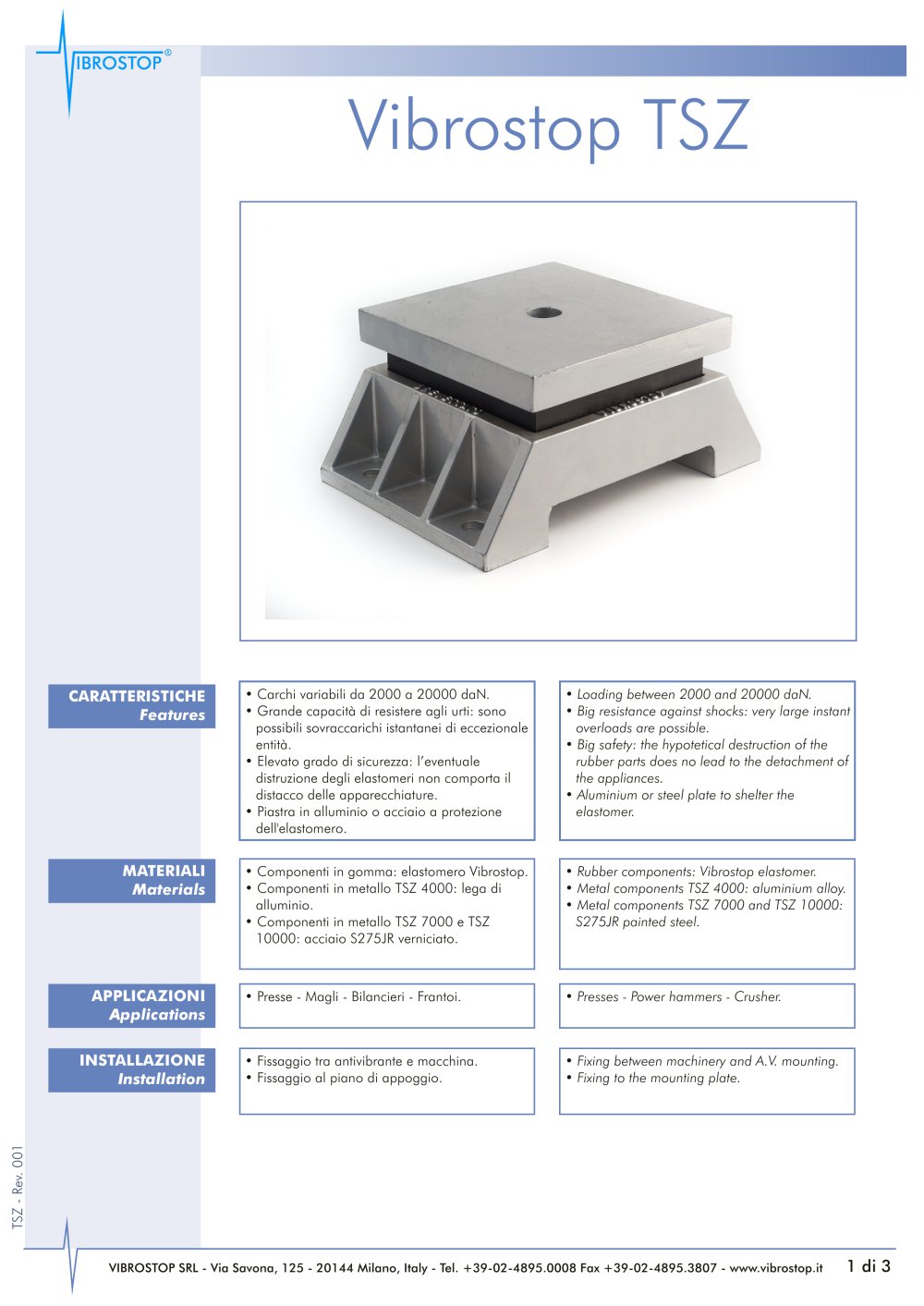

CARATTERISTICHE Features • Carchi variabili da 2000 a 20000 daN. • Grande capacità di resistere agli urti: sono possibili sovraccarichi istantanei di eccezionale entità. • Elevato grado di sicurezza: l’eventuale distruzione degli elastomeri non comporta il distacco delle apparecchiature. • Piastra in alluminio o acciaio a protezione dell'elastomero. • Loading between 2000 and 20000 daN. • Big resistance against shocks: very large instant overloads are possible. • Big safety: the hypotetical destruction of the rubber parts does no lead to the detachment of the appliances. • Aluminium or steel plate to shelter the elastomer. MATERIALI Materials • Componenti in gomma: elastomero Vibrostop. • Componenti in metallo TSZ 4000: lega di alluminio. • Componenti in metallo TSZ 7000 e TSZ 10000: acciaio S275JR verniciato. • Rubber components: Vibrostop elastomer. • Metal components TSZ 4000: aluminium alloy. • Metal components TSZ 7000 and TSZ 10000: S275JR painted steel. • Presse - Magli - Bilancieri - Frantoi. • Presses - Power hammers - Crusher. • Fissaggio tra antivibrante e macchina. • Fissaggio al piano di appoggio. • Fixing between machinery and A.V. mounting. • Fixing to the mounting plate. APPLICAZIONI Applications INSTALLAZIONE Installation VIBROSTOP SRL - Via Savona, 125 - 20144 Milano, Italy - Tel. +39-02-4895.0008 Fax +39-02-4895.3807 - www.vibrostop.it

Open the catalog to page 1

MESCOLA NORMALE NORMAL [55° Sh] MESCOLA ALTA SESIBILITA' HIGH SENSITIVITY [43° Sh] TIPO Type TIPO Type Dimensioni indicative Dimensions for reference only VIBROSTOP SRL - Via Savona, 125 - 20144 Milano, Italy - Tel. +39-02-4895.0008 Fax +39-02-4895.3807 - www.vibrostop.it

Open the catalog to page 2

Load diagrams Curve caratteristiche indicative Performance characteristics for reference only Sistemazione su plinto flottante Floating plinth arrangement VIBROSTOP SRL - Via Savona, 125 - 20144 Milano, Italy - Tel. +39-02-4895.0008 Fax +39-02-4895.3807 - www.vibrostop.it 3 di 3

Open the catalog to page 3
