Technical Specifications Summary

Overview

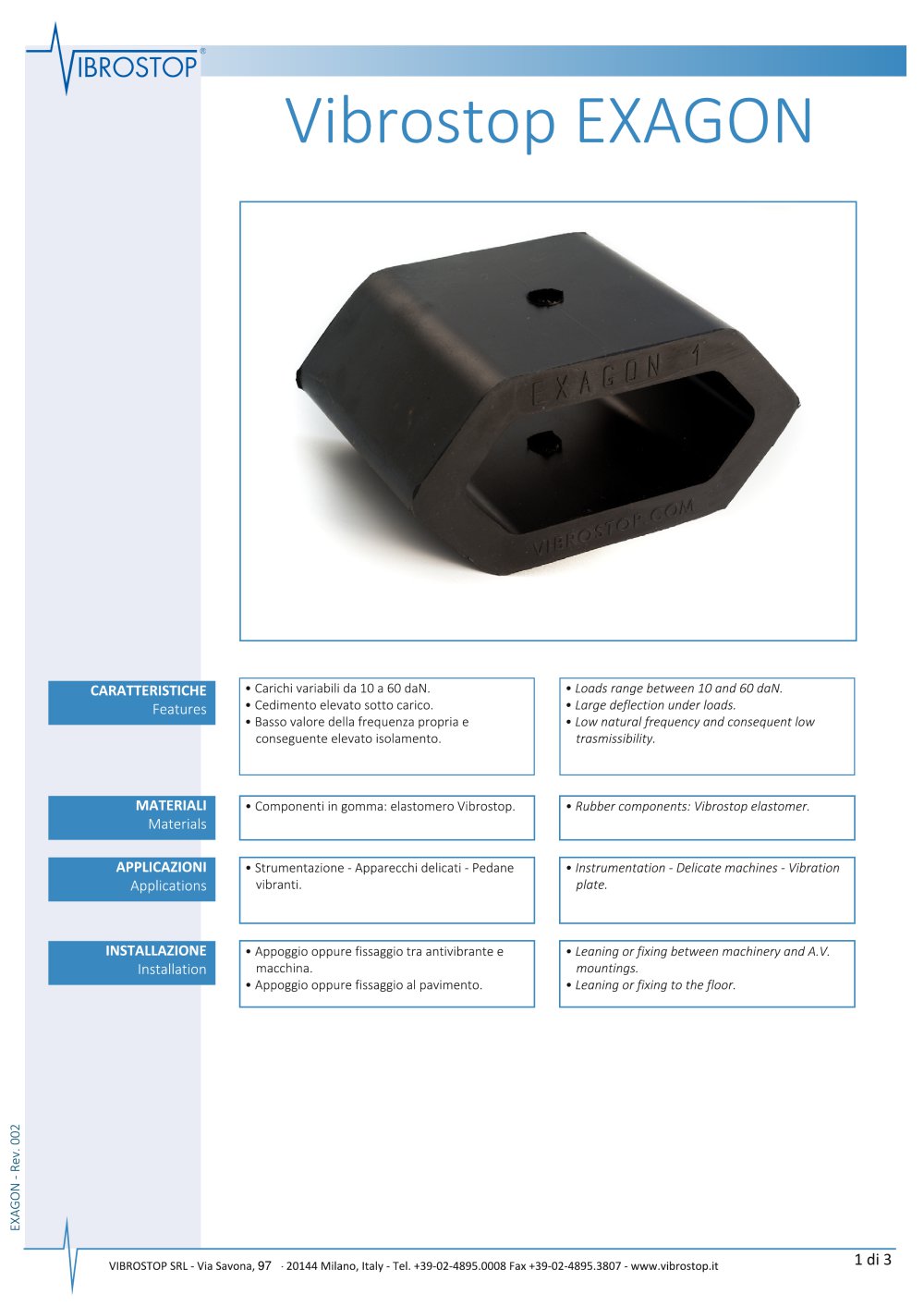

The document provides technical data related to hexagonal components, specifying types, load capacities, dimensions, and material hardness.

Sections and Key Information

Types and Load Capacities

• EXAGON 1/60: Load range 0-20 daN
• EXAGON 1/70: Load range 20-30 daN
• EXAGON 2/60: Load range 20-30 daN
• EXAGON 2/70: Load range 30-40 daN
• EXAGON 1+2/60: Load range 30-40 daN
• EXAGON 1+2/70: Load range 40-60 daN

Material Hardness (MESCOLA)

• High Resistance (ALTA RESISTENZA): Hardness 70° Shore
• Normal (NORMALE): Hardness 60° Shore

Dimensions

The document lists dimensions labeled as A, B, C, and diameter ØD, measured in millimeters (mm). Specific values are not fully detailed but are implied to correspond to the types and load capacities.

Critical Parameters and Recommendations

• Selection of type depends on required load capacity (daN).
• Material hardness affects performance, with options for normal and high resistance.
• Dimensions must be matched to the type and load for proper application.

Summary

This technical data sheet outlines the relationship between hexagonal component types, their load capacities, material hardness, and dimensions. It serves as a guideline for selecting appropriate components based on mechanical requirements and material properties.
