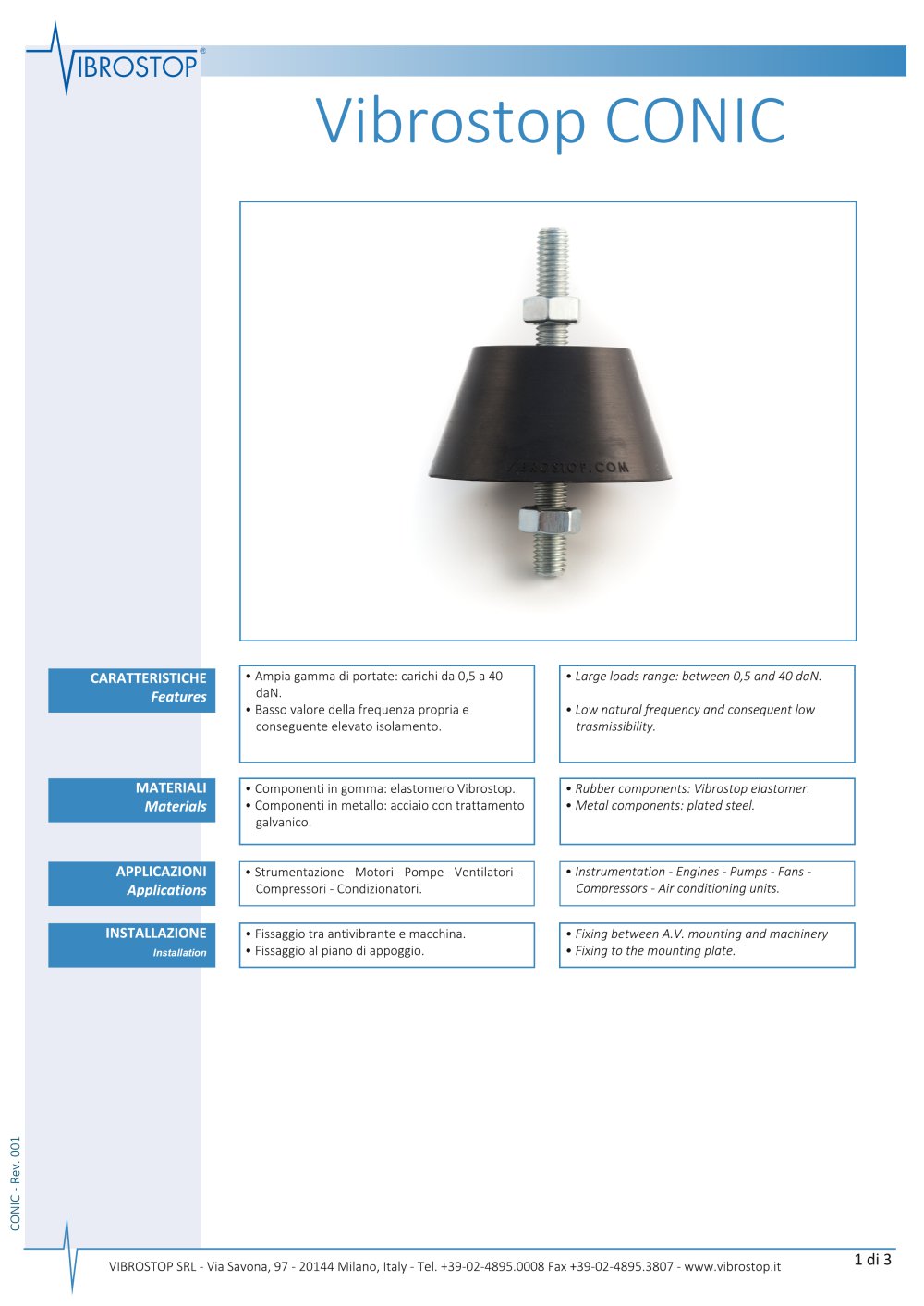

Installation Specifications

This document provides detailed installation parameters for various CONIC types, specifying load capacities, dimensions, and material hardness.

Types and Load Ranges

• CONIC 2/AS and CONIC 2/N: Load range from 1 to 6 daN (decanewtons), with dimensions and M4 threading.
• CONIC 3/AS and CONIC 3/N: Load range from 2 to 10 daN, dimensions specified with M5 threading.
• CONIC 4/AS and CONIC 4/N: Load range from 5 to 15 daN, dimensions with M5 threading.
• CONIC 5/AS and CONIC 5/N: Load range from 10 to 20 daN, dimensions with M8 threading.
• CONIC 6/AS and CONIC 6/N: Load range from 15 to 30 daN, dimensions with M8 threading.
• CONIC 7/AS and CONIC 7/N: Load range from 20 to 40 daN, dimensions with M10 threading.

Material Hardness and Sensitivity

• Normal Compound (NORMALE): Hardness of 60° Shore (Sh), indicated as AS.
• High Sensitivity Compound (ALTA SENSIBILITA'): Hardness of 45° Shore (Sh), indicated as AS.

Dimensions

The document lists key dimensions for each CONIC type, including:

• ØA (Diameter A in mm)
• ØB (Diameter B in mm)
• C (Length C in mm)
• D1 and D2 (Diameters D1 and D2 in mm)
• E (Length E in mm)

These dimensions vary according to the CONIC type and load capacity.

Threading

Each CONIC type is associated with a specific metric thread size (M4, M5, M8, M10) corresponding to its load capacity and dimensions.

Summary

This technical data provides essential installation parameters for CONIC components, ensuring correct selection based on load requirements, material hardness, and precise dimensions. Proper adherence to these specifications is critical for optimal performance and safety.
