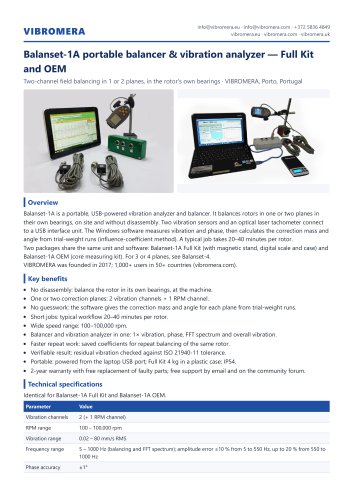

[email protected] • [email protected] • +372 5836 4849 vibromera.eu • vibromera.com • vibromera.uk Two-channel field balancing in 1 or 2 planes, in the rotor's own bearings • VIBROMERA, Porto, Portugal | Overview Balanset-1A is a portable, USB-powered vibration analyzer and balancer. It balances rotors in one or two planes in their own bearings, on site and without disassembly. Two vibration sensors and an optical laser tachometer connect to a USB interface unit. The Windows software measures vibration and phase, then calculates the correction mass and angle from trial-weight runs (influence-coefficient method). A typical job takes 20-40 minutes per rotor. Two packages share the same unit and software: Balanset-IA Full Kit (with magnetic stand, digital scale and case) and Balanset-IA OEM (core measuring kit). For 3 or 4 planes, see Balanset-4. VIBROMERA was founded in 2017; 1,000+ users in 50+ countries (vibromera.com). • No disassembly: balance the rotor in its own bearings, at the machine. • One or two correction planes: 2 vibration channels + 1 RPM channel. • No guesswork: the software gives the correction mass and angle for each plane from trial-weight runs. • Short jobs: typical workflow 20-40 minutes per rotor. • Wide speed range: 100-100,000 rpm. • Balancer and vibration analyzer in one: 1 x vibration, phase, FFT spectrum and overall vibration. • Faster repeat work: saved coefficients for repeat balancing of the same rotor. • Verifiable result: residual vibration checked against ISO 21940-11 tolerance. • Portable: powered from the laptop USB port; Full Kit 4 kg in a plastic case; IP54. • 2-year warranty with free replacement of faulty parts; free support by email and on the community forum. Parameter Value Vibration channels 2 (+ 1 RPM channel) Frequency range 5 - 1000 Hz (balancing and FFT spectrum); amplitude error <10 % from 5 to 550 Hz, up to 20 % from 550 to 1000 Hz

Overall accuracy 5 % of full scale Vibration sensor 5 m or 10 m (choose at order) Protection class IP54 (dust-protected, splash-water resistant) Weight Full Kit 4 kg; OEM package ~1.5 kg Compliance ISO 21940-11 (balancing) • ISO 20816 (vibration evaluation) Software OS Windows 7 / 8 / 10 / 11 (32 or 64-bit), one free USB port Component Balanset-IA Full Kit (SKU BS) Balanset-IA OEM (SKU BSOEM) Balanset-1A interface unit Included Included Vibration sensors (x2) Included Included Optical laser tachometer Included Included Reflective tape Included Included Balancing software on USB drive Included...

Single-plane or two-plane dynamic balancing, on site, without disassembly. Why a trial weight? Vibration alone does not show how much mass to add or where. A trial weight of known mass adds a known change of unbalance. By comparing the vibration before and after, the software calculates the influence coefficients and then the mass and angle of the correction weight. • Step 1 — Setup: mount the vibration sensors on the bearing housings, stick reflective tape on the shaft, and connect the vibration sensors and the laser tachometer to the USB interface unit, then the unit to the laptop. • Step 2...

Ordering & warranty The current price is always on vibromera.eu. Order online at vibromera.eu: Balanset-1A Full Kit (SKU BS) or Balanset-1A OEM (SKU BSOEM); choose 5 m or 10 m vibration sensor cables. Quote or pro-forma invoice: [email protected]. Payment: VISA, Mastercard, AMEX, PayPal or bank transfer. Delivery: UPS or DHL, Incoterms DAP, tracked; cost by destination. Dispatch in 1–5 business days for in-stock items. VAT: 0 % outside the EU (export); 0 % for businesses in another EU country with a valid EU VAT ID (reverse charge); 23 % in Portugal; local VAT for EU private individuals. Warranty:...
