VIBCO PNEUMATIC BALL VIBRATORS

VIBCO PNEUMATIC BALL VIBRATORS
2Pages

Catalog excerpts

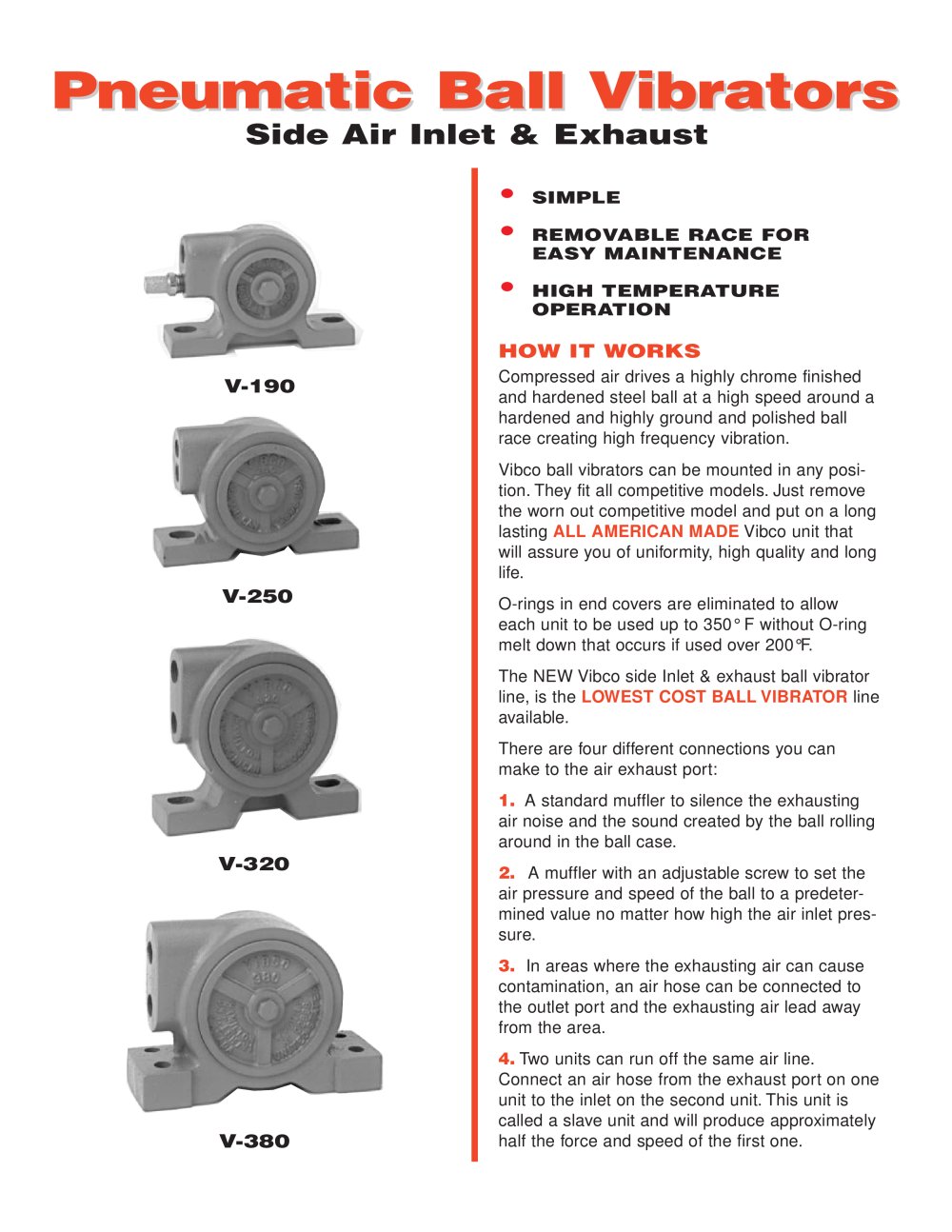

REMOVABLE RACE FOR EASY MAINTENANCE > HIGH TEMPERATURE OPERATION > Compressed air drives a highly chrome finishedand hardened steel ball at a high speed around a hardened and highly ground and polished ball race creating high frequency vibration.Vibco ball vibrators can be mounted in any posi-tion.They fit all competitive models.Just remove the worn out competitive model and put on a long lasting ALL AMERICAN MADE Vibco unit thatwill assure you of uniformity, high quality and long life.O-rings in end covers are eliminated to alloweach unit to be used up to 350հF without O-ring melt down that occurs if used over 200F.The NEW Vibco side Inlet & exhaust ball vibratorline, is the LOWEST COST BALL VIBRATOR lineavailable.There are four different connections you canmake to the air exhaust port: 1. A standard muffler to silence the exhaustingair noise and the sound created by the ball rolling around in the ball case. > 2. 3. 4. Two units can run off the same air line.Connect an air hose from the exhaust port on one unit to the inlet on the second unit.This unit is called a slave unit and will produce approximately half the force and speed of the first one. In areas where the exhausting air can causecontamination, an air hose can be connected to the outlet port and the exhausting air lead away from the area. A muffler with an adjustable screw to set theair pressure and speed of the ball to a predeter- mined value no matter how high the air inlet pres- sure. >

Open the catalog to page 1
