pneumatic impact vibrator

Product catalog summary

Specifications:
The Model 70 end-mounted series pneumatic piston vibrators are designed for linear force production with adjustable frequency and force via air pressure. They feature both millimeter and inch end threads in the mounting hole, and can be configured for air discharge at the vibrator or through an exhaust manifold. The vibrators are available in silent or impacting models and are constructed entirely of steel for durability.

Technical Data:
The vibrators operate at various air pressures (40 PSI/2.8 BAR, 60 PSI/4.1 BAR, 80 PSI/5.5 BAR) with corresponding CFM and VPM values. The weight and material capacity vary by model, with piston sizes ranging from 5/8 inch to 1-1/4 inch. The data provided is a guide for estimating vibrator sizes for standard hopper shapes with dry, granular materials of at least 50 lbs/cu. ft. bulk density.

Dimensions:
Dimensions are provided for each model, including tap size and various measurements in both inches and millimeters. The models include 70-5/8, 70-3/4, 70-1, and 70-1-1/4, with specific dimensions for each.

Ordering Information:
To order, select the size, specify if a silent unit is needed by adding 'S', determine if an exhaust manifold is required by adding 'EM', and specify the thread type ('mm' or 'inch').

Contact Information:
VIBCO, INC. provides contact details for their locations in the West Coast, Canada, and their main office in Wyoming, RI. They offer phone, fax, and email contact options.

Catalog excerpts

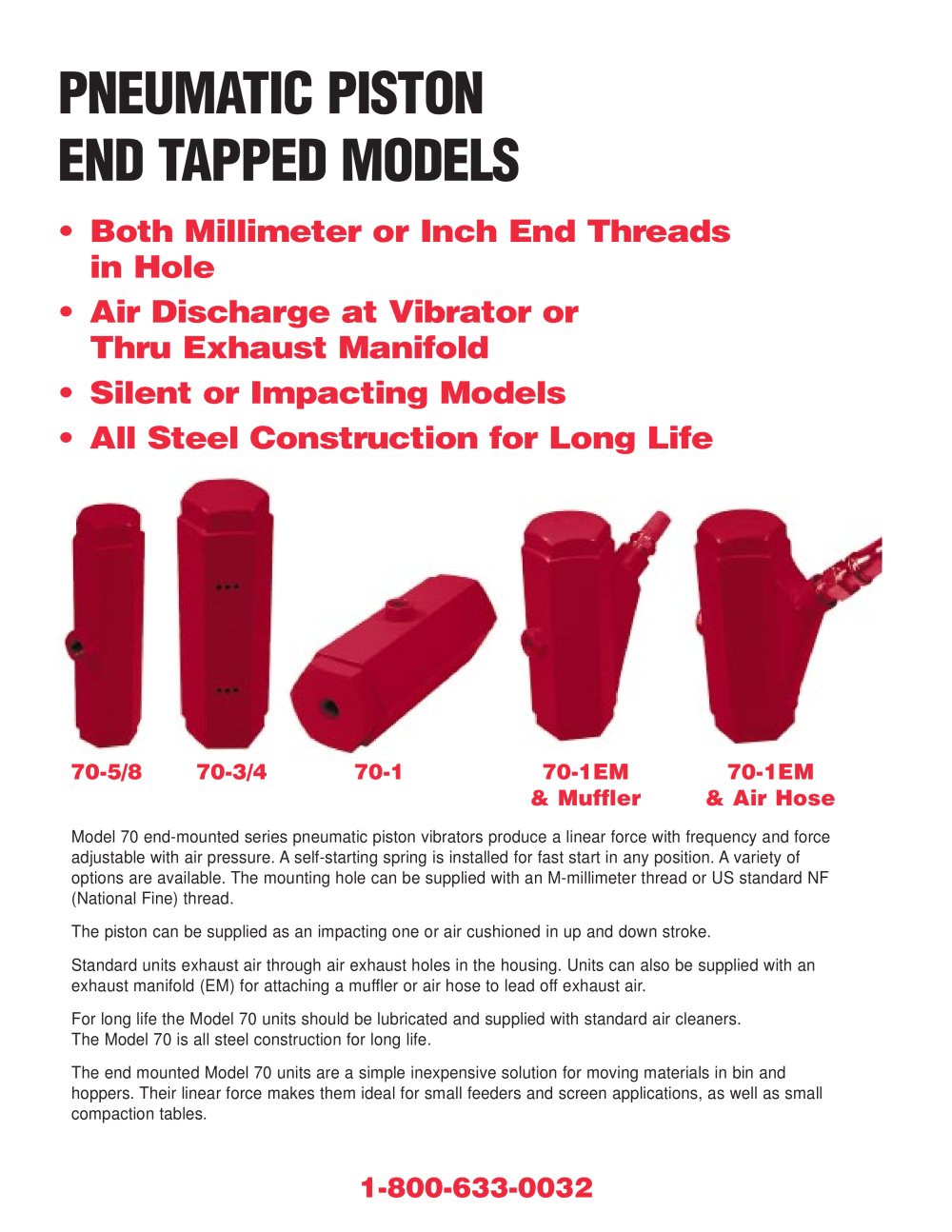

70-5/870-3/470-170-1EM70-1EM& Muffler& Air Hose Model 70 end-mounted series pneumatic piston vibrators produce a linear force with frequency and force adjustable with air pressure. Aself-starting spring is installed for fast start in any position. Avariety of options are available. The mounting hole can be supplied with an M-millimeter thread or US standard NF (National Fine) thread.The piston can be supplied as an impacting one or air cushioned in up and down stroke. Standard units exhaust air through air exhaust holes in the housing. Units can also be supplied with anexhaust manifold (EM) for attaching a muffler or air hose to lead off exhaust air.For long life the Model 70 units should be lubricated and supplied with standard air cleaners.The Model 70 is all steel construction for long life.The end mounted Model 70 units are a simple inexpensive solution for moving materials in bin and hoppers. Their linear force makes them ideal for small feeders and screen applications, as well as small compaction tables. 1-800-633-0032 >
