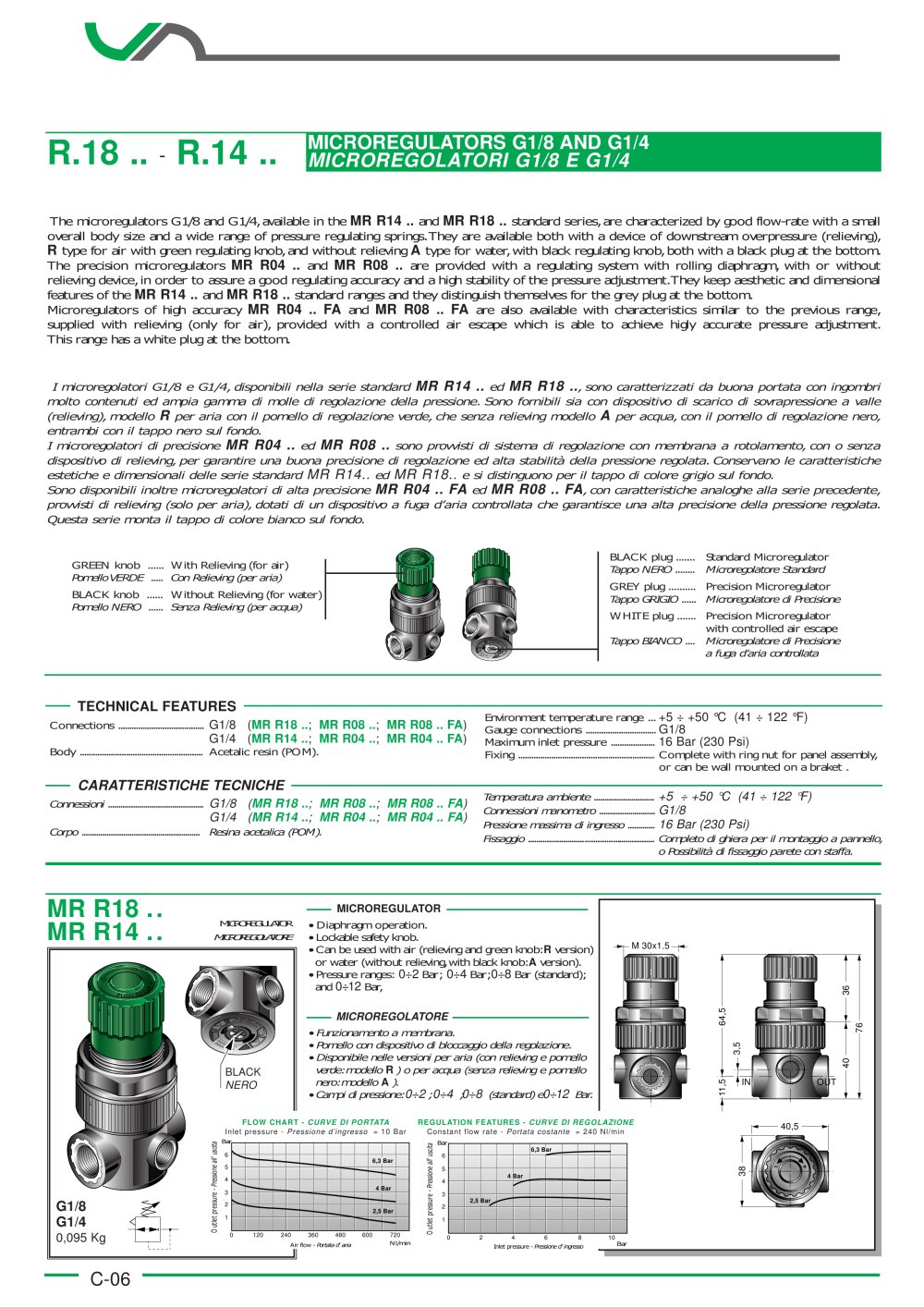

Microregulators MR R1-, MR R0-, MR-FA

Product catalog summary

Overview: The document provides detailed specifications and features of microregulators G1/8 and G1/4, available in various series including MR R14, MR R18, MR R04, and MR R08. These microregulators are designed for use with air and water, offering different pressure ranges and configurations.

Specifications:

Diaphragm operation with a lockable safety knob.
Available for air (relieving, green knob) and water (non-relieving, black knob).
Pressure ranges: 0-2 Bar, 0-4 Bar, 0-8 Bar (standard), and 0-12 Bar.
Body made of acetalic resin (POM).
Environment temperature range: +5 to +50 °C (41 to 122 °F).
Maximum inlet pressure: 16 Bar (230 Psi).

Microregulator Types:

Standard Microregulators: MR R14 and MR R18 series with black plug, available with or without relieving.
Precision Microregulators: MR R04 and MR R08 series with grey plug, featuring a rolling diaphragm for high stability and accuracy.
High Accuracy Microregulators: MR R04 FA and MR R08 FA series with white plug, equipped with controlled air escape for precise pressure adjustment.

Flow and Regulation Features:

Flow charts indicate outlet pressure against air flow and inlet pressure.
Constant flow rate maintained at 240 Nl/min with an inlet pressure of 10 Bar.

Installation and Connections:

Connections available in G1/8 and G1/4.
Can be mounted on a panel or wall using a bracket.

Order Codes: The document lists various order codes for different configurations of microregulators, indicating pressure range and type (R for air, A for water).

Catalog excerpts

PRECISION MICROREGULATOR M 30x1.5 ? Rolling diaphragm.? Lockable safety knob.? Can be used with air (relieving and green knob: > R version)or water (without relieving,with black knob: > A version).? Pressure ranges: > 3640 02 Bar; 04 Bar; 0緷8 Bar (standard);and 012 Bar, > 64,511,5 76 MICROREGOLATORE DI PRECISIONE ? Membrana a rotolamento.? Pomello con dispositivo di bloccaggio della regolazione. ? Disponibile nelle versioni per aria (con relieving e pomello verde:modello > 3,5 IN OUT R ) o per acqua (senza relieving e pomello nero:modello > A ).? Campi di pressione: 02 ; 0緷4 ; 08 (standard) e...

Open the catalog to page 2
