Manual operating valves PGI, PF - SR, PFF

1 / 1 PageView full catalog

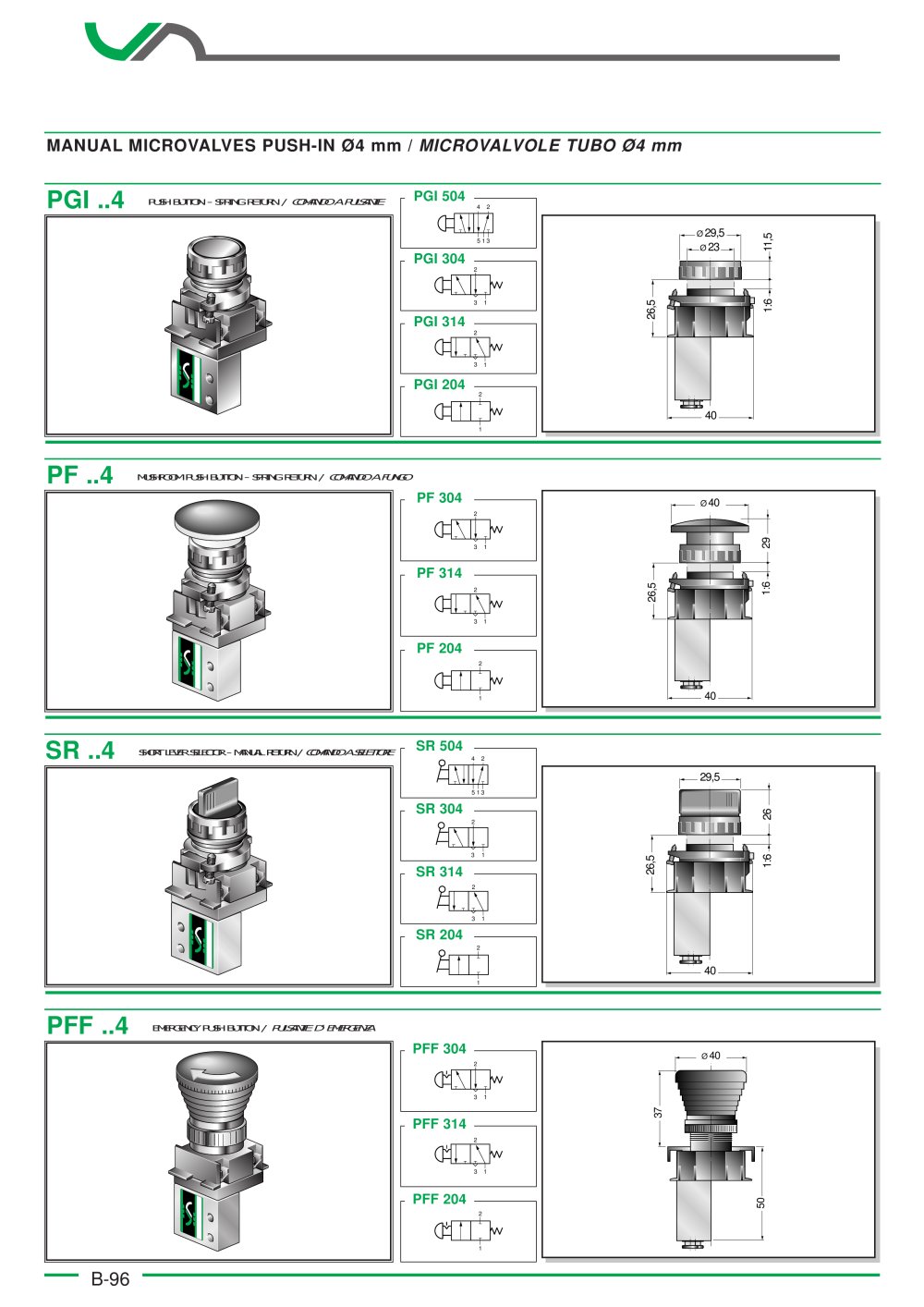

Manual operating valves PGI, PF - SR, PFF

Product catalog summary

Overview of Push Button and Selector Components

Component Types and Descriptions:

PGI ..4: Push Button with Spring Return mechanism. Diameter approximately 29.5 mm and 23 mm for different parts, with dimensions 40 mm by 26.5 mm and 11.5 mm thickness.
PF ..4: Mushroom Push Button with Spring Return. Diameter 40 mm, dimensions 40 mm by 26.5 mm and 29 mm thickness.
SR ..4: Short Lever Selector with Manual Return. Diameter 29.5 mm, dimensions 40 mm by 26.5 mm and 26 mm thickness.
PFF ..4: Emergency Push Button. Diameter 40 mm, dimensions 37 mm by 50 mm.

Material Codes and Variants:

PF 304, PF 314, PF 204
SR 304, SR 314, SR 204, SR 504
PFF 304, PFF 314, PFF 204
PGI 304, PGI 314, PGI 204, PGI 504

Additional Notes:

Manual microvalves with push-in connection for Ø4 mm tubing are referenced, indicating compatibility with these components.
Dimensions are provided in millimeters and indicate the size and form factor of each push button or selector type.

Critical Parameters and Recommendations:

Spring return mechanisms are standard for push buttons (PGI and PF types), ensuring automatic reset after actuation.
Manual return is specified for the short lever selector (SR type), requiring manual resetting.
Emergency push buttons (PFF type) have larger dimensions, likely for ease of identification and operation in urgent situations.
