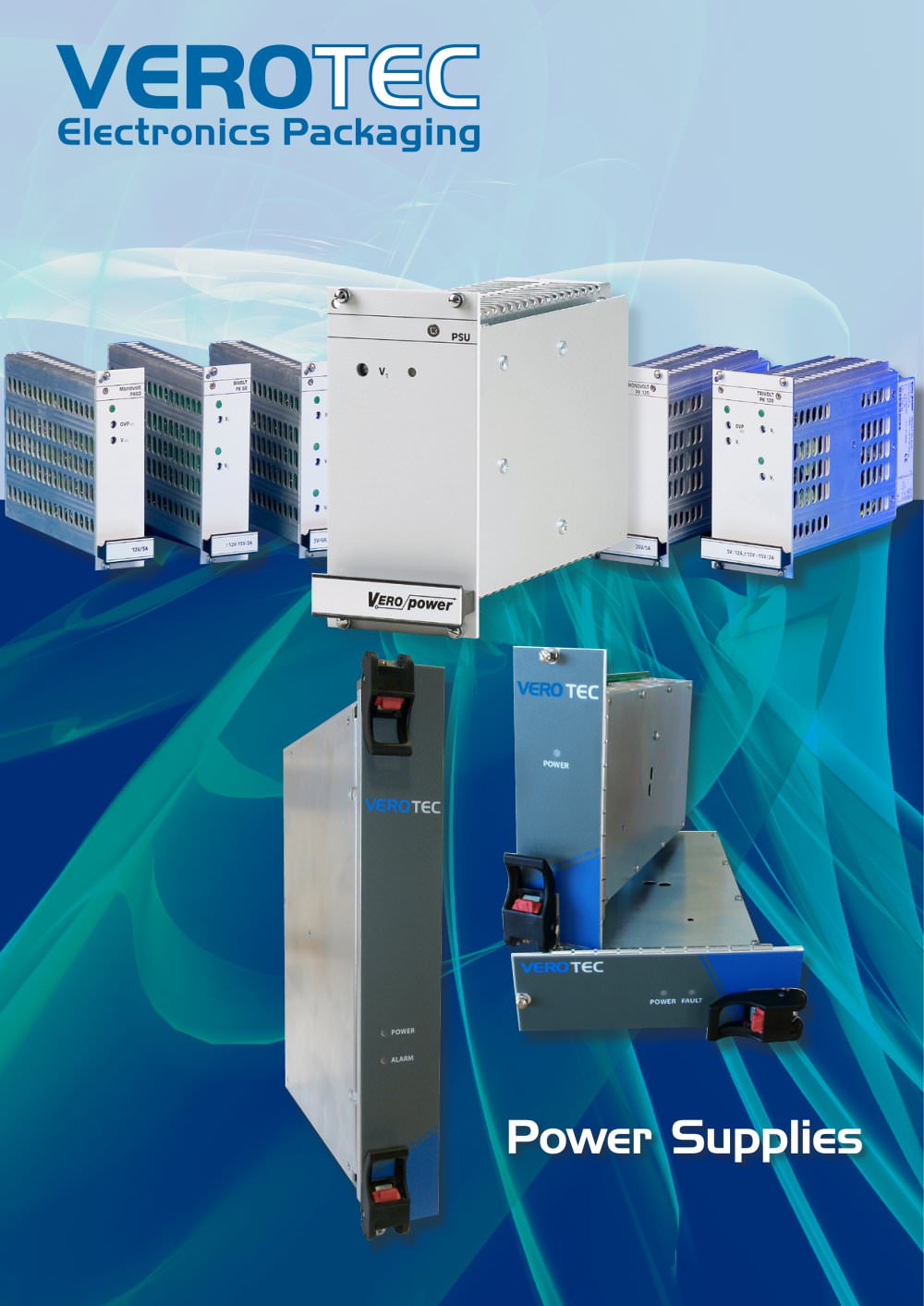

VEROTEC Electronics Packaging Power Supplies
Open the catalog to page 1Power Supplies – Value Added Services from Verotec… Custom Power Supplies TecServ+ is the vehicle by which Verotec delivers its value added services. These fall within 5 main categories and are described below. When it comes to power supplies, we’ve worked with many customers in the past to design, manufacture and help bring to market modified and custom versions of our standard products – a small selection of these are pictured below. If you have any special power supply requirements, please contact our sales office. Engineering Services: Complete review of commercial, electro-mechanical,...
Open the catalog to page 2Power Supples - Index Compact pci 3u series 200W AC/DC & DC/DC 11.04 - 11.09 300W AC/DC & DC/DC 11.10 - 11.15 AC/DC converters · PK-Series PK MONOVOLT 11.26 - 11.28 PK BIVOLT 11.29 - 11.30 PK TRIVOLT 11.31 - 11.33 AC/DC converters economy · EC-Series EC MONOVOLT 11.44 EC TRIVOLT 11.45 -11.47 DC/DC converters · GK-Series GK MONOVOLT 11.48 - 11.50 GK BIVOLT 11.51 - 11.52 GK TRIVOLT 11.53 - 11.54
Open the catalog to page 3PK-Series: MONOVOLT AC/DC 30 to 120 Watt switched mode AC/DC plug-in power supplies with one output in 3U Eurocassettes for use in 19” subracks to DIN 41494 Features Compact rugged design in stable aluminium cassette High regulation accuracy Remote On/Off and Powerfail signal SENSE-operation and Overvoltage protection (OVP) PK60-R for redundant operation Convection cooling CE marked for compliance to EMC and Low Voltage Directives Safety according to EN60950, UL, cUL VERO standardised pinning 24 months warranty Input Data Input voltage (switchable) Input frequency Inrush surge current limit...
Open the catalog to page 4PK-Series: MONOVOLT AC/DC Technical Data V1 Output voltage Adjustment range Output nominal current Ripple at full load Line regulation (100% IOUT) Load regulation static (10...90%IOUT) Output current limit Short circuit protection continously, automatic restart Powerfail signal (at full load >6ms) Temperature coefficient Output regulation with sense Derating Line regulation (100% IOUT) Load regulation static (10...90%IOUT) vOutput current limit Output voltage Adjustment range Output nominal current Ripple at full load Short circuit protection continously, automatic restart Overvoltage...
Open the catalog to page 5PK-Series: MONOVOLT AC/DC Technical Data V1 Output voltage Adjustment range Output nominal current Ripple at full load Line regulation (100% IOUT) Load regulation static (10...90%IOUT) Output current limit Short circuit protection continously, automatic restart Overvoltage protection (OVP) adjustable Temperature coefficient Output regulation with sense Powerfail signal (at full load >6ms) +SENSE -SENSE * Sense lines must be connected. For maximum compensation for supply lead voltage drop they should be connected as close to the load as possible
Open the catalog to page 6PK-Series: BIVOLT AC/DC 30 to 60 Watt switched mode AC/DC plug-in power supplies with two outputs in 3U/8HP Eurocassettes for use in 19” subracks to DIN 41494 FEATURES: High regulation accuracy All voltages individually adjustable Compact rugged design in stable aluminium cassette EN60950, UL, and cUL approvals CE marked for compliance to EMC and Low Voltage Directives Overvoltage protection (OVP) No-load and short circuit proof Coded H15 connector VERO standardised pinning 24 months warranty SPECIFICATION INPUT SPECIFICATION Input Data Input voltage (switchable) Input frequency Inrush...
Open the catalog to page 7PK-Series: BIVOLT AC/DC Technical Data BIVOLT PK Series BIVOLT PK30 30W Dual output Output voltage Output nominal current Ripple at full load Line regulation (100% IOUT) Load regulation static (10...90%IOUT) Output current limit Short circuit protection continously, automatic restart Temperature coefficient BIVOLT PK60 60W Dual output Output voltage Adjustment range Output nominal current Ripple at full load Line regulation (100% IOUT) Output current limit Load regulation static (10...90%IOUT) Short circuit protection continously, automatic restart Overvoltage protection (OVP) fix Powerfail...
Open the catalog to page 8PK-Series: TRIVOLT AC/DC 60 to 120 Watt switched mode AC/DC plug-in power supplies with three outputs in 3U Eurocassettes for use in 19” subracks to DIN 41494 FEATURES: 3 high stability outputs, all adjustable Safety approvals to UL, cUL and EN60950 CE marked for compliance to EMC and Low Voltage Directives SENSE operation (5V output) Overvoltage protection (OVP) Powerfail signal No-load and short circuit proof Coded H15 connector VERO standardised pinning 24 months warranty Input Data Input voltage (switchable) Input frequency Inrush surge current limit Input voltage spike limit Hold-up...
Open the catalog to page 9PK-Series: TRIVOLT AC/DC Technical Data 116-10018 / 116-10103 TRI PK60 Powerfail signal (at full load >6ms) Line regulation (100% IOUT) Load regulation static (10...90%IOUT) Output voltage Adjustment range Output nominal current 1) Ripple at full load Output current limit Short circuit protection continously, automatic restart Temperature coefficient Output regulation with sense max. Output voltage Adjustment range Output nominal current Line regulation (100% IOUT) Load regulation static (10...90%IOUT) Output current limit Ripple at full load Short circuit protection continously, automatic...
Open the catalog to page 10PK-Series: TRIVOLT AC/DC 75 Watt switched mode AC/DC plug-in power supply with 3 outputsin 3U Eurocassettes for use in 19” subracks to DIN 41494 FEATURES: 3 high stable outputs, all individually adjustable Universal 115/230VAC input Two 12—15V linear outputs for currents up to 2A Overvoltage protection (OVP), sense operation Powerfail signal Compatible to Trivolt PK60, VP80-3 and EC50 Coded H15 connector, VERO standardised pinning Stable aluminium extrusion cassette No projecting heatsink 24 months warranty A 75W power supply as expansion of our PK Series, now with 115/230V universal input,...
Open the catalog to page 11VP-Series: 20W AC/DC Power Supply 20 WATT SWITCHED MODE AC/DC PLUG-IN POWER SUPPLIES IN 3U/4HP MODULE FOR 19” SUBRACKS TO DIN 41494 FEATURES: Wide input range 94-253VAC Single DC output 5V, 12-15V & 24V output versions Compact 3Ux4HPx160mm form factor Short circuit protection CE marking (to EMC & LVD Directive) Power Fail Signal Safety certified to EN60950 24 month warranty SPECIFICATION: Input AC Input Voltage Power factor Output (see ordering information for power ratings) Ripple (full load) Regulation Line Regulation Load Regulation Transient Response Voltage Stabilisation The VP20 is a...
