Introduction

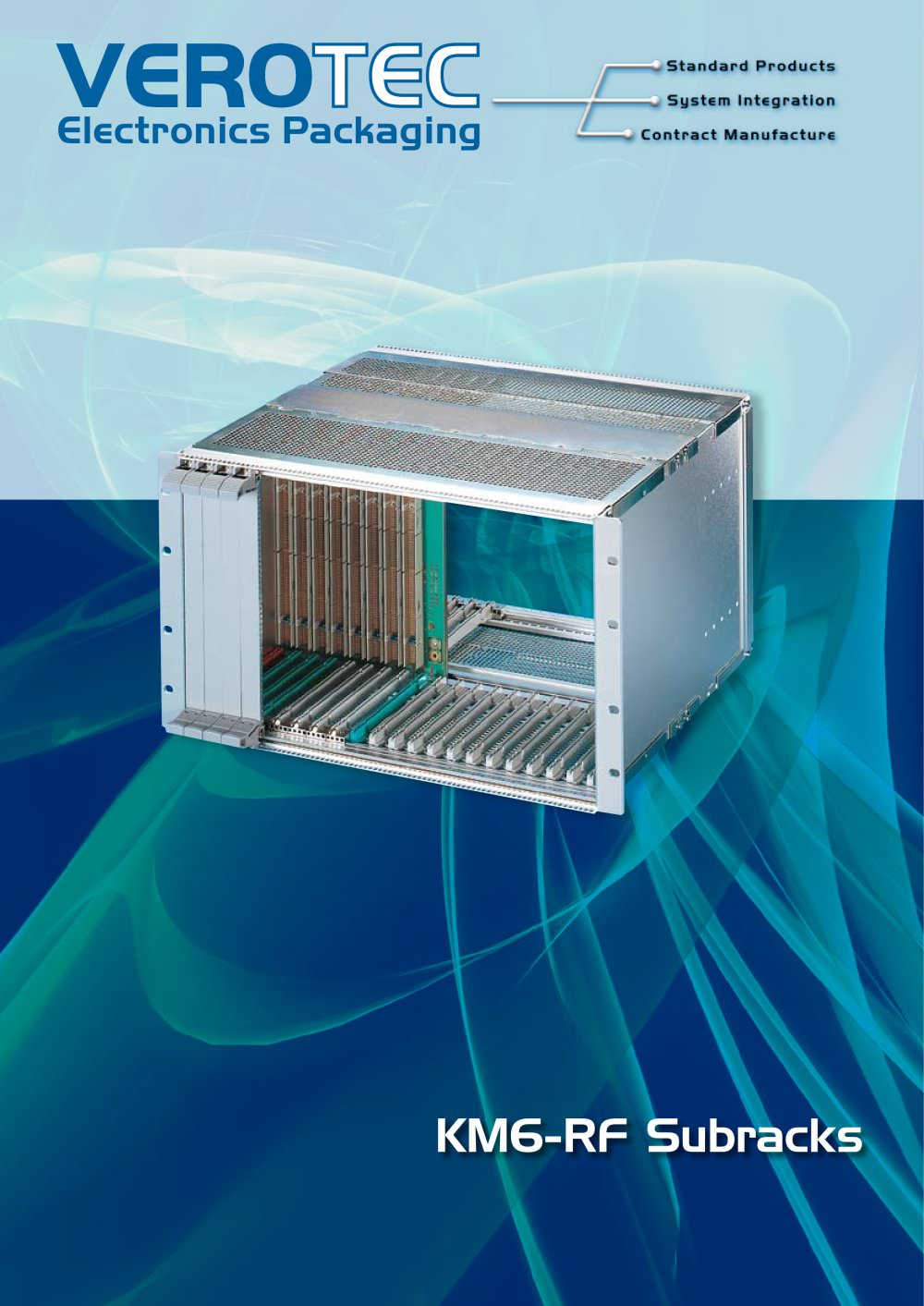

The KM6-RF subrack is an advanced electronics packaging solution designed for high-frequency EMC shielding, compatible with CompactPCI, PXI, and VME64X systems. It enhances the KM6-II range with improved configuration options and compliance with IEC60297-3 and IEEE1101.10 standards.

Specifications and Standards
The subrack complies with IEC60297-3 and IEEE1101.10 standards, ensuring compatibility with advanced bus systems. It includes a front panel injector/extractor for managing insertion forces with Metric and five-row DIN connectors.

Construction Styles

Style A: Features PCB depth ventilated EMC covers, with an optional rear cover shell.
Style B: Offers overall ventilated EMC covers with a removable rear panel for interface connectors.
Style C: Includes interlocking PCB depth covers for front and rear transition areas, configurable based on PCB sizes.

Features
The KM6-RF subrack is designed for higher-level EMC applications and is delivered as a complete kit with heavy-duty upgrade options. It supports a wide range of accessories for both EMC and non-EMC applications.

Extrusion Options
Variations include choices of front and backplane extrusions, with options for both IEEE1101.10 and IEC60297-3 standards.

EMC Performance
Testing results indicate high EMC attenuation, with detailed methods available in the 'Science of Compliance' leaflet.

Customizing Service
Verotec offers extensive customization options for subracks, supported by experienced design and production teams.

Ordering Information
Subracks are available in various sizes and configurations, with detailed ordering codes provided for different dimensions and Eurocard depths.

Overview
The document provides detailed specifications and ordering information for KM6-RF subracks, which are designed to meet IEEE1101.10 and 11 standards. These subracks offer high EMC shielding performance and are available in various configurations and sizes, including 3U, 6U, and 9U heights.

Specifications
The subracks are available in different styles (A, B, and C) and are compatible with Eurocard depths. They feature components such as end plates, EMC finger strips, backplane extrusions, and fabric cover seals. The materials used include aluminum alloy, stainless steel, and PVC, with finishes like clear chromate and zinc plating.

Features
Key features include quick assembly, heavy-duty upgrades, and compatibility with 19” and ETSI rack mounting angles. The subracks also support various rear plug-up configurations and offer complete kit deliveries with insulation spacers and rear closing panels.

Ordering Information
The document provides detailed ordering codes for different configurations and sizes. It includes information on basic frames, end plates, EMC rear sections, and guides, with specific order codes for each component based on size and configuration.

Assembly Instructions
The document outlines the contents of each kit and provides instructions for assembling the subracks, including the selection of suitable parts and accessories.

Applications
The KM6-RF subracks are suitable for housing 160mm Eurocards and are designed to accommodate various rear plug-up options as per IEEE1101.11 standards.

Front Extrusions

Three versions available: IEEE 1101.10, IEC 60297-3, and Lipless.
Various widths and guide location in 1HP increments.
84HP lengths have printed slot locations.

Rear Extrusions

Type 1 requires a spacer for backplane geometry; Type 2 does not.
Used to secure covers at the rear of Style B subracks.

Backplane/Motherboard Extrusions

Type 1 for use with backplane spacer; Type 2 for direct mounting.
DIN 41 612 conversion option available.

Backplane Spacers

Insulating and conductive versions available.
Supplied in 84HP lengths, can be cut down for shorter versions.

Tapped Strips

M2.5 and M3 versions, pre-tapped on 5.08mm pitch.
Used for accurate assembly fixing locations.

EMC Seals

Vertical finger strips and fabric seals for maintaining EMC integrity.
Horizontal front panel seals for electrical contact between panels and extrusions.

Style A and B Covers

Normal ventilated and fire enclosure versions available.
Different depths and heights to accommodate various PCB sizes.

Divider Kits

Divides 6U frames into two 3U sections.
Includes EMC screening member and supports IEEE1101.10 and IEC 60297-3 standards.

Overview
This document provides technical specifications, ordering information, and assembly instructions for various components related to PCB guides and grounding clips, compliant with IEC and IEEE standards.

Specifications

Components are compliant with IEC60297-3 and IEEE1101.10 standards.
PCB guides are available in different lengths (100mm, 160mm, 220mm) and colors (green, light grey, red) with UL94 flammability ratings.
Grounding clips provide electrostatic protection and are tested to IEC 950: 1986 standards.

Ordering Information

PCB guides and grounding clips are available in packs of 10, with specific order codes for each variant.
Coding keys and frame-mounted coding devices are also available, with separate order codes.

Features

PCB guides offer bolt-down facilities for added strength and are available in UL94-V1 and V0 versions.
Grounding clips ensure electrical continuity and do not require screws for installation.
Heavy-duty support extrusions add strength and security for heavy plug-in units.

Assembly Instructions

Guides can be screwed down to a horizontal tapped strip using M2.5 x 5mm security fixing screws.
Grounding clips fit into a pocket in the guide and maintain contact without screw fixings.

Recommendations

Ensure proper installation of grounding clips to provide a ground path for electrostatic charges.
Use coding devices to convert standard guides to IEEE1101.10 specifications for enhanced conductivity.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:23.00pt "Arial", sans-serif; } .font2 { font:27.00pt "Arial", sans-serif; } .font3 { font:52.00pt "Tahoma", sans-serif; } VGROTGC Electronics Packaging StandardProductsSystemIntgration ContractManufacture KM6-RF

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } CompactPCI, PXI AND VME64X COMPATIBLE KM6-RF SUBRACK This subrack, an volution of our successful KM6 range, has been designed to EMC shield electronics systems which operate especially in the higher end of the frequency spectrum. Building on our experience with KM6-II, the first commercially available standard subrack system with a truly retrofit EMC capability, KM6-RF incorporates a number of features which provide...

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:22.00pt "Arial", sans-serif; } troduction: KM KM6-RF SUBRACKS KM6-RF is compatible with IEC 297-3 and DIN 41494, so it will accept the existing range of guides, front panel and plug-in units. It has, however, a new design of extruded EMC front panel and contact fingers designed to the latest industry standards...

Open the catalog to page 3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } COMPATIBLE WITH IEEE1101.10 AND .11 FOR CompactPCI, PXI AND VME64X SYSTEMS The IEEE1101.11 standard is a further extension of the core spcification -IEEE1101.1 - which embraces both IEC60297-3 and IEEE1101.10. IEEE1101.11 standardises and sets out the geometry for the rear plug-up (transition) area of a subrack where previously no standard existed. Rear plug-up - or transition - is used and required within the core...

Open the catalog to page 4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.25pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:6.00pt "Impact", sans-serif; } TYPE 2 BACKPLANE EXTRUSIONS Features ■ Extended front lip for injector/extractor ■ 240, 300 and 360mm depths ■ Complete kit delivery ■ Heavy duty upgrade...

Open the catalog to page 5

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.60pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } .font7 { font:4.00pt "Impact", sans-serif; } .font8 { font:6.00pt "Impact", sans-serif; } KM6-RF Subrack: 3U style A - IC60297-3 TYPE 2 BACKPLANE EXTRUSIONS Features ■ Conventional front lip ■ 240, 300 and 360mm depths ■ Complete kit delivery...

Open the catalog to page 6

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.60pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:16.00pt "Arial", sans-serif; } .font9 { font:54.00pt "Arial", sans-serif; } .font10 { font:14.00pt "Arial Black", sans-serif; } .font11 { font:9.00pt "Franklin Gothic Medium", sans-serif;...

Open the catalog to page 7

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.60pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Arial", sans-serif; } .font8 { font:14.00pt "Arial", sans-serif; } .font9 { font:16.00pt "Arial", sans-serif; } .font10 { font:8.00pt "Impact", sans-serif; } .font11 { font:11.00pt "Impact", sans-serif; } type 1 and...

Open the catalog to page 8

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.60pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:16.00pt "Arial", sans-serif; } .font9 { font:39.00pt "Arial", sans-serif; } .font10 { font:8.00pt "Impact", sans-serif; } ■ type 2 backplane extrusions Features ■ Extended front lip...

Open the catalog to page 9

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.60pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Arial", sans-serif; } .font8 { font:16.00pt "Arial", sans-serif; } .font9 { font:8.00pt "Impact", sans-serif; } KM6-RF Subrack: 6U style A - IEC 60297-3 type 2 backplane extrusions Features ■ Conventional front lip ■ 240,...

Open the catalog to page 10
