Eurotec Caseframes

Product catalog summary

Overview
Verotec's Eurotec Caseframes are designed for housing Eurocard-style electronics in formats such as 19” rackmount, desktop, or portable. They feature EMC protection, cooling integration, and easy servicing access.

Value Added Services
Through TecServ+, Verotec offers customized Eurotec Caseframes with services including engineering, manufacturing, compliance, logistical, and project management. These services encompass design reviews, CAD modeling, prototype manufacturing, compliance testing, and project management.

Engineering Services

Comprehensive product requirement reviews.
Import of various file formats and CAD design.
3D modeling for conceptual testing.
Component selection from a vast library.

Manufacturing Services

Prototype and custom product manufacturing.
Modification of standard products.
Assembly and testing of complex systems.

Compliance Services

Product design validation and environmental legislation advice.
Pre-compliance testing for CE marking.
Testing and certification for various conditions.

Logistical Services

Express manufacturing and special packaging.
Scheduled orders and stock holding.
Exporting and customs documentation.

Project Management Services

Consultation and feasibility studies.
Cost estimation and design process management.
Cost reduction programs.

Caseframe Features

Available in desktop, rackmount, or portable styles.
EMC upgrade options and thermal management.
Compatible with KM6-II chassis system.
Various sizes and connection styles available.

Ordering and Accessories
Caseframes are supplied assembled and customizable with accessories like front trims, rack mount kits, and fan trays. They come in different sizes and configurations to meet specific needs.

EMC Performance
EMC tests on Eurotec Caseframes show improved performance with RFI finger strips and EMC panels. Full EMC screening kits are available for enhanced protection.

Conclusion
Verotec's Eurotec Caseframes provide a versatile and customizable solution for housing Eurocard-style electronics, supported by comprehensive services to meet diverse application requirements.

Specifications and Features
The Eurotec Caseframe includes features and accessories to enhance functionality. The bottom 1.5U can have a vented panel for air intake, replaceable with a blind front cover. Rubber feet are provided for use if tilt feet are not needed. Highlight strips in blue or grey are available for customization.

EMC Screening
To enhance EMC performance, beryllium copper, self-adhesive RFI finger strips can be installed at the front and rear interfaces, each 381mm long with 60 fingers.

Accessories
A range of KM6-II compatible accessories is available, including guides, front panels, modules, and chassis systems. Specific accessories include drop-in fan trays, tilt foot kits, rubber feet, highlight strips, and RFI finger strips.

Ordering Information
Order codes are provided for components like drop-in fan trays, blind panels, tilt foot kits, rubber feet, highlight strips, and RFI finger strips.

Dimensions
Eurotec Caseframe dimensions are in millimeters, with options for desktop, rack-mount, and portable cases. Internal depths are 240, 360, and 480mm, with card heights of 3U or 6U. External dimensions include options for additional U cases and vent slots.

Vented Panels
Vented panels are available with one or two rows of slots, and fan vented panels are punched for 80mm fans. Drop-in fan trays can accommodate 119mm fans up to 38mm thick in up to three positions. A vented front panel is standard, with a replaceable filter element available as part of the fan tray option.

Catalog excerpts

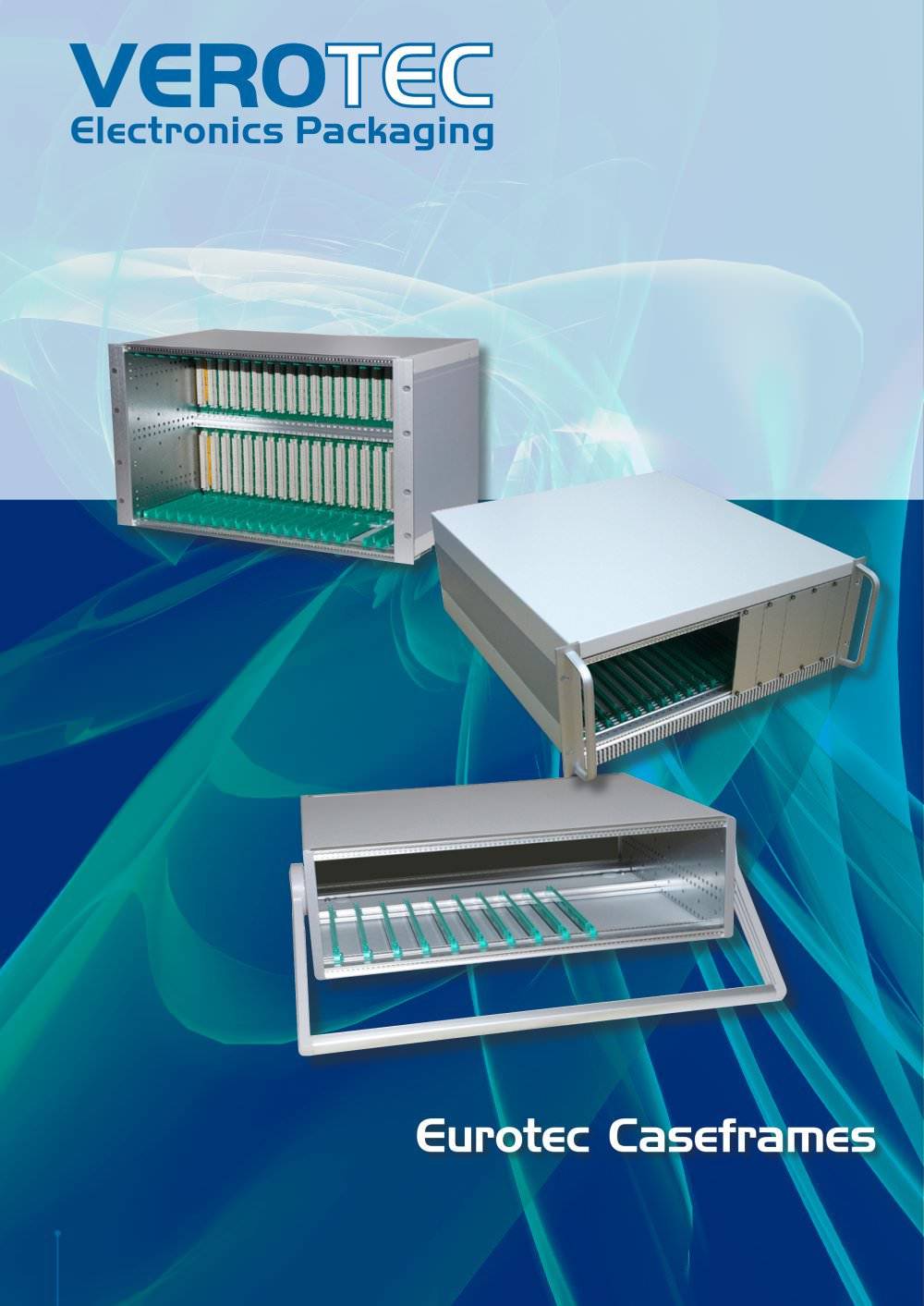

VEROTEC Electronics Packaging Eurotec Caseframes

Open the catalog to page 1

Eurotec Caseframes – Value Added Services from Verotec… CUSTOM EUROTEC CASEFRAMES TecServ+ is the vehicle by which Verotec delivers its value added services. These fall within 5 main categories and are described below. When it comes to Eurotec caseframes, we’ve worked with many customers in the past to design, manufacture and help bring to market modified and custom versions of our standard products – a small selection of these are pictured below. If you have any special Eurotec caseframe requirements, please contact our sales office ENGINEERING SERVICES: Complete review of commercial, electro-mechanical,...

Open the catalog to page 2

EUROTEC CASEFRAMES The Eurotec Caseframe is designed for applications that require the mounting / housing of Eurocard-style electronics (cards or modules) in either a 19” rackmount, desktop or portable formfactor. A step up from a standard subrack, its design requires no external housing, and offers optional EMC protection along with the integration of cooling fans and power supplies in a self contained, attractive unit. Top and bottom covers are easily removed for system building and servicing requirements. Desk top, 19” Rack mounting or portable EMC Upgrade Easy access for servicing Attractive...

Open the catalog to page 3

Eurotec Caseframes Eurotec Caseframes Desktop Unit Eurotec Caseframes Rackmount Unit CASEFRAME STYLES Eurotec Caseframes Portable Unit BACKPLANE MOUNTING UNITS: The Eurotec Caseframe is available in either a desktop, 19” rackmount or portable style to suit a number of different application environments. The Eurotec Caseframe is available in 3 depths of 240, 360 & 480mm internally. Standard eurocard heights of 3U & 6U are catered for, each with 3 variations available, providing a range of 6 heights. (Refer to page 7 for pictorial views) with close fitting unventilated top & bottom covers. high...

Open the catalog to page 4

Eurotec Caseframes : Accessories EUROTEC CASEFRAME ACCESSORIES A wide range of compatible KM6-II accessories can be found in the Subracks / Front Panel brochures / sections and include guides, front panels, modules and chassis system etc. In addition to these, the following specific accessories are also available ensuring the requirements of many applications can be met with standard off-the shelf parts Standard Eurotec Caseframes are 84HP wide and the Rack Mounted Unit may be converted to a Desk Top unit by replacing the rack mounting angles with a set of front trims. Select by the overall height....

Open the catalog to page 5

Eurotec Caseframes : Accessories DROP IN FAN TRAY The bottom cover of the 3U/5U & 6U/8U versions, which is 1½U high, will accept a drop-in fan tray, which draws air through the ventilated front, fitted with an inlet filter retained by the outer front cover. The tray has three positions for 120mm fans and is available for160mm & 220mm card depths. Unused fan positions can be filled with blanking plates. Contents of kit: 1 fan tray, filter, terminal block and fixings. (Refer to page 8 for pictorial view) Order separately: fans and wiring. TILT FOOT FACILITY The Eurotec Casframes have a modified...

Open the catalog to page 6

Eurotec Caseframe : Dimensions DESKTOP CASE 3 Eurotec Caseframes RACK-MOUNT CASE PORTABLE CASE

Open the catalog to page 7

Eurotec Caseframe : Dimensions INTERNAL DEPTH BACKPLANE TIE BARS (REQUIRE INSULATING or CONDUCTIVE SPACER) OR DIN41612 CONNECTOR MOUNTING TIE BARS (CENTRE TIE BAR FITTED ON 6U) REAR TIE BARS FACTORY FITTED FOR 160 DEEP CARDS IN 240 DEEP CASE AND 160 DEEP CARDS IN 360 & 480 DEEP CASE 0.5U TRUE HEIGHT CASE 3U OR 6U +1U CASE 3U/4U OR 6U/7U VENT SLOTS MAY BE AT FRONT OR REAR 3U or 6U 1.5U +2U CASE 3U/5U OR 6U/8U WITH 1.5U DEEP BOTTOM COVER

Open the catalog to page 8

eiirotec CasGframe : Dimensions VENTED PANELS DROP IN FAN TRAYS 160 or 220 DEEP VENTED FRONT PANEL BLIND FRONT PANEL OPTION REPLACEABLE FILTER ELEMENT (PART OF FAN TRAY OPTION) Electronics Packaging

Open the catalog to page 9
