Vermeer Manufacturing

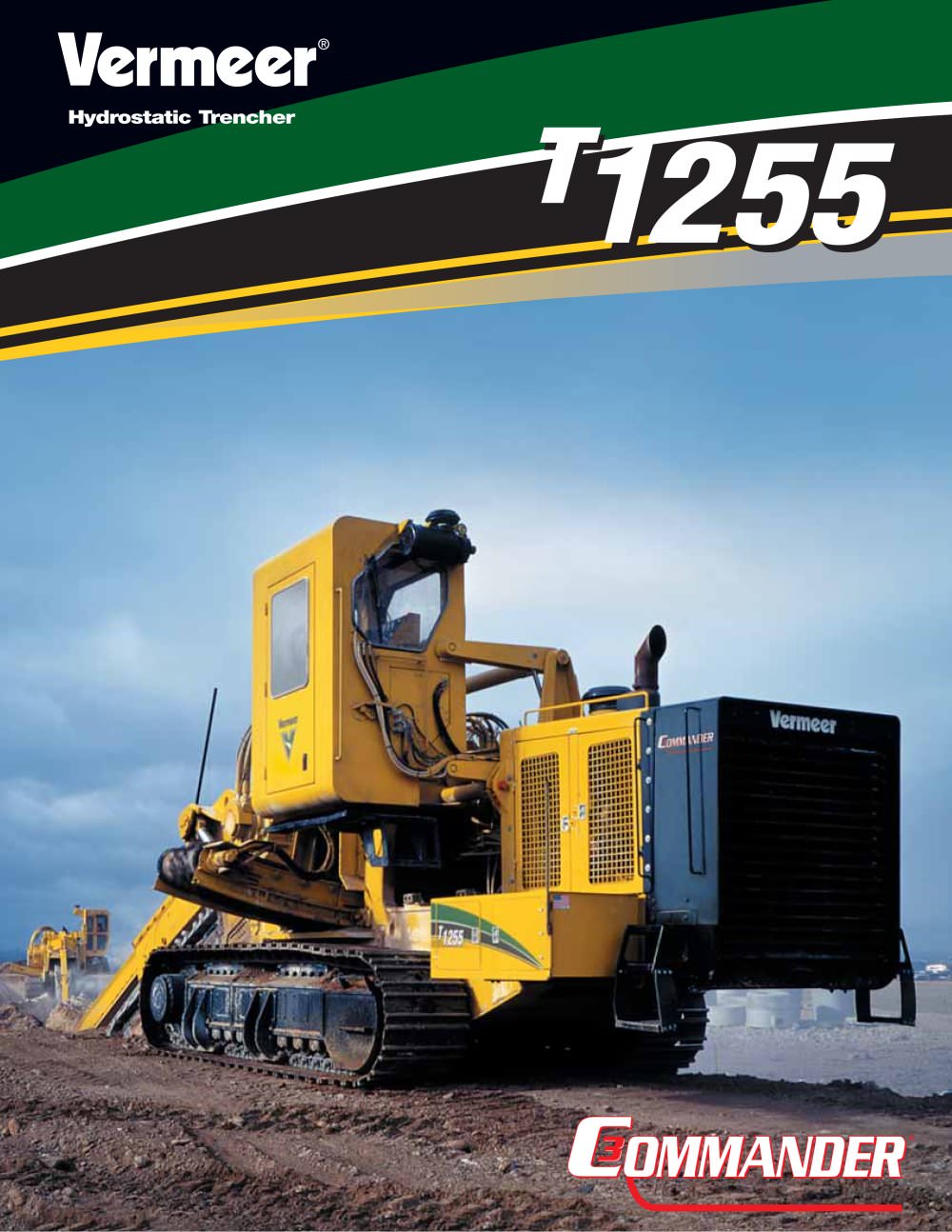

Terrain Leveler Surface Excavation Unit Literature T1255 Tier 3

Terrain Leveler Surface Excavation Unit Literature T1255 Tier 3

Product catalog summary

Overview
The Vermeer T1255 COMMANDER 3 is a heavy-duty rock trencher designed for challenging applications such as energy pipeline installations and deep sewer and water projects. It features a robust Caterpillar C18 ACERT Tier 3 engine with 600 hp, providing the necessary power for trenching through solid rock.

Specifications

Engine: Caterpillar C18 ACERT Tier 3, 600 hp, 2100 rpm, 6 cylinders, 370-gallon fuel capacity.
Dimensions: Height 146", Length 350"-703", Width 134"-144", Weight 148,000-245,000 lbs.
Tracks: Dual-path hydrostatic drive, ground pressure 16.4 psi, track length 176", track pad width 30".
Conveyor: 36" belt width, speed range 0-814 fpm, discharge height 74"-103".
Hydraulic System: 210-gallon oil capacity, pressure setting 2500 psi, pump flow max 26 gpm.
Trencher Attachment: Boom depth options from 8' to 18', cutting width range 30"-48".
Terrain Leveler Attachment: Max cutting depth 27", cutting width 144".

Performance Features
The T1255 COMMANDER 3 offers dual rotary power headshaft motors for superior rock penetration and low chain wear. The TEC 2000.2 Electronic Control System enhances productivity by monitoring operating conditions and providing real-time performance data.

Warranty and Service
Vermeer provides a 1-year/1,000-hour standard limited warranty on the T1255. The Vantage Track program offers extended-care service options for the hydrostatic systems, with coverage up to 5 years/5,000 hours.

Additional Information
Vermeer offers factory-certified training programs and a comprehensive parts and service network to ensure optimal equipment performance. For more details, contact Vermeer Manufacturing Company or visit their website.

Catalog excerpts

Terrain Leveler Surface Excavation Unit Literature T1255 Tier 3 -2

T oughness Meets T echnology > This heavy-duty Vermeer T1255COMMANDER ή 3 rock trencher digsthrough solid rock to install large-diameter pipe for contractors working in the energy pipeline business or in deep sewer and water applications.A Caterpillar C18 ACERT Tier 3 engine with 600 hp (447 kW) delivers the muscle needed for digging in rock, trenching cross-country, or working drainage and utility projects on roadways. The T1255 rock trencher provides dual-path hydrostatic drive with full counter rotation, and the trenchers 36" (91 cm) wide conveyor is large enough for high-volume spoil removal....

Open the catalog to page 2

Terrain Leveler Surface Excavation Unit Literature T1255 Tier 3 -3

Cab Air conditioner / heater: Standard Air suspension seat: Standard AM / FM stereo w/ weather band: Optional Elevating: Yes Pressurized / filtered air: Standard Roll Over Module (ROM): Yes Hydraulic System Oil tank capacity: 210 gal (795 L) Oil type: Vermeer HyPower 68or Vermeer HyPower 100 Pressure setting: 2500 psi (172.4 bar) Pump flow max: 26 gpm (98.4 L/min) Type: Pressure and flow compensated (load sensing) Trencher Attachment Boom depth options: 8', 10', 12', 14', 16', 18' (2.4 m, 3 m, 3.7 m, 4.3 m, 4.9 m, 5.5 m)Boom top rollers: Optional Chain speed range: 262 571 fpm (80 ֖ 174 m/min)Cutting...

Open the catalog to page 3

Terrain Leveler Surface Excavation Unit Literature T1255 Tier 3 -4

Vermeer Manufacturing Company 1210 Vermeer Road EastP.O.Box 200Pella, Iowa 50219 U.S.A.Phone:(641) 628-3141Fax:(641) 621-7773International fax:+1 (641) 621-7730www.vermeer.com Call toll-free 1-888-VERMEER 1-888-837-6337 (U.S.A. only) Europe, Middle East, and Africa: P.O.Box 3234460 AS GoesNetherlandsPhone:+31 113 272700Fax:+31 113 272727 > Equipment shown is for illustrative purposes only and may display optional accessories or components. Please contact your local Vermeer dealer for more information about machine specifications. Vermeer Manufacturing Company reserves the right to make changes...

Open the catalog to page 4
