Terrain Leveler Brochure


Catalog excerpts

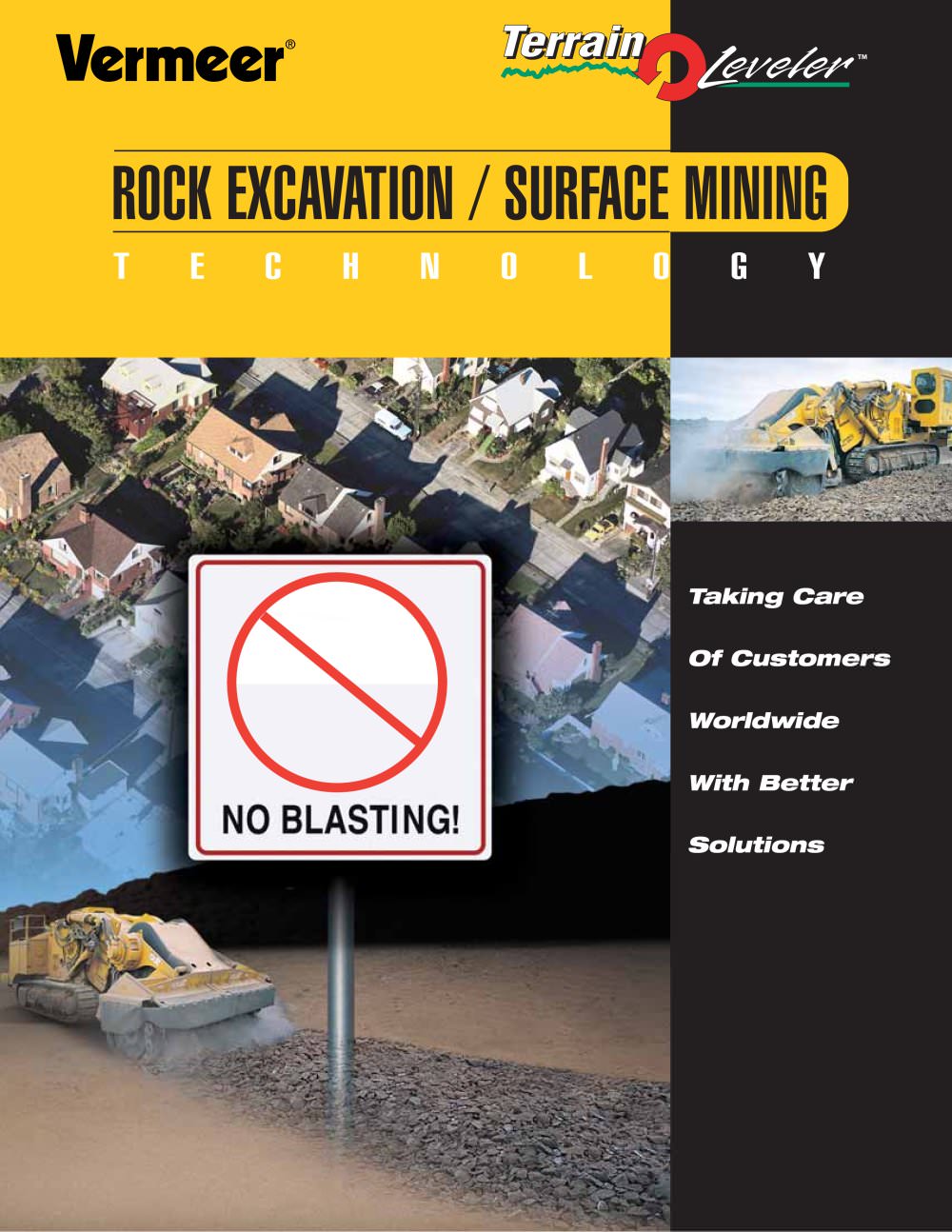

Terrain Leveler Brochure - 1

Taking Care Of Customers Worldwide With Better Solutions >

Open the catalog to page 1
Terrain Leveler Brochure - 2

Pr oductive Solutions for T ough Jobs. > The innovative Terrain Leveler Surface ExcavatingAttachments from Vermeer offer unmatched production in a variety of applications, including surface mining, site preparation, over-burden removal, road construction /reconstruction, and soil remediation. Depending on themodel, a Vermeer ٮ Terrain Leveler Attachment can cut an area up to 12 feet (3.7 m) wide and up to 32 inches (81.2 cm) deep in a single pass. A patented industry-exclusive tilting cutter drumwith two-direction leveling on the T1255 aids produc-tion by keeping the drum level allowing the...

Open the catalog to page 2
Terrain Leveler Brochure - 3

Get the jump on tough terrain applications with a Vermeer Terrain LevelerSurface Excavating Attachment. A clear view of the work in progress, heavy-duty motors, and excellent cutting depths and widths, combined with reliability and support, make these units ideal for your surface mining, site preparation, road construction / reconstruction, over-burden removal, and soil remediation projects. The power to get you through the tough jobs. Featuring heavy-duty CAT engines ranging from 350 hp (261 kW) to 600 hp (447 kW), Terrain Leveler Attachments have ample power to grind through some of the...

Open the catalog to page 3
Terrain Leveler Brochure - 4

As regulation and liability increase, conventionalrock excavation methods of blasting and hammering are becoming processes of the past. The Terrain Leveler Attachment is designed to eliminate the need for primary crushers, large loaders, large mining haul trucks and associated permits, in addition to rippers and vertical drills. One Terrain Leveler Attachment can single-handedly perform site preparation and excavation, mine material, stabilize contaminated soil, and remove roads. Vermeer Terrain Leveler Attachments can provide required production rates ח without all of theassociated costs,...

Open the catalog to page 4
Terrain Leveler Brochure - 5

Welcome to the newest generation of Vermeer rock excavation equipment! Vermeer Terrain LevelerSurface Excavating Attachments produce consistent end-product suitable for use in most applications ח instantly in one pass and without primary crushing. Simplify your process get a Vermeer Terrain Leveler Attachment and go from the ground to a dump truck in fewer steps. Consistent material eliminates the need for primary crushers, large loaders, large haul trucks, and the associated permits to transport material to crushers; permits for blasting, and weather considerations. End material is...

Open the catalog to page 5
Terrain Leveler Brochure - 6

One machine, many jobs. There really is no other way to describe theVermeer Terrain Leveler Attachment. The attachment coupled with a Vermeer tractor ח can perform site preparation / excavation, mine material, stabilize contaminated soil, remove roads, crush rock and concrete, perform reclaiming, and more. Additionally, because the Terrain Leveler drum is an attachment, the base tractor can be switched back to a trenching boom for use on a variety of trenching projects. Get the Vermeer Terrain Leveler Surface Excavating Attachment advantage today! Road Construction / Reconstruction: Terrain...

Open the catalog to page 6
Terrain Leveler Brochure - 7

General General General General Weight:90,000 lb (40,823 kg)Overall length:396" (1005 cm) Transport width:101" (256 cm)w/ 20" (50 cm) grousers Transport height:131" (332 cm) Weight:125,000 lb (56,699 kg)Overall length:408" (1036 cm) Transport width:114" (289 cm) Transport height:135" (343 cm) Weight:135,000 lb (61,236 kg)Overall length:492" (1250 cm) Transport width:116" (294 cm) w/ 24" (61 cm) grousersTransport height:138" (351 cm) Weight:220,000 lb (99,792 kg) Overall length:487" (1236 cm)Transport width:134" (340 cm) w/ 30" (76 cm) grousersTransport height:147" (373 cm) Capabilities...

Open the catalog to page 7
Terrain Leveler Brochure - 8

Vermeer Manufacturing Company 1210 Vermeer Road EastP.O.Box 200Pella, Iowa 50219 U.S.A.Phone:(641) 628-3141Fax:(641) 621-7734International fax:+1 (641) 621-7730www.vermeer.com Call toll-free 1-888-VERMEER 1-888-837-6337 (U.S.A. only) Europe, Middle East and Africa: P.O.Box 3234460 AS GoesNetherlandsPhone:+31 113 272700Fax:+31 113 272727 > Vermeer Manufacturing Company reserves the right to make changes in engineering, design, and specifications;add improvements;or discontinue manufacturing at any time without notice or obligation.Equipment shown is for illustrative purposes only and may...

Open the catalog to page 8
