Quick Clip

Product catalog summary

Blade Retention System Overview
The Quick-Clip™ Blade Retention System is designed to save time and money by allowing for quick and easy replacement or reversal of disc-style cutting blades. This system is patented and features a threadless design, requiring only one tool for operation. It eliminates the need to lock down discs to prevent rotation, has a lower profile to reduce blade wear, and promotes clean cutting action. The system reduces the number of parts to handle, cutting replacement time and costs to less than 20 seconds per blade. It also increases the blade pivot surface area.

Specifications and Compatibility
The system is standard on all Vermeer disc-style mowers and mower conditioners, including 3-pt. Gator® Mowers, discpro® Mower Conditioners, and Rebel™ trailed Mowers. The exclusive 5mm blades are 20% thicker than competitors and are austemper heat-treated for longer wear. Upgrade kits are available for existing Vermeer mowers.

Product Models and Technical Specifications

Gator® Mowers: Models 5030, 6030, 7030, and 8030 with cutting widths ranging from 6'9" to 10'6". Horsepower requirements range from 45 to 80 hp, with single-acting hydraulic requirements.
Trailed Mowers: Models TM700 and TM800 with cutting widths of 9'2" and 10'6". Horsepower requirements are 55 hp and 60 hp, respectively, with options for single or dual hydraulic work ports.
Mower Conditioners: Models MC840 and MC1030 with cutting widths of 10'6" and 13'3". Horsepower requirements are 75 hp and 100 hp, respectively, with dual auxiliary hydraulic remotes.

Company Information
Vermeer Manufacturing Company, headquartered in Pella, Iowa, is a family-owned business founded in 1948. It manufactures and markets approximately 100 different agricultural and industrial products worldwide. The company emphasizes strong parts and service support to meet the needs of hay producers facing tight schedules and varying field conditions.

Catalog excerpts

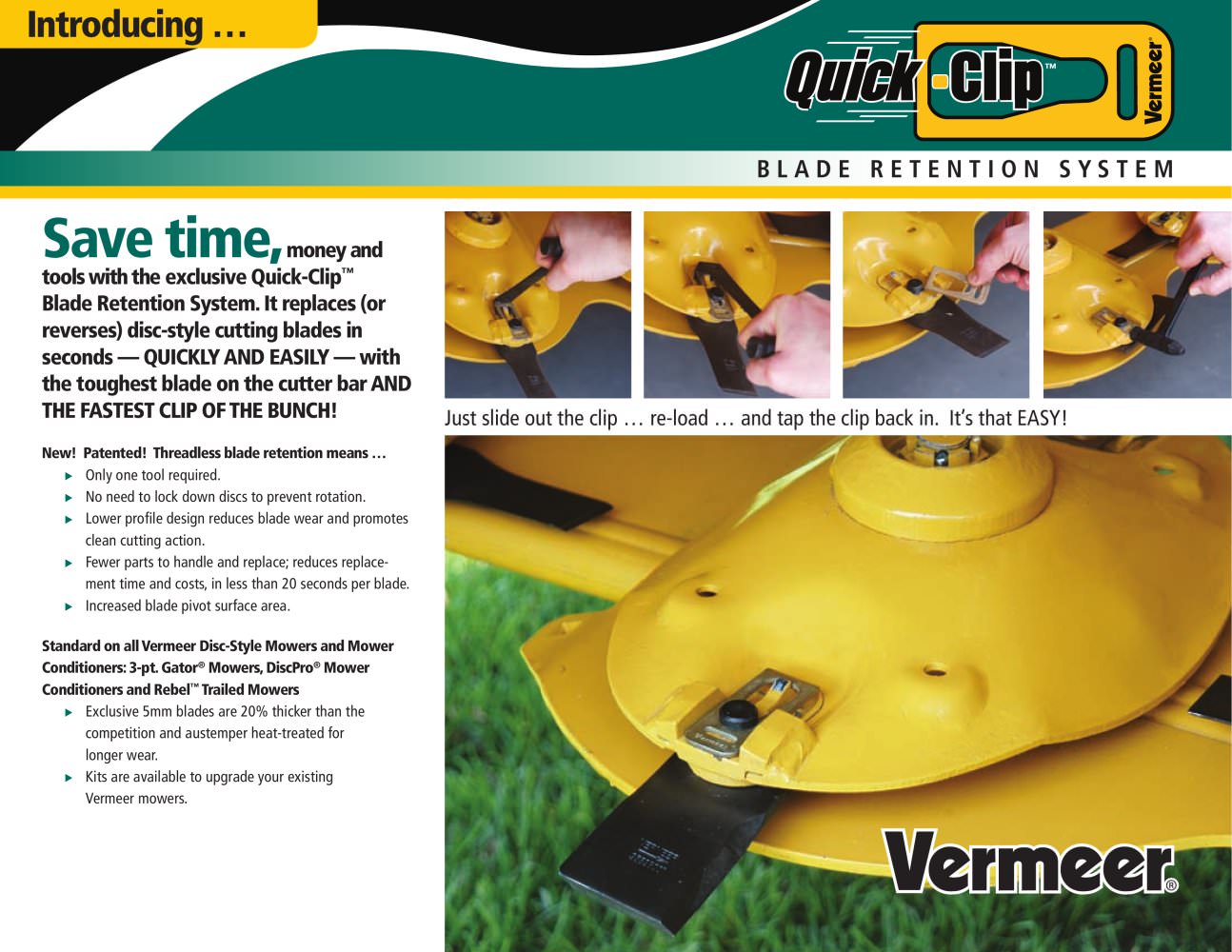

New! Patented! Threadless blade retention means ҅ Only one tool required. No need to lock down discs to prevent rotation. Lower profile design reduces blade wear and promotes clean cutting action. Fewer parts to handle and replace; reduces replace-ment time and costs, in less than 20 seconds per blade. Increased blade pivot surface area. Standard on all Vermeer Disc-Style Mowers and Mower Conditioners: 3-pt. Gator > Mowers, DiscPro > ή Mower Conditioners and Rebel > Trailed Mowers Exclusive 5mm blades are 20% thicker than the competition and austemper heat-treated for longer wear. Kits are available to upgrade your existing Vermeer mowers. >

Open the catalog to page 1

Cutting height: 1.25 (32mm); Drive: 540 rpm; PTO speed (std.): 540 rpm; Flow rate: 6 gpm (min) (22.7 L/min); Cutting height: 1.25Ԕ - 6.5 (32 Ԗ 165 mm); Drive: 4 band 5V Belt; PTO speed (std.): 540 rpm MC840; 1000 rpm MC1030; > Conditioner: Steel Roller or V-Tine MC840; Steel Roller or Spring Steel Paddle MC1030 > Note: All models require enclosed tractor cab with ROPS Cutting height: 1.25" (32mm), 3.88" (99mm) w/opt topping shoe; Drive: PTO to V-belt to gearbox; PTO speed (std.): 540 rpm; Hitch : 3-pt., Category II; Flow rate: 6 gpm (min) 22.67 liters/m; > VERMEER, VERMEER logo, DiscPro Quick-Clip...

Open the catalog to page 2
