Multimat™ I Multimedia Filters

Multimat™ I Multimedia Filters

Multimat™ I Multimedia Filters

Product catalog summary
Overview
Multimat™ I is a series of multimedia filters designed for industrial and municipal applications, offering double and triple layer configurations. These filters are capable of handling flow rates from 1.5 to 24.5 m3/hr.
Features & Benefits
  • Double and triple layer filters utilize anthracite, sand, and garnet (in triple layer) for effective removal of turbidity and suspended solids.
  • High filtration velocity with reduced pressure loss and extended intervals between backwashes compared to single layer filters.
  • Equipped with a compact PLC for easy operation and monitoring.
  • Constructed with a plastic tank that is corrosion-free, lightweight, and robust.
Applications
  • Suitable for borehole and surface water treatment.
  • Used in industrial process water and as pretreatment to reverse osmosis (RO) systems.
Related Services
Veolia offers local after-sales service and support, including preventative and corrective maintenance programs to ensure efficient long-term operation.
Optional Enhancements
Hydrex® 3000 and 6000 water treatment chemicals can be used to enhance filtration performance.
System Performance
  • Double Layer Filters: Flow rates range from 1.5 to 18.4 m3/hr with backwash connections varying by model.
  • Triple Layer Filters: Flow rates range from 2.1 to 24.5 m3/hr, incorporating additional garnet layers for enhanced filtration.
System Dimensions
Dimensions vary by model, with widths ranging from 800 mm to 1550 mm and heights from 1914 mm to 2302 mm.
Material Specifications
  • Piping is made from uPVC (food grade).
  • Vessel material is polyamide.
Operational Parameters
  • Maximum Operating Pressure: 6 bar
  • Maximum Operating Temperature: 40°C
  • Electrical Supply: 220V, 50Hz
For higher flow rate applications, consultation with Veolia Water Solutions & Technologies is recommended.
See more

Catalog excerpts

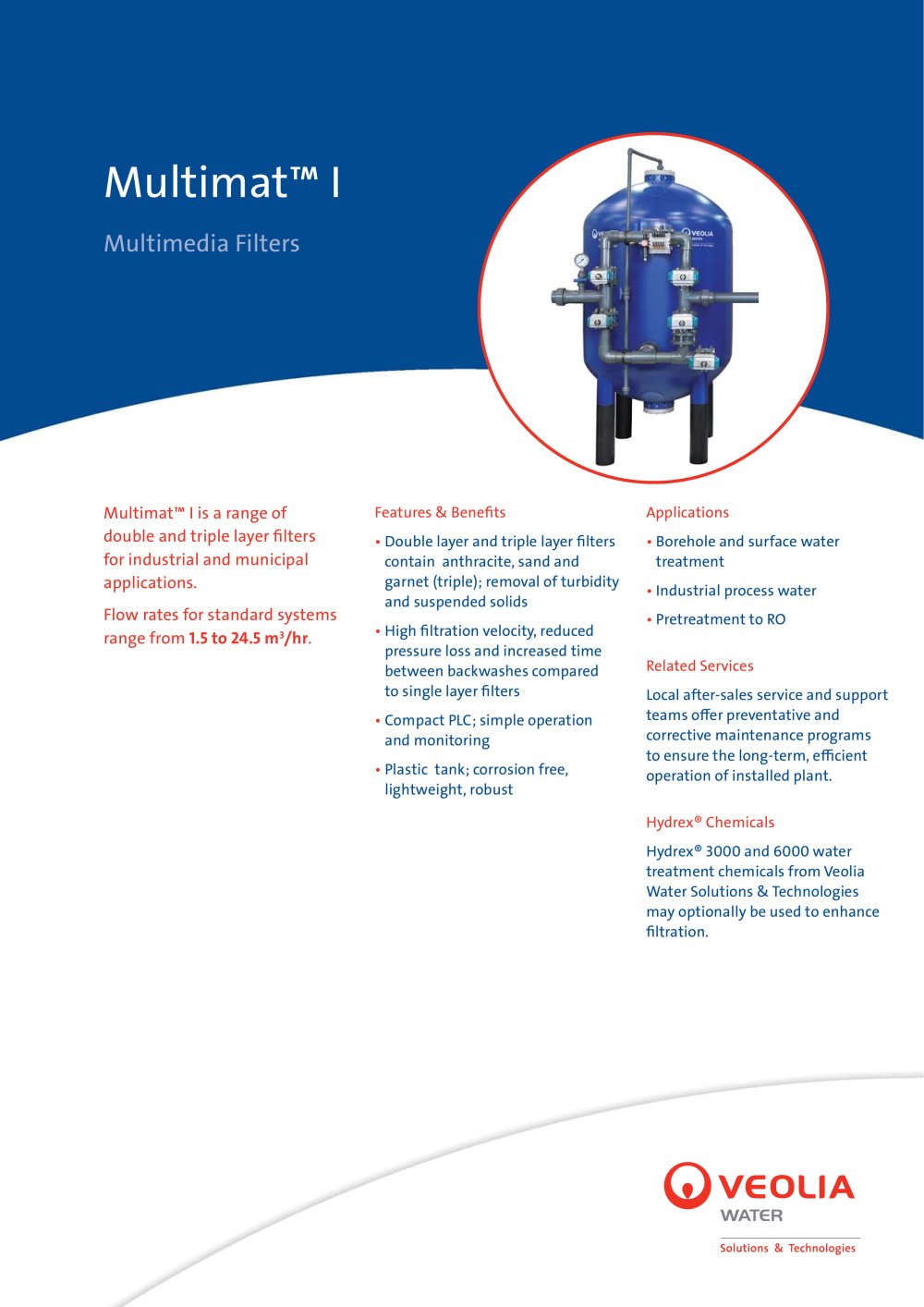

Multimat™ I Multimedia Filters-1

Multimat™ I Multimedia Filters Multimat™ I is a range of double and triple layer filters for industrial and municipal applications. Flow rates for standard systems range from 1.5 to 24.5 m3/hr. Features & Benefits • Double layer and triple layer filters contain anthracite, sand and garnet (triple); removal of turbidity and suspended solids • High filtration velocity, reduced pressure loss and increased time between backwashes compared to single layer filters • Compact PLC; simple operation and monitoring • Plastic tank; corrosion free, lightweight, robust Applications • Borehole and surface water treatment • Industrial process water • Pretreatment to RO Related Services Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant. Hydrex® Chemicals Hydrex® 3000 and 6000 water treatment chemicals from Veolia Water Solutions & Technologies may optionally be used to enhance filtration.
