Multimat™ Duo - Filtres multimédia

Multimat™ Duo - Filtres multimédia

Multimat™ Duo - Filtres multimédia

Product catalog summary
Overview
Multimat™ Duo is a water filtration system that combines double and triple layer filters with chemical treatment to produce high-quality water. It is available in plastic and carbon steel vessels, catering to different flow rates.

Features & Benefits
  • Double and triple layer filters use anthracite, sand, and garnet to remove turbidity and suspended solids.
  • High filtration velocity with reduced pressure loss and increased time between backwashes compared to single layer filters.
  • Compact PLC for simple operation and monitoring.
  • Durable tanks made from plastic or epoxy-coated steel.

Applications
  • Borehole and surface water treatment.
  • Industrial process water.
  • Pretreatment for reverse osmosis (RO).

Related Services
Veolia offers local after-sales service and support, including preventative and corrective maintenance programs.

Hydrex® Chemicals
Optional use of Hydrex® 3000 and 6000 chemicals to enhance filtration.

Operation Specifications
  • Maximum Operating Pressure: 6 bar
  • Maximum Operating Temperature: 40°C

System Performance
The system offers various models with flow rates ranging from 2.1 to 141.4 m3/hr. Each model specifies minimum, maximum, and nominal flow rates, connection sizes, and backwash flow times.

System Dimensions
Dimensions and weights are provided for each model, detailing width, depth, height, and weight.

Material Specifications
  • Piping: uPVC (food grade) or stainless steel.
  • Vessel: Polyamide or epoxy-coated carbon steel.

Electrical Supply
220V, 50Hz
See more

Catalog excerpts

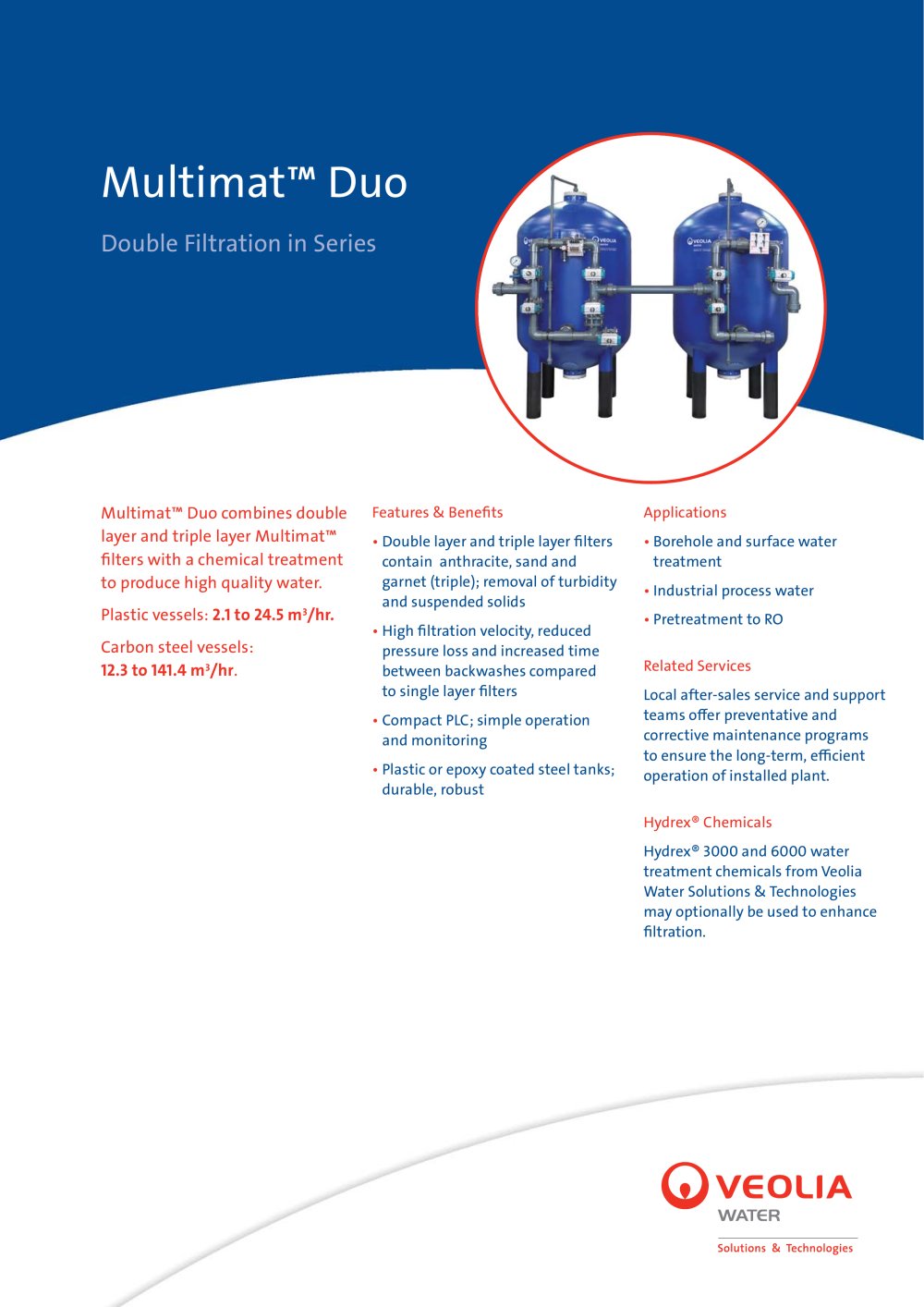

Multimat™ Duo - Filtres multimédia -1

Multimat™ Duo Double Filtration in Series Multimat™ Duo combines double layer and triple layer Multimat™ filters with a chemical treatment to produce high quality water. Plastic vessels: 2.1 to 24.5 m3/hr. Carbon steel vessels: 12.3 to 141.4 m3/hr. Features & Benefits • Double layer and triple layer filters contain anthracite, sand and garnet (triple); removal of turbidity and suspended solids • High filtration velocity, reduced pressure loss and increased time between backwashes compared to single layer filters • Compact PLC; simple operation and monitoring • Plastic or epoxy coated steel tanks; durable, robust Applications • Borehole and surface water treatment • Industrial process water • Pretreatment to RO Related Services Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant. Hydrex® Chemicals Hydrex® 3000 and 6000 water treatment chemicals from Veolia Water Solutions & Technologies may optionally be used to enhance filtration.

 Open the catalog to page 1
