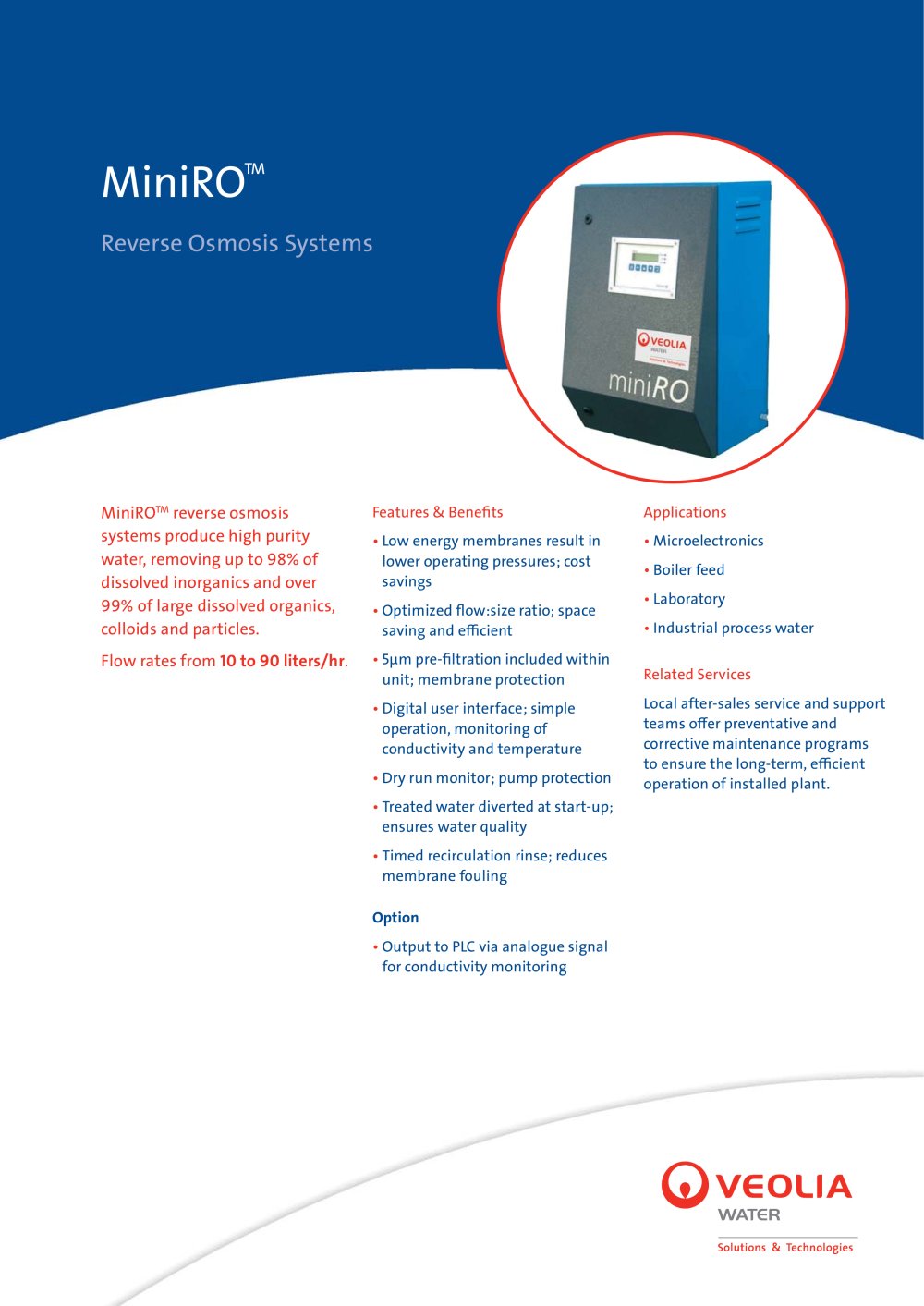

MiniROTM Reverse Osmosis Systems MiniROTM reverse osmosis systems produce high purity water, removing up to 98% of dissolved inorganics and over 99% of large dissolved organics, colloids and particles. Flow rates from 10 to 90 liters/hr. Features & Benefits • Low energy membranes result in lower operating pressures; cost savings • Optimized flow:size ratio; space saving and efficient • 5ìm pre-filtration included within unit; membrane protection • Digital user interface; simple operation, monitoring of conductivity and temperature • Dry run monitor; pump protection • Treated water diverted at start-up; ensures water quality • Timed recirculation rinse; reduces membrane fouling Option • Output to PLC via analogue signal for conductivity monitoring Applications • Microelectronics • Boiler feed • Laboratory • Industrial process water Related Services Local after-sales service and support teams offer preventative and corrective maintenance programs to ensure the long-term, efficient operation of installed plant.

MiniROTM System Performance Model 10-15 EP 10-40 EP 10-80 EP Nominal Flows at 12°C* Permeate l/hr 10-20 30-45 60-90 Feed l/hr 40 90 170 Typical Salt Rejection % 96-98 96-98 96-98 Pump Motor Size kW 0.25 0.25 0.25 *Flow rates are dependent on feed water quality, those quoted are typical values based on 1000 ppm TDS & SDI <3. System Dimensions Model 10-15 EP 10-40 EP 10-80 EP Height mm 697 697 697 Depth mm 380 380 380 Width mm 450 450 450 Weight kg 30 32 35 Feed Water Supply Quality Potable water free from organic contamination, chlorine and suspended matter. Softening may be required for hard...
